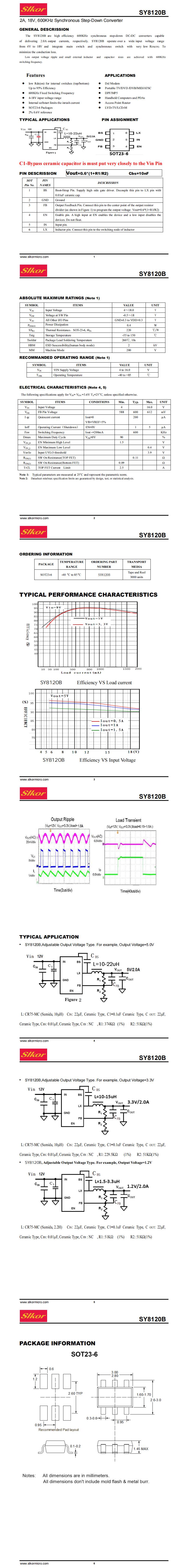

2A, 18V, 600KHz Synchronous Step-Down Converter

Description

l The SY8120B are high efficiency 600KHz synchronous step-down DC-DC converters capable of delivering 2.0A output currents, respectively. SY8120B operate over a wide input voltage range from 4V to 18V and integrate main switch and synchronous switch with very low RDS(ON) To minimize the conduction loss.

l Low output voltage ripple and small external inductor and capacitor sizes are achieved with 600KHz switching frequency.

Features

l low Rds(on) for internal switches (top/bottom) Up to 95% Efficiency

l 600KHz Fixed Switching Frequency

l 4-18V input voltage range

l Internal softstart limits the inrush current

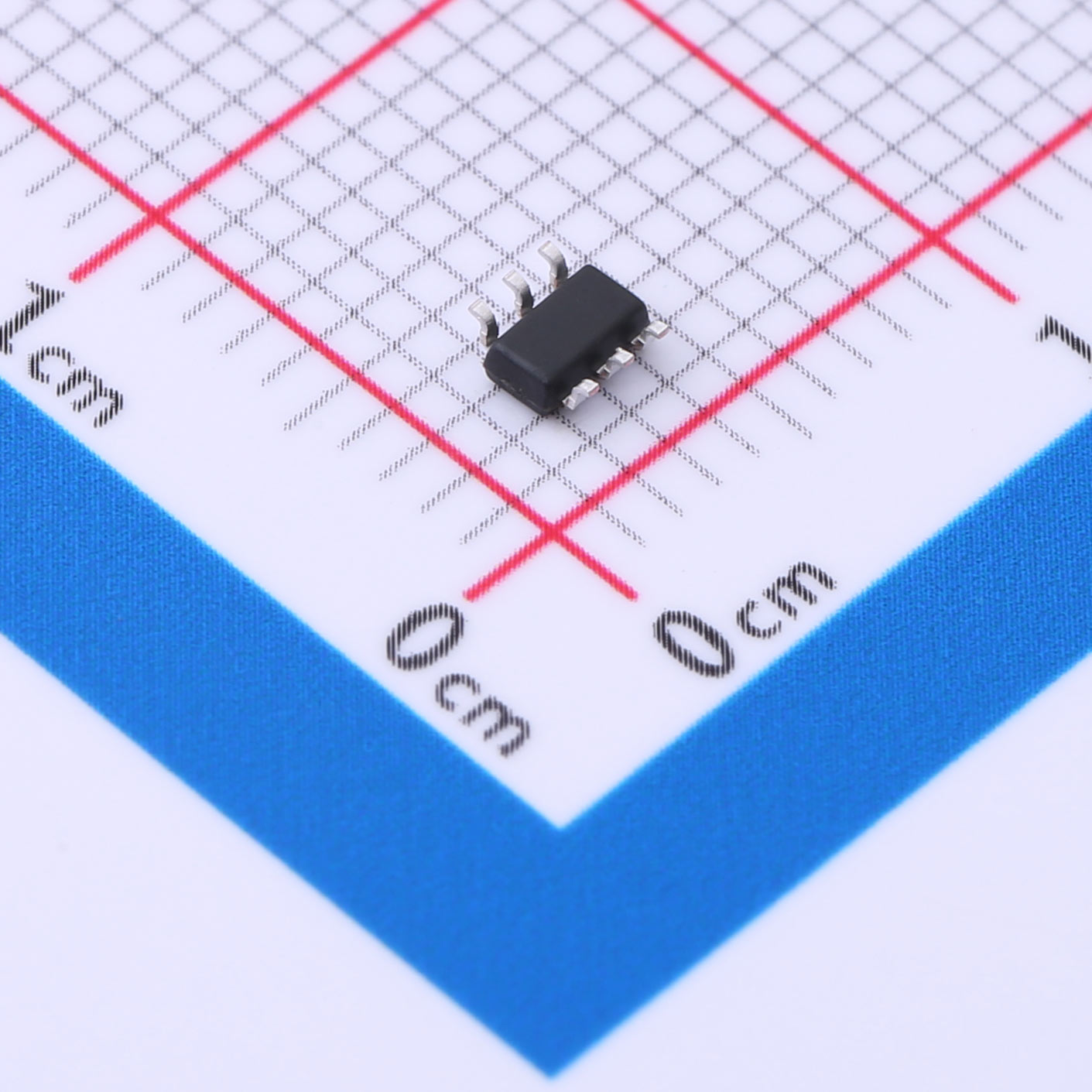

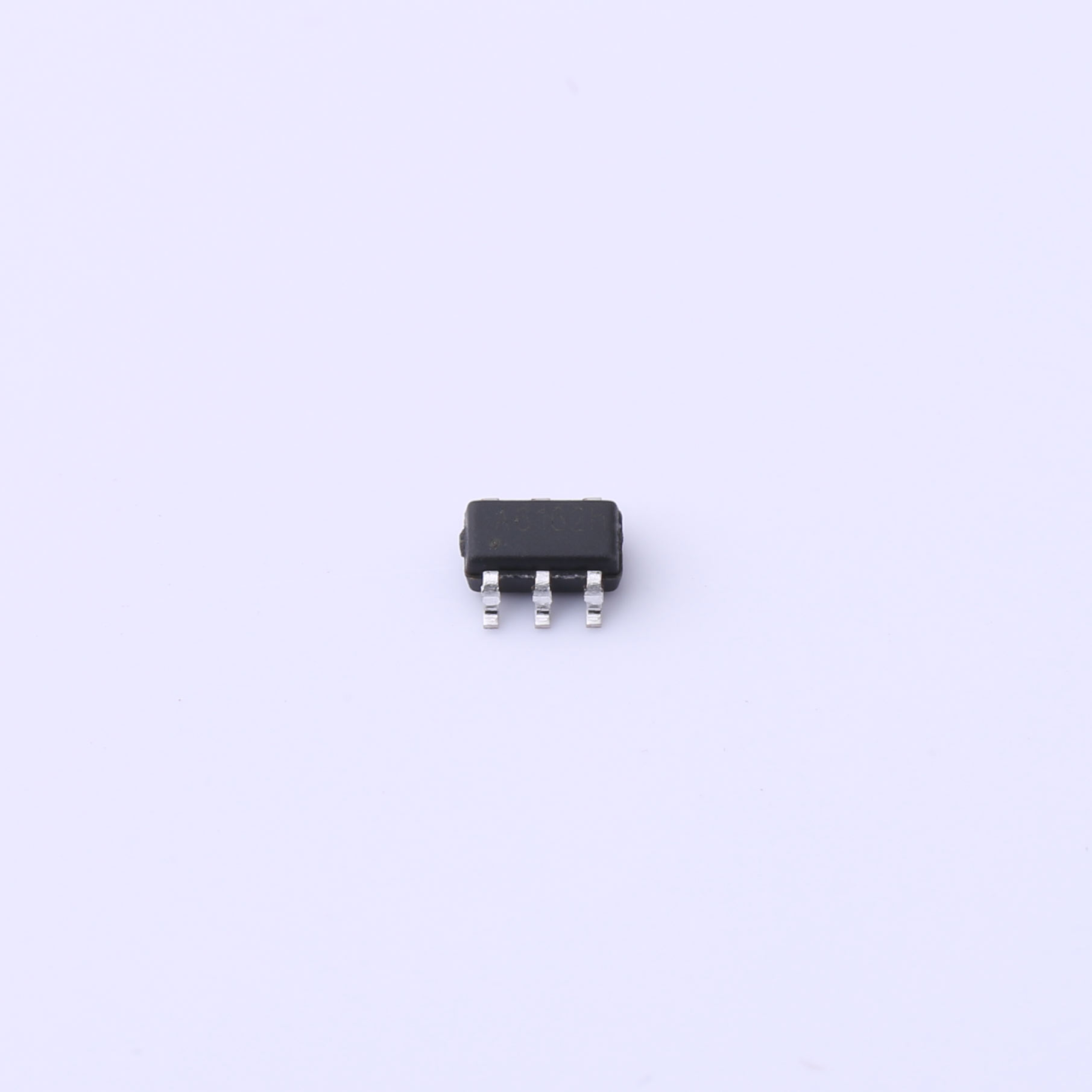

l SOT23-6 Packages

l 2% 0.6V reference

Application

l Dsl Modem

l Portable TV/DVD /DVB/MID/ATSC

l DPF/MP5

l Handheld Computers and PDAs

l Access Point Router

l LVD-TV/LCD-M
