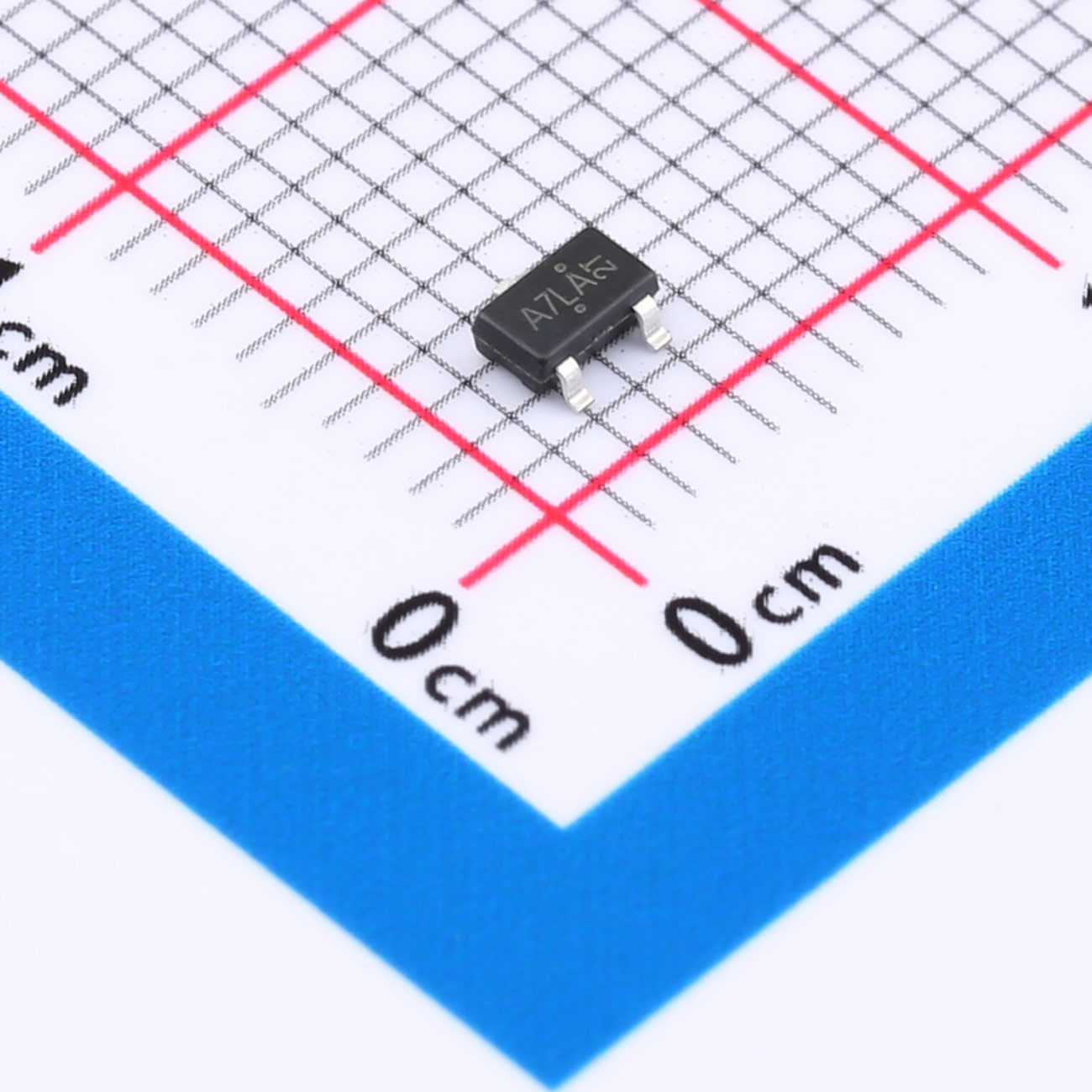

General Description
The SL2307 uses advanced trench technology to provide excellentRps(ony with low gate charge. This device is suitable for use as a loadswitch or in PwM applications.
Maximum ratings (T=25'℃unless otherwise noted)
| Parameter | Symbol | Value | Units |
| Drain-Sourcevoltage | VDS | -30 | V |
| Gate-SourceVoltage | VGS | ±20 | V |
| ContinuousDrainCurrent | ID | -4.1 | A |
| DrainCurrent-Pulsed | IDM | -20 | A |
| PowerDissipation | PD | 300 | mW |
| ThermalResistancefromJunctiontoAmbient | RθJA | 417 | ℃/W |
| JunctionTemperature | TJ | 150 | ℃ |
| StorageTemperature | TSTG | -55~+150 | ℃ |
