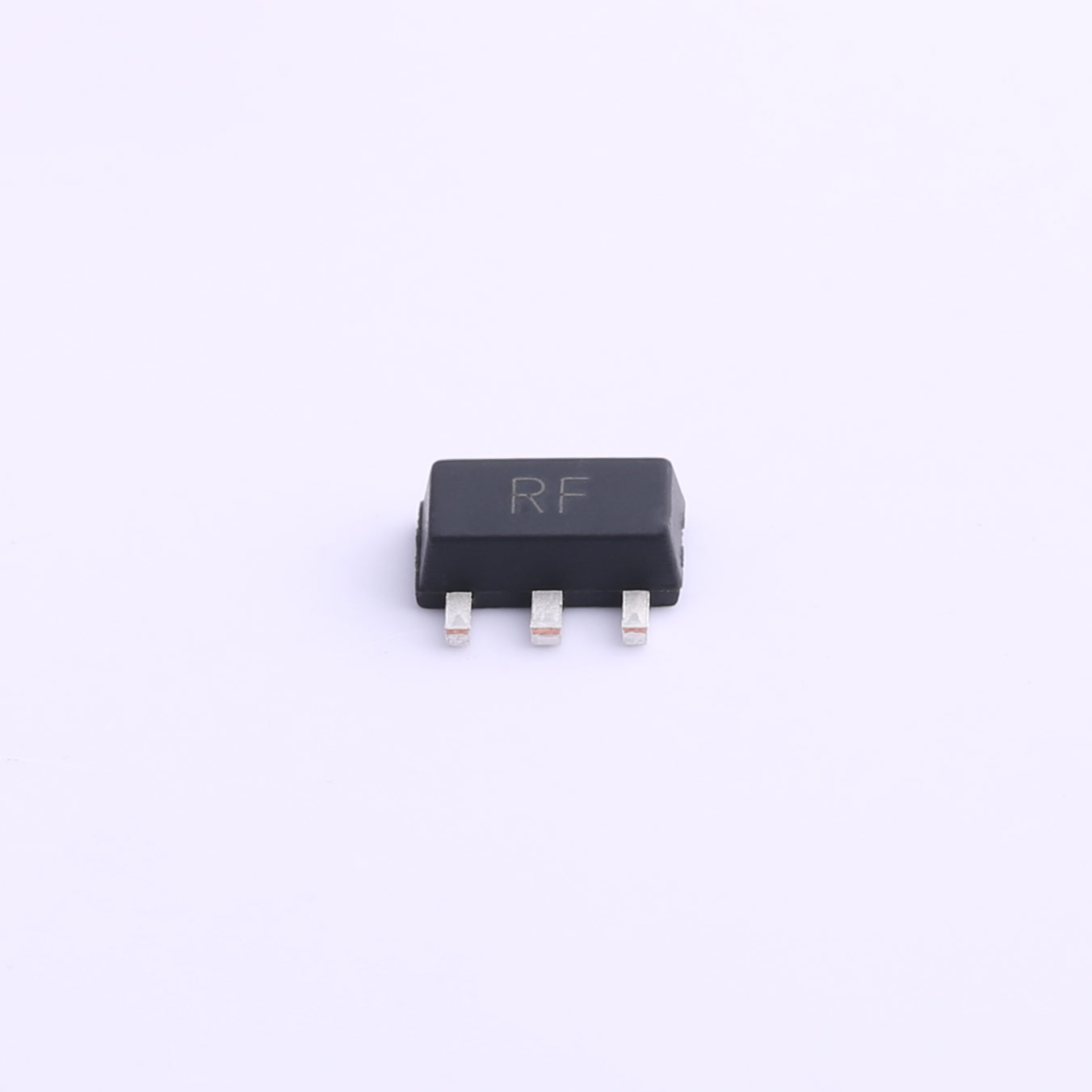

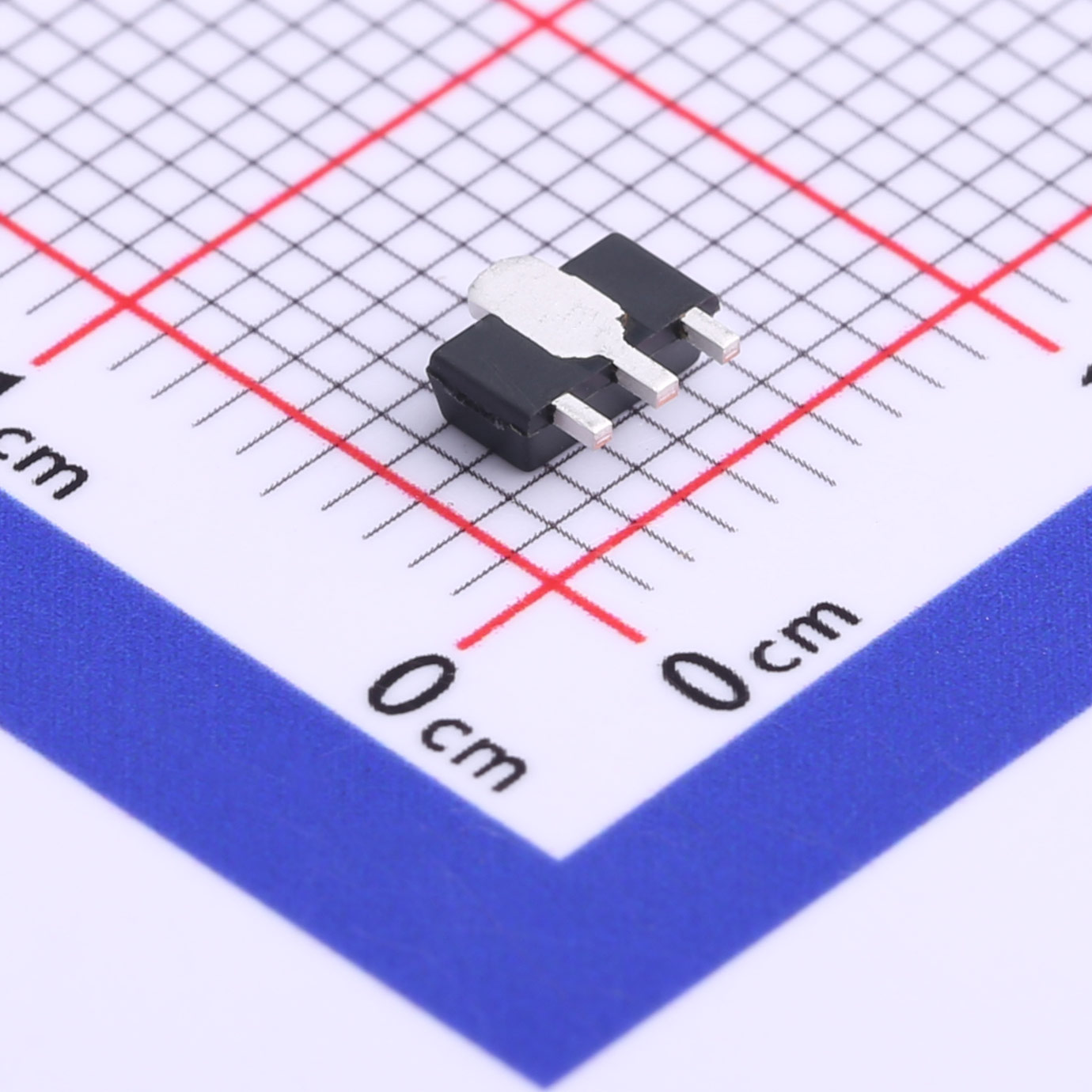

Slkor offers alternative replacement - 2SC3357 - for TECH PUBLIC 2SC3357 NPN Bipolar Transistor
Type:NPN
Vceo:12V
Ic:100mA
Pd:1200mW
fT:6.5GHz
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Slkor alternative equivalents to TECH PUBLIC.
TECH PUBLIC | Slkor Replacements | ||
Part Number | Part Number | Product Category | Package |
2SC3357 | 2SC3357 | Transistors | SOT-89 |
NPN High-Frequency Low-Noise Transistor
Description
The 2SC3357 is a UHF low-noise transistor that adopts a planar NPN silicon-epitaxial
bipolar process. It features high-power gain, low noise figure, wide dynamic range and
perfect current linearity. Being packaged with SOT-89, the transistor is mainly used in
VHFUHF and CATV low-noise amplifiers with high-frequency broadband.
Key Features
● High Gain:︱S21e︱2 Type Value:10dB @ VCE=10V,IC=20mA,f=1GHz
● Low Noise Figure: NF Type Value:1.7dB @ VCE=10V,IC=7mA, f=1GHz
● Gain-Bandwidth Product fT Type Value: 6.5GHz @ VCE=10V,IC=20mA,f=1GHz
