Features

• BV_CEO>60V


• lc = 5A High Continuous Current

• R_SAT = 30mΩ for a Low Equivalent On-Resistance

• Low Saturation Voltage VCE(SAT)< 65mV @ lc= 1A


• h_FE Specifed Up to 10A for High Curent Gain Hold Up


• Lead-Free Finish; RoHs Compllant (Notes 1 & 2)


• Halogen and Antimony Free. "Green" Device (Note 3)


• PPAP Capable (Note 4)



Features

• Emergency Lighting Circuits

• Motor Driving (including DC Fans)

• Backlight Inverters

• Power Switches


• Gate Driving MOSFETs and IGBTs


Mechanical Data

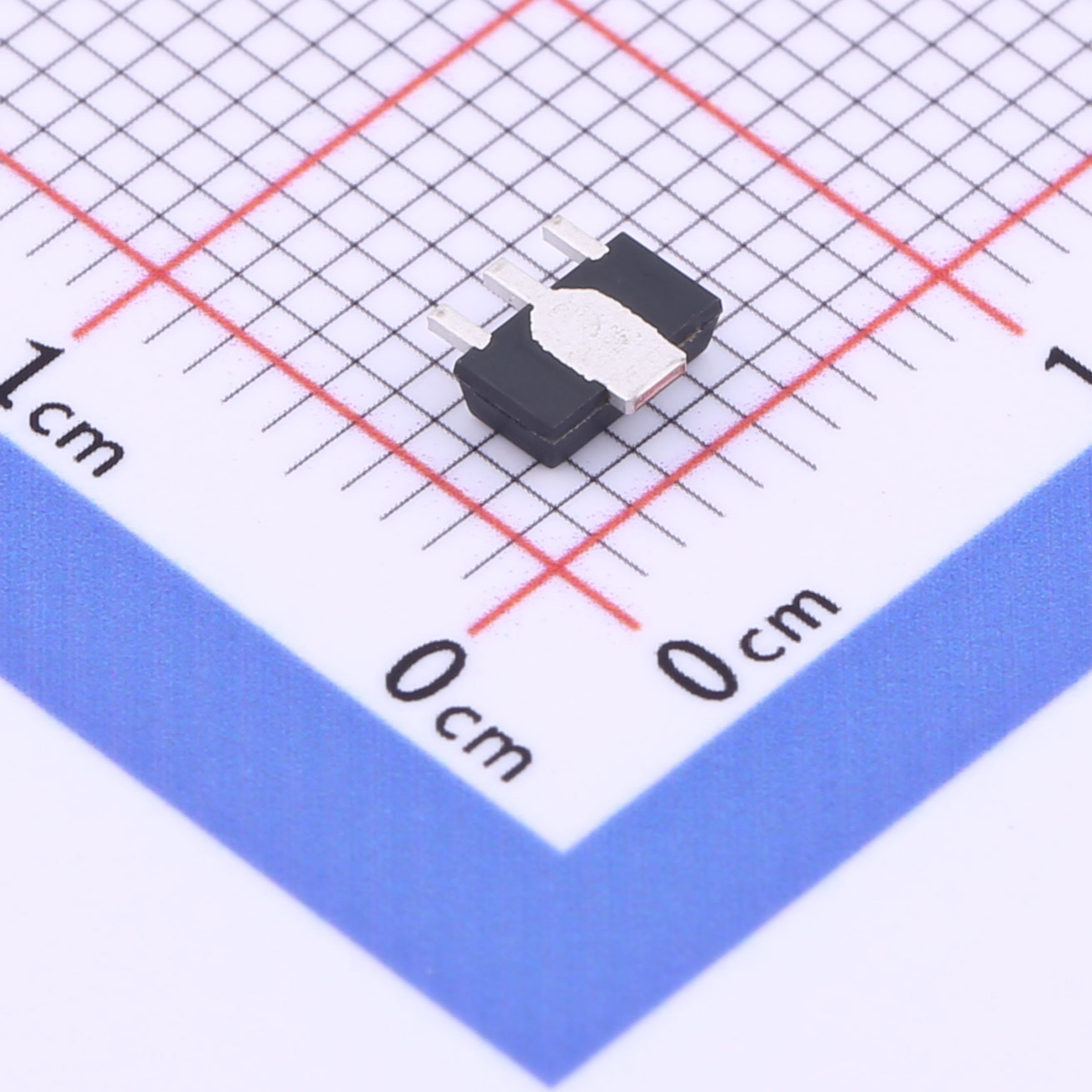

• Case: SOT89

• Case Material: Molded Plastic. "Green" Molding Compound.UL Flammability Rating 94V-0

• Moisture Sensitivity: Level 1 per J-SD-020

• Weight: 0.05 grams (Approximate)
