SLESD5451N ESD Protection Diode DFN1006 SLESD5451N ESD Protection Diode DFN1006 SLESD5451N ESD Protection Diode DFN1006

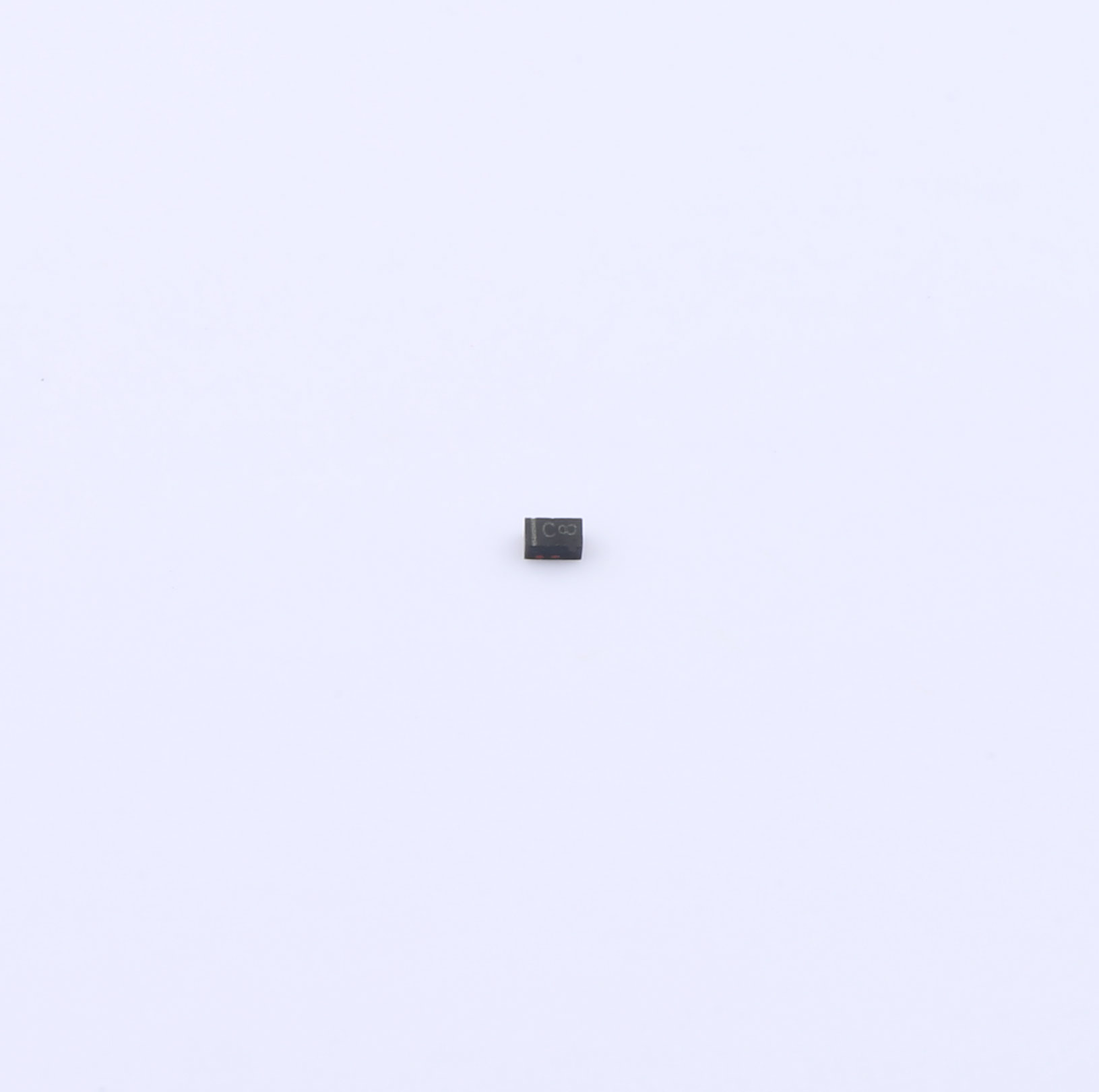

SLESD5451N ESD Protection Diode DFN1006
VESD: ±25 KV
VC(max): 10V (IPP=1A, tP =8/20µs)
VRWM(max): 5.0V
VBR(max): 8.4V
IR(max): 0.1 µA
IPPM(max): 5A
CJ: 18 pF
PPP(max): 60W

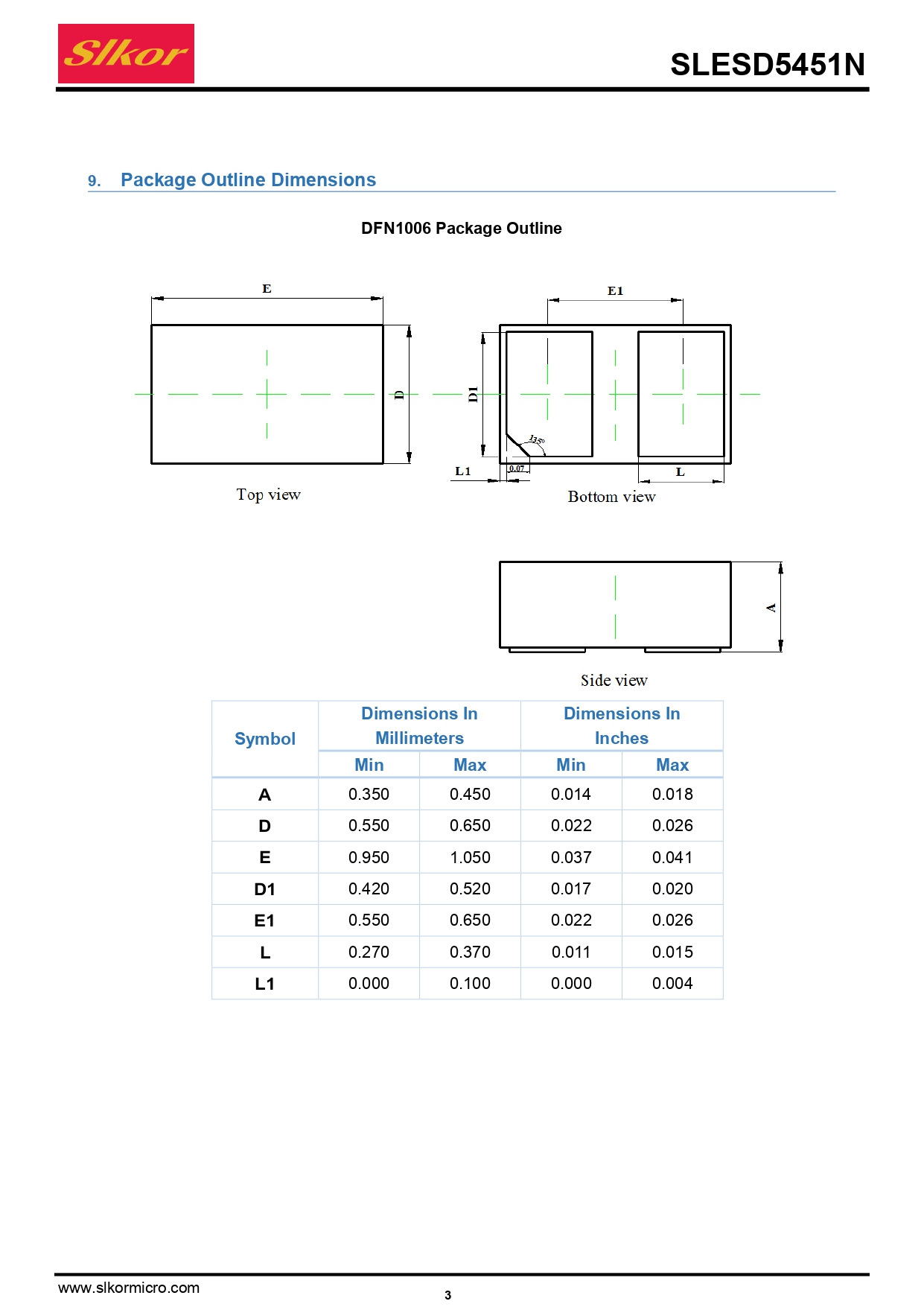

Package: DFN1006

Product Details

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

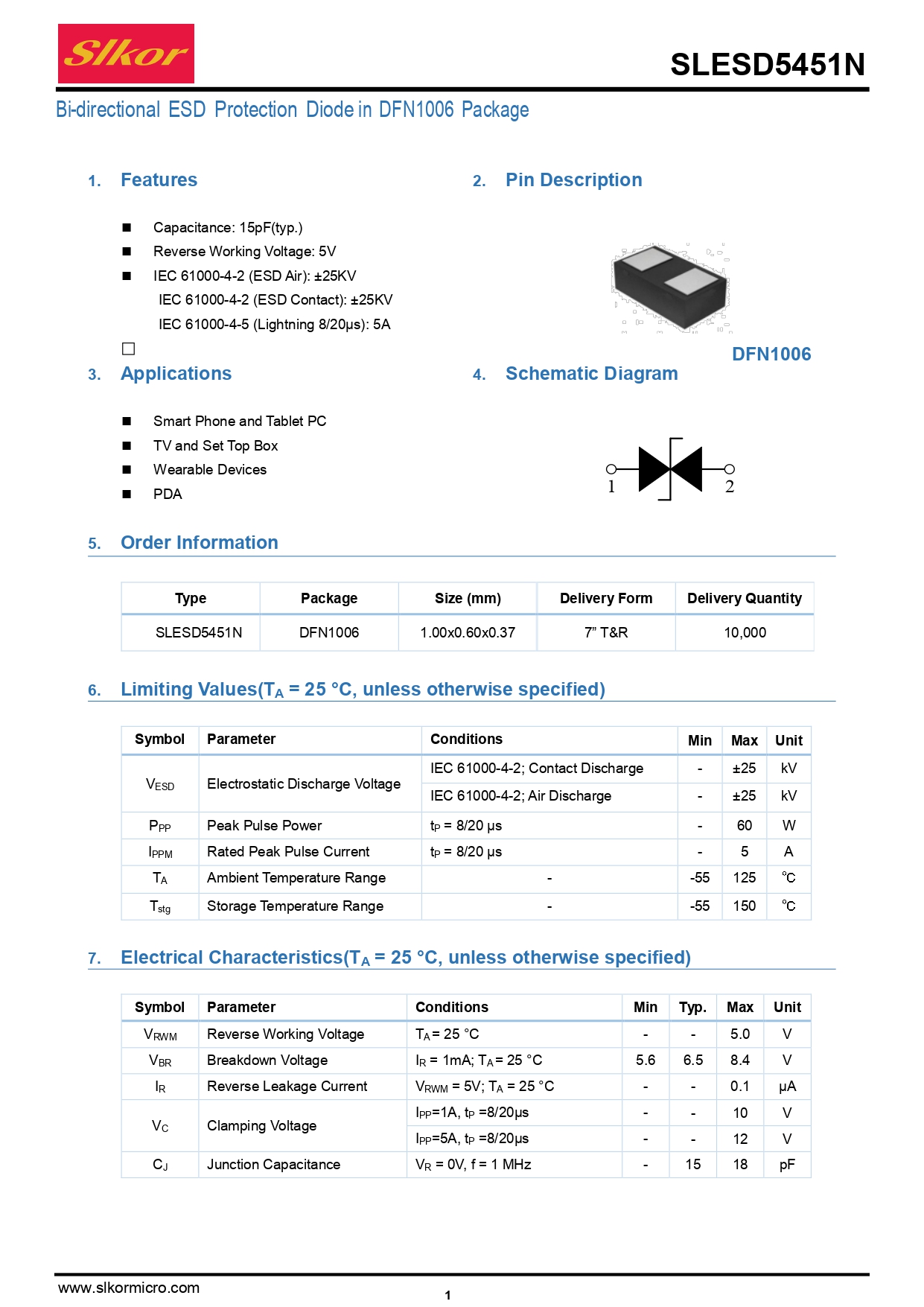

Description

The SLESD5451N is an advanced Electrostatic Discharge (ESD) protection device designed in a DFN1006 package. This device is specifically engineered to protect sensitive electronic circuits from electrostatic discharge events, ensuring robust performance and reliability in various applications. Its compact DFN1006 package enables integration into densely populated circuit boards while providing effective ESD protection.


Features

●Capacitance: 15pF(typ.)

Reverse Working Voltage: 5V

IEC 61000-4-2 (ESD Air): ±25KV

IEC 61000-4-2 (ESD Contact): ±25KV

IEC 61000-4-5 (Lightning 8/20µs): 5A


Applications

Smart Phone and Tablet PC

TV and Set Top Box

Wearable Devices

PDA
