SLESD0501BU ESD Protection Diode DFN1006 SLESD0501BU ESD Protection Diode DFN1006 SLESD0501BU ESD Protection Diode DFN1006
SLESD0501BU ESD Protection Diode DFN1006

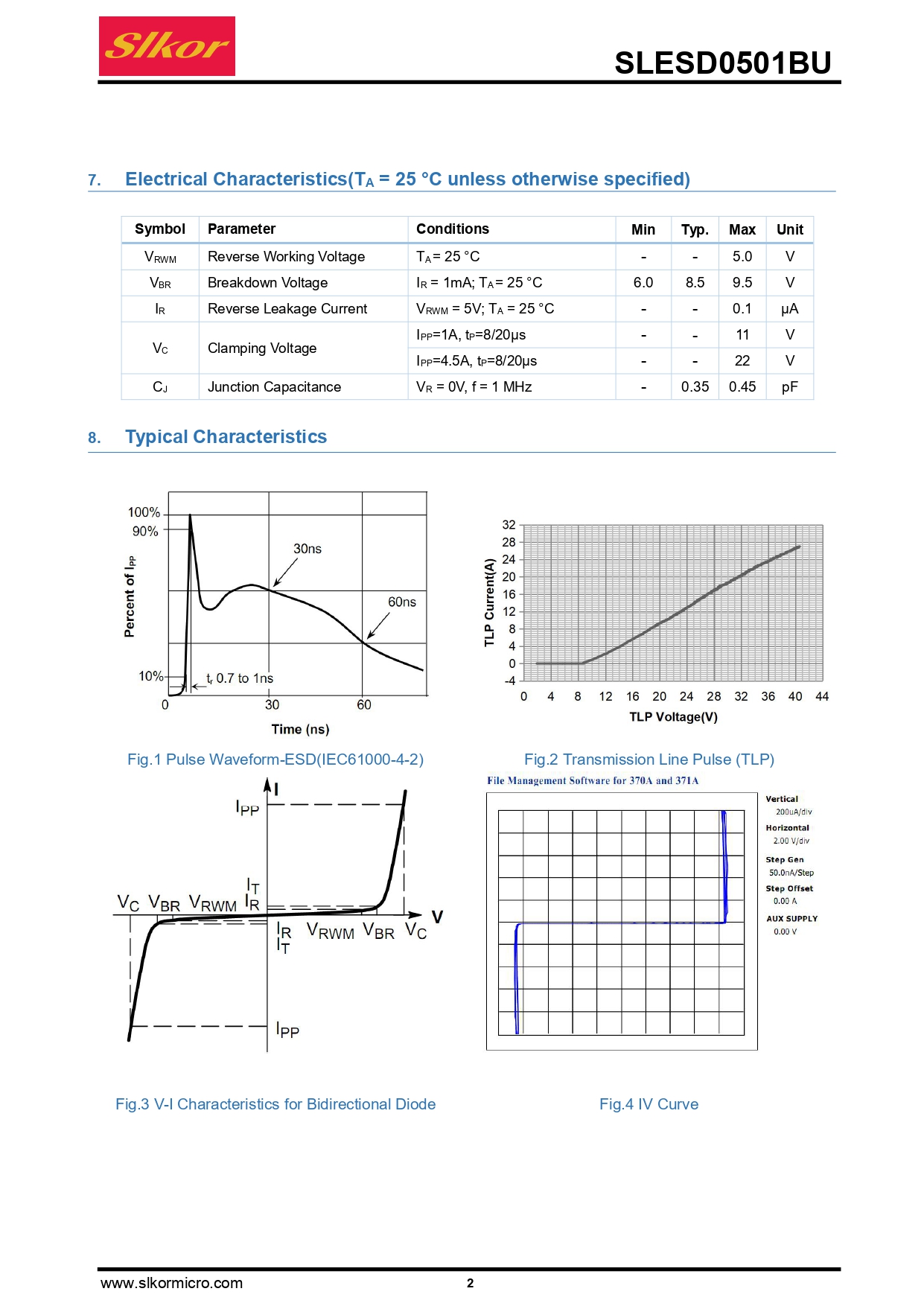

VRWM (Max): 5V
VBR(Max):  9.5V
IR(Max): 0.1uA
VC(Max): 11V (IPP=1A, tP=8/20µs)
CJ(Max): 0.45pF

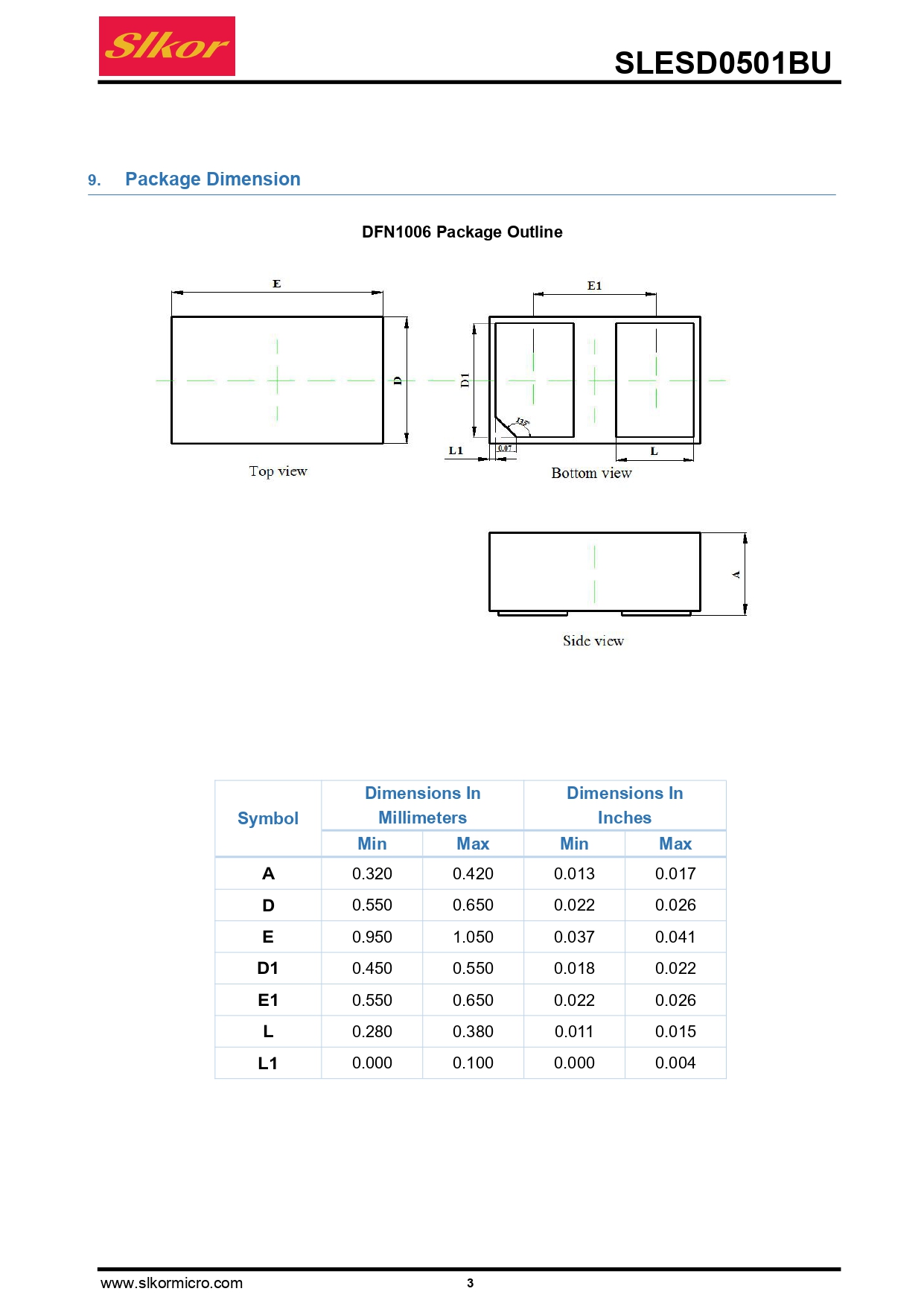

Package: DFN1006

Product Details

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.


Description

The SLESD0501BU is an advanced Electrostatic Discharge (ESD) protection device housed in a DFN1006 package. Designed to mitigate the effects of electrostatic discharge on sensitive electronic circuits, this device offers robust protection in a compact form factor suitable for integration into modern electronic designs.

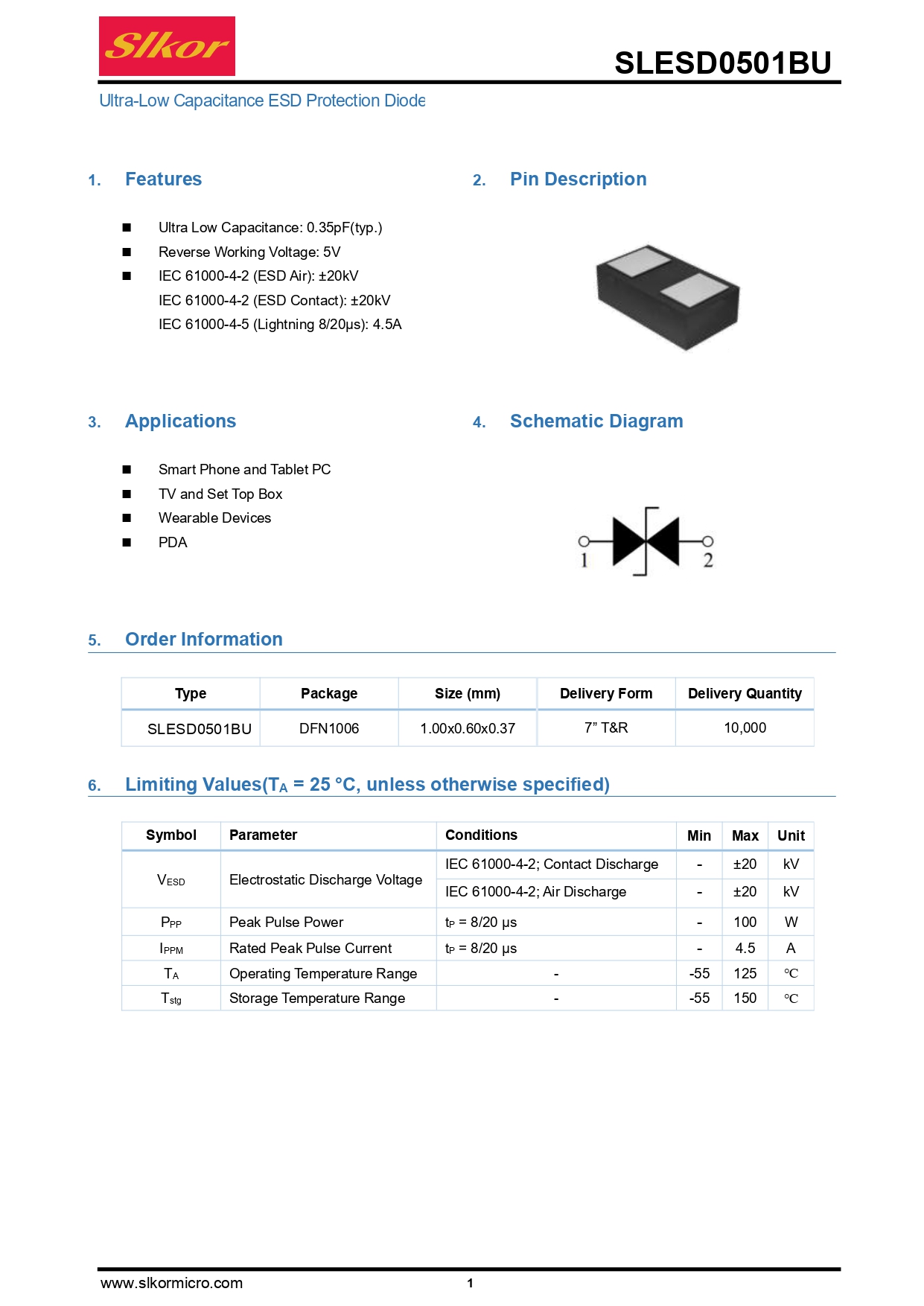

Features

●Ultra Low Capacitance: 0.35pF(typ.)

Reverse Working Voltage: 5V

IEC 61000-4-2 (ESD Air): ±20kV

IEC 61000-4-2 (ESD Contact): ±20kV

IEC 61000-4-5 (Lightning 8/20µs): 4.5A


Applications

Smart Phone and Tablet PC

TV and Set Top Box

Wearable Devices

PDA
