SD05 ESD Protection Diode SOD-323 SD05 ESD Protection Diode SOD-323 SD05 ESD Protection Diode SOD-323

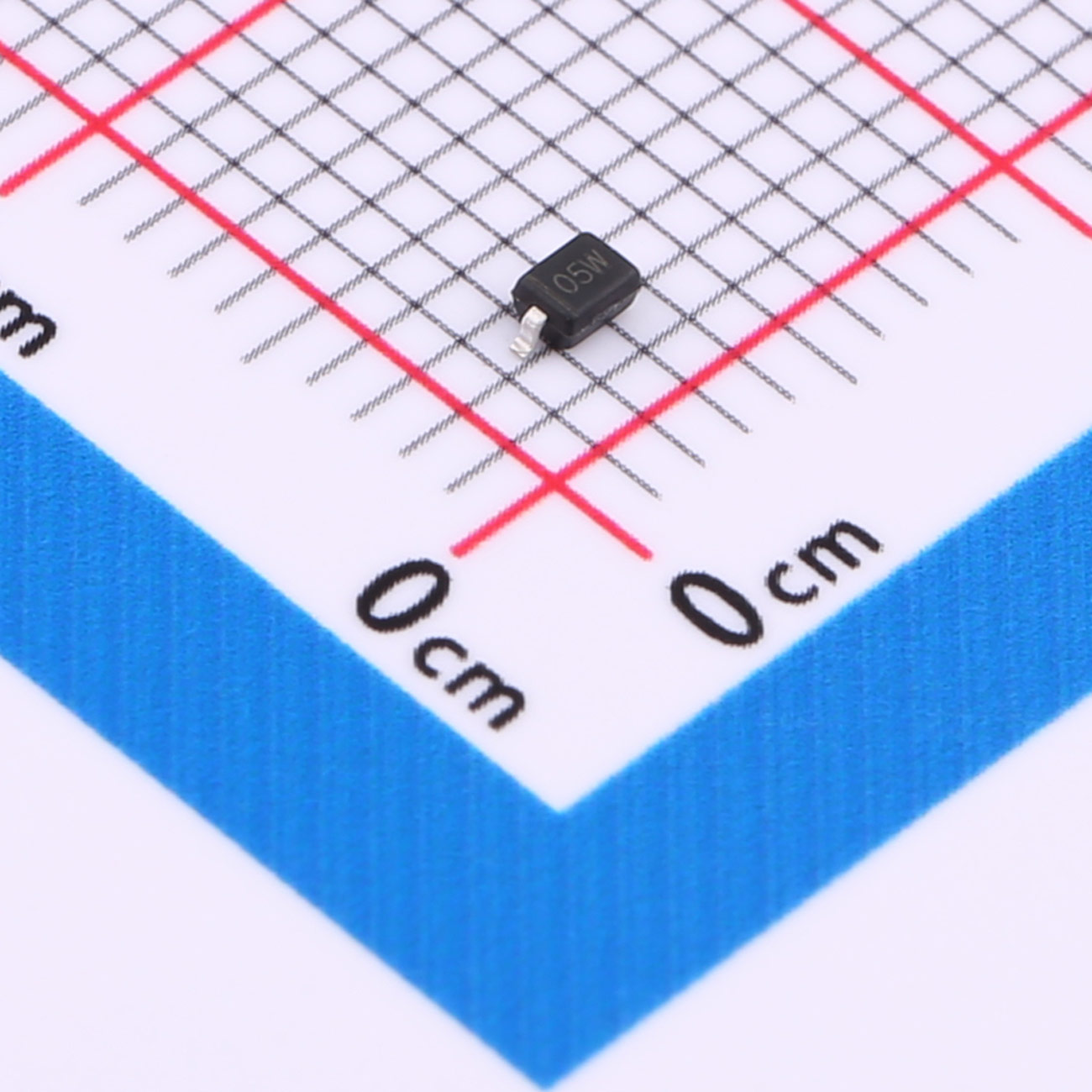

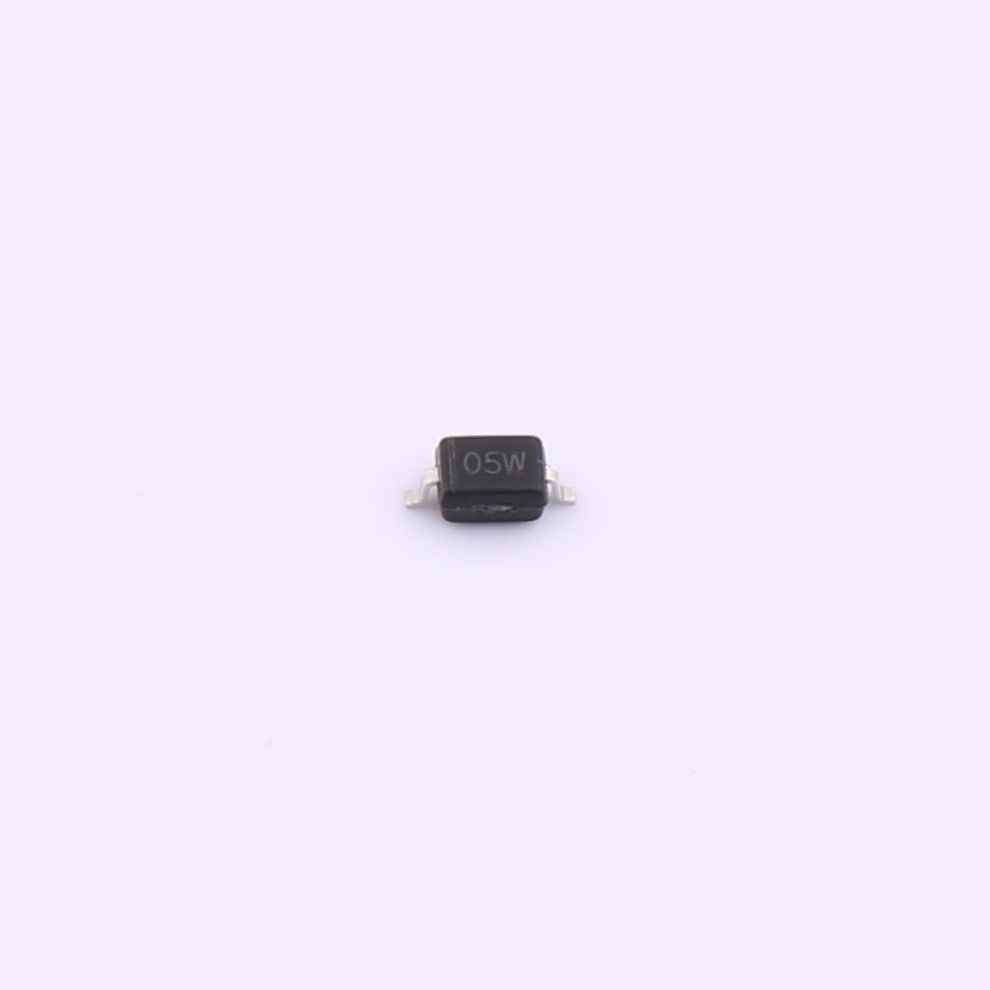

SD05 ESD Protection Diode SOD-323

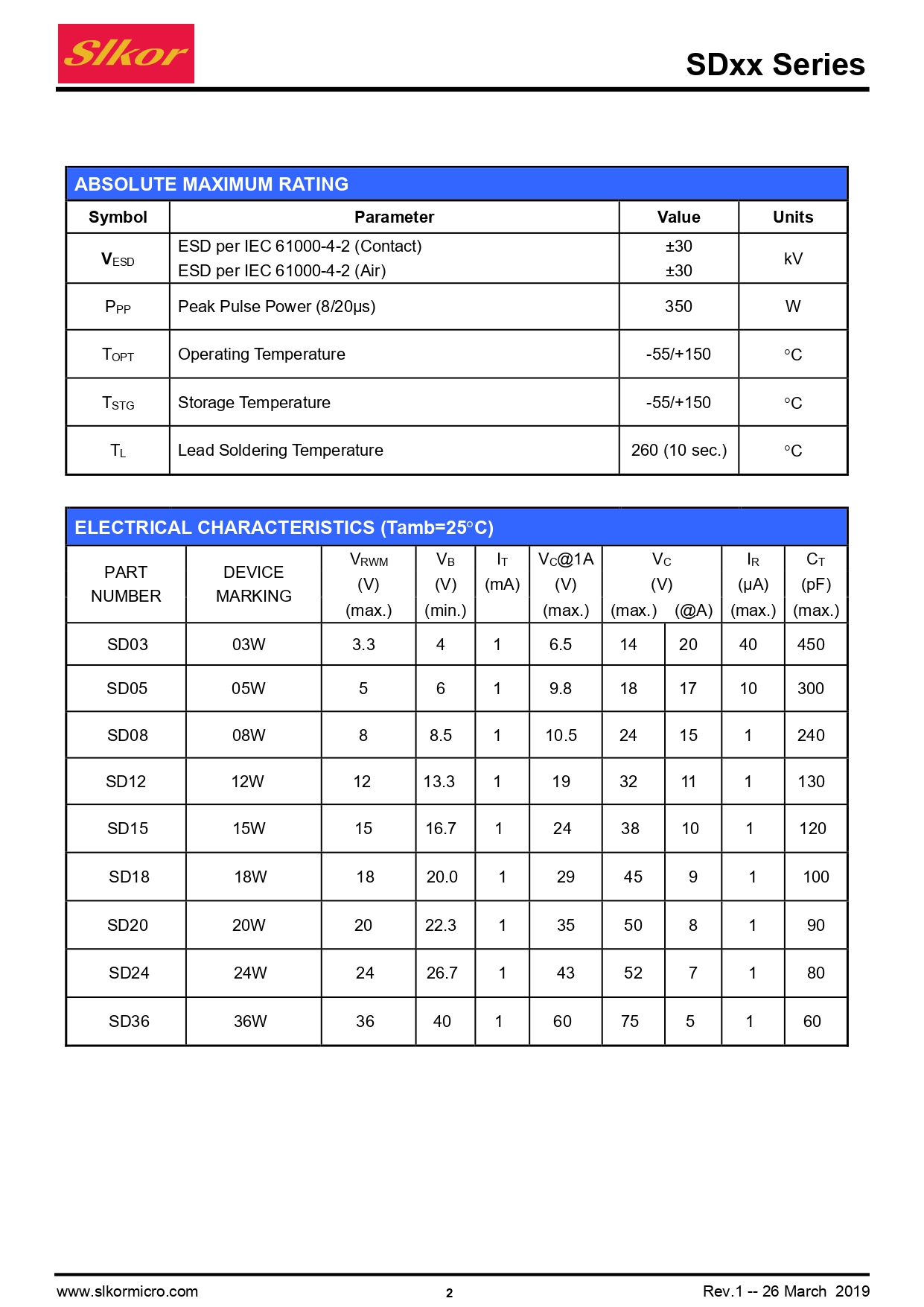

VESD:  ±30kV

PPP:  350W

TOPT:  -55/+150

TSTG:  -55/+150

TL: 260 (10 sec.)

Product Details

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

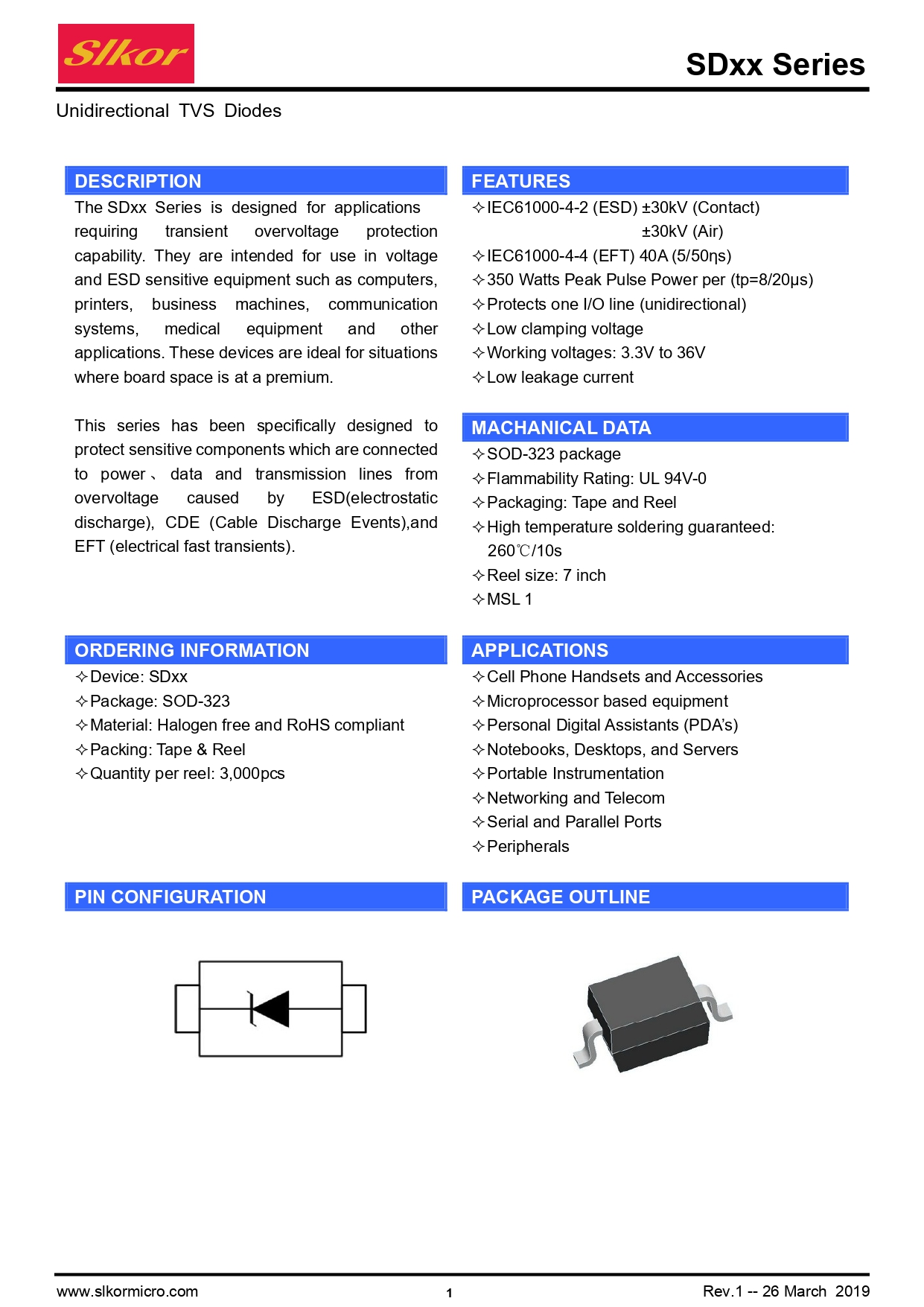

Discription

The SDxx Series is designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. These devices are ideal for situations where board space is at a premium. This series has been specifically designed to protect sensitive components which are connected to power、data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).


Features

●IEC61000-4-2 (ESD) ±30kV (Contact)

                                    ±30kV (Air)

IEC61000-4-4 (EFT) 40A (5/50ηs)

350 Watts Peak Pulse Power per (tp=8/20μs)

Protects one I/O line (unidirectional)

Low clamping voltage

Working voltages: 3.3V to 36V

Low leakage current


Applications

Cell Phone Handsets and Accessories

Microprocessor based equipment

Personal Digital Assistants (PDA’s)

Notebooks, Desktops, and Servers

Portable Instrumentation

Networking and Telecom

Serial and Parallel Ports

Peripherals
