Description
SLESDA33CP is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for data, control or power lines. With Maximum capacitance of 15pF, SLESDA33CP is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 ( ±15kV air, ±8kV contact discharge ), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc.

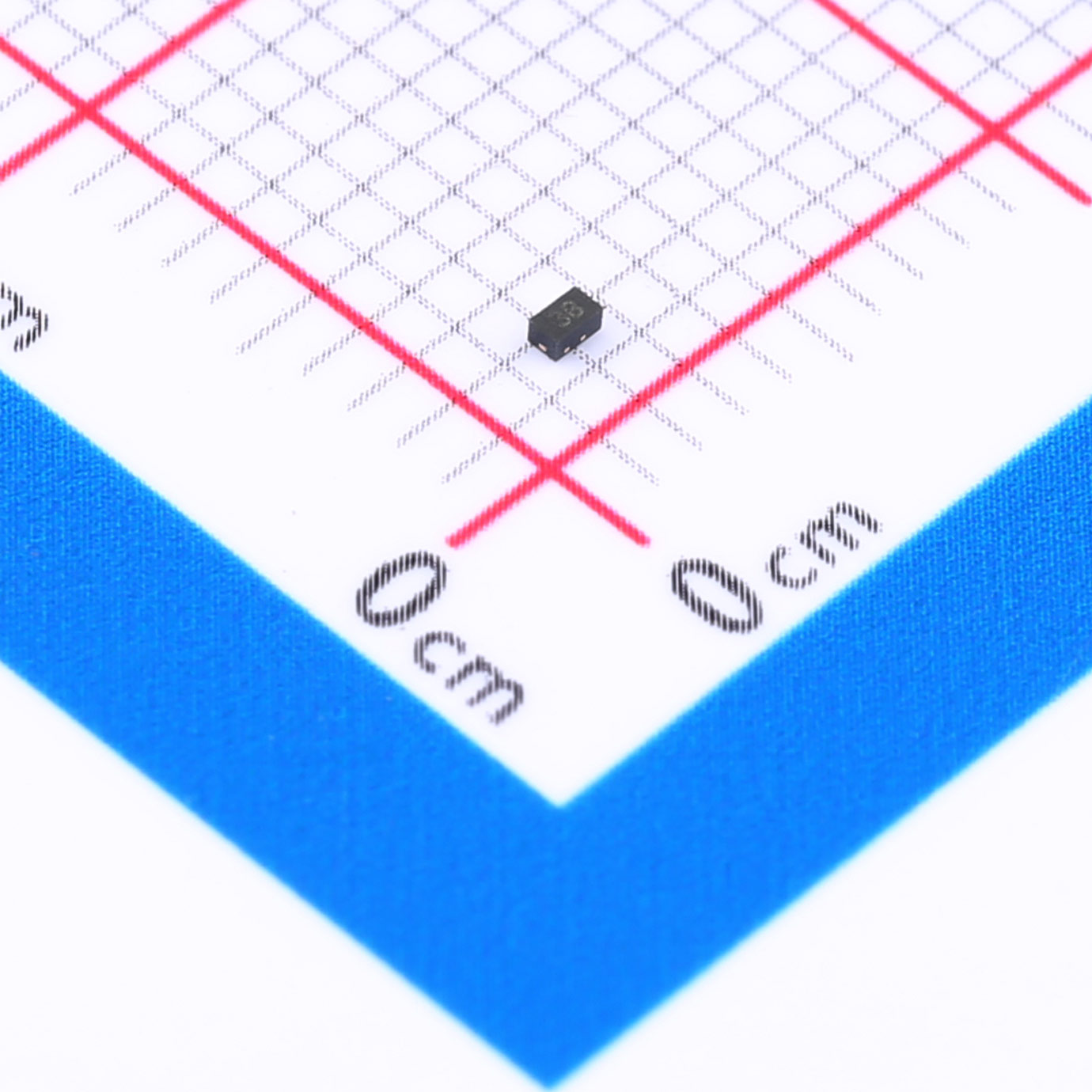

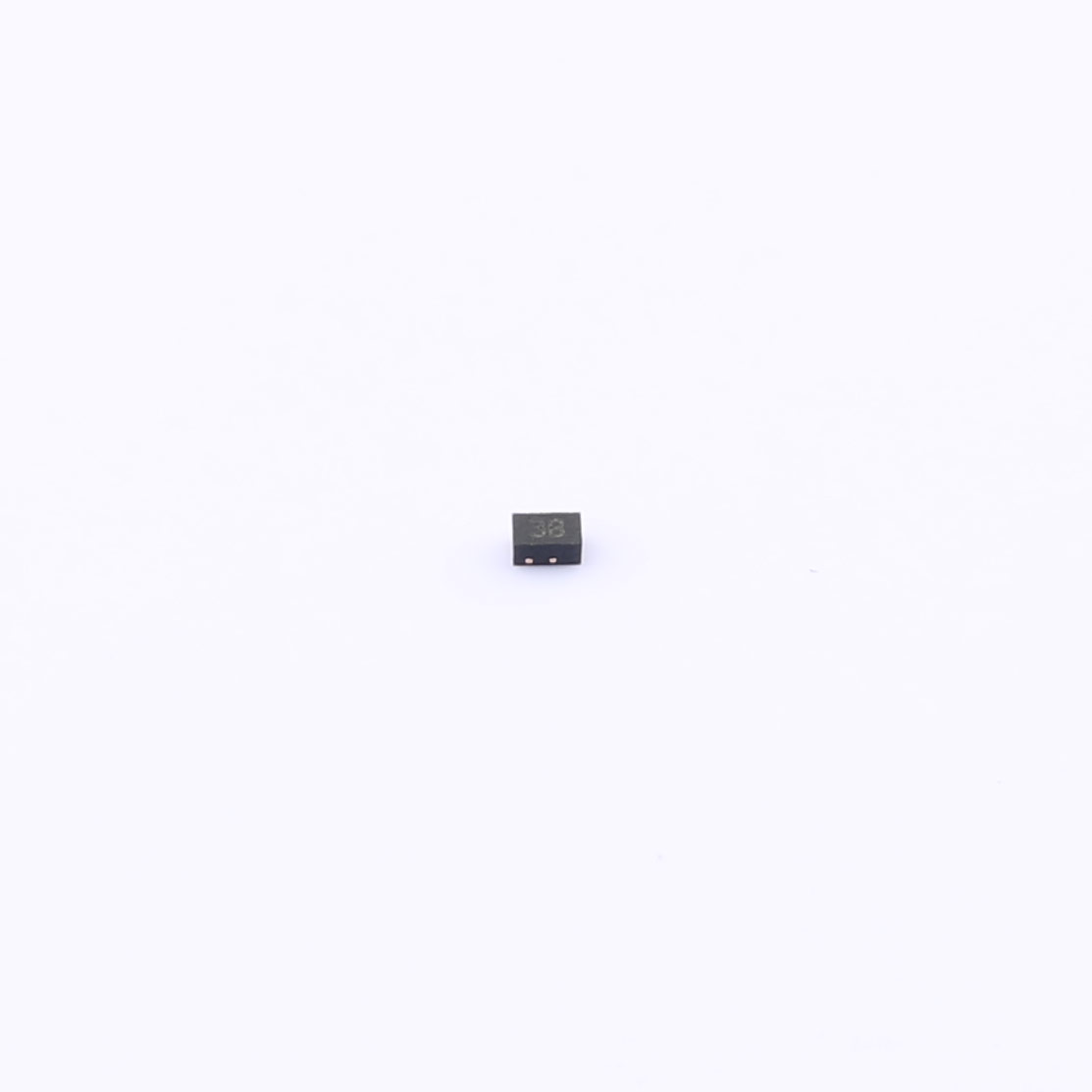

SLESDA33CP uses ultra-small DFN1006 package . Each SLESDA33CP device can protect one data line. It offers system designers flexibility to protect single data line where space is a premium concern.
Features
●Transient protection for high-speed data lines
●IEC 61000-4-2 (ESD) ±15kV (Air) ±8kV (Contact)
●IEC 61000-4-4 (EFT) 40A (5/50 ns)
●Cable Discharge Event (CDE)
●Package optimized for high-speed lines
●Ultra-small package (1.0mm 0.6mm 0.4mm)
●Protects one data, control or power line
●Low capacitance: 15pF (Maximum)
●Low leakage current
●Low clamping voltage
●Each I/O pin can withstand over 1000 ESD strikes for ±8kV contact discharge
Applications
●Portable Electronics
●Desktops, Servers and Notebooks
●Cellular Phones
●MP3 Ports
●Digital Ports
●Subscriber Identity Module (SIM) card
