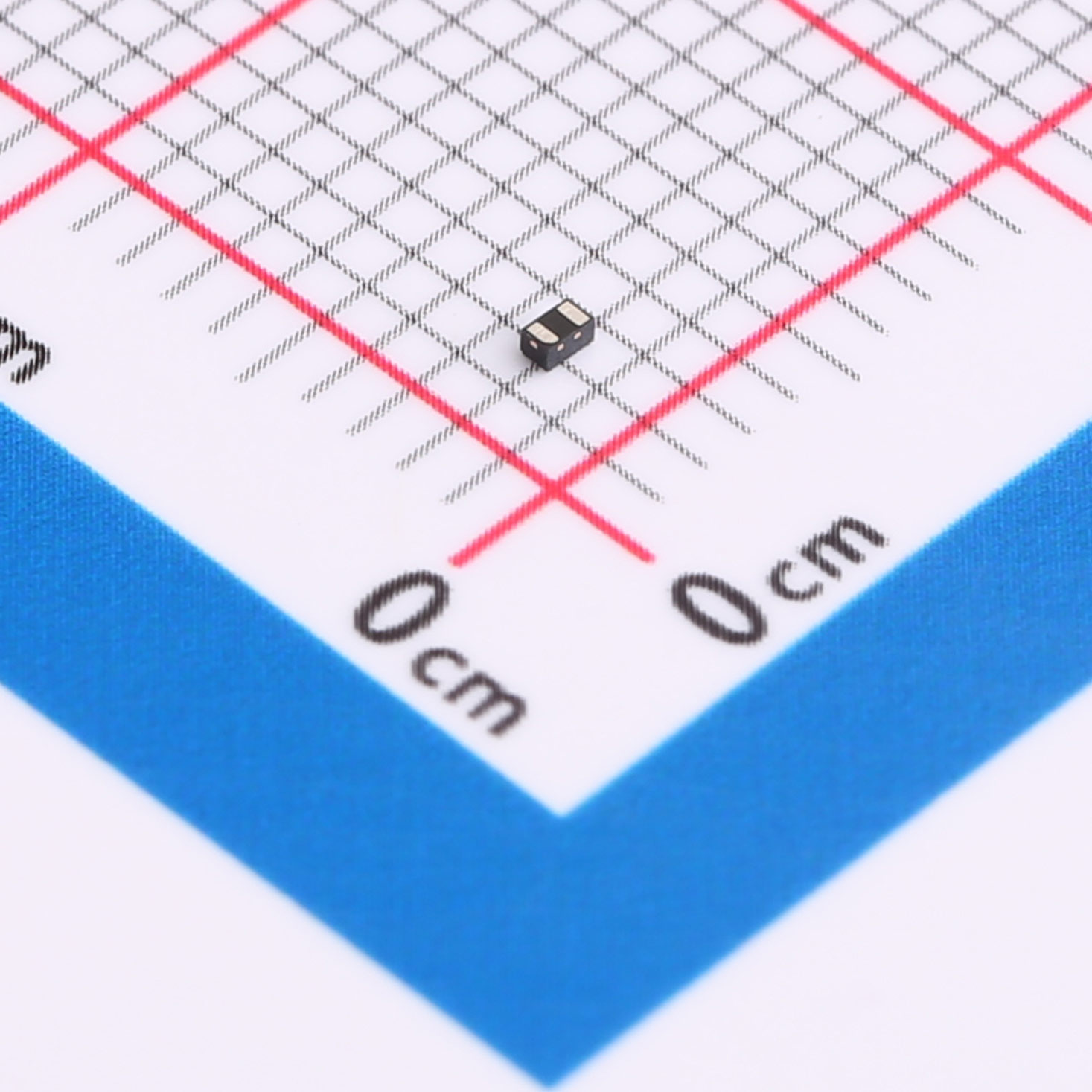

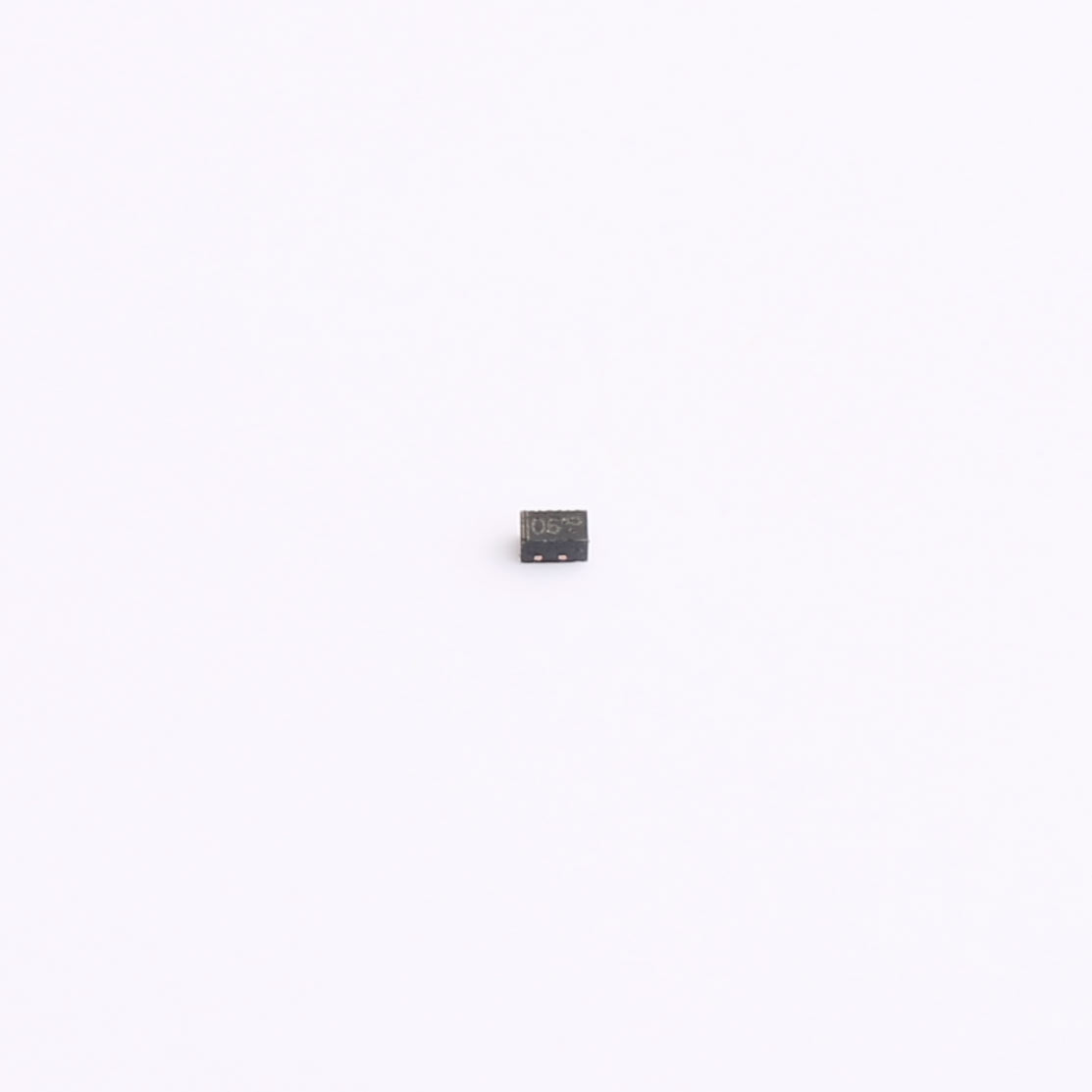

SLESD5341N ESD Protection Diode DFN1006 SLESD5341N ESD Protection Diode DFN1006 SLESD5341N ESD Protection Diode DFN1006
SLESD5341N ESD Protection Diode DFN1006
VRWM (Max): 5V
VBR(Max):  9V
IR(Max): 1uA
VC(Max): 10V
CJ(Max): 10pF

Product Details

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.


Description

The SLESD5341N is a specialized Electrostatic Discharge (ESD) protection device housed in a DFN1006 package. Engineered to safeguard sensitive electronic components from transient voltage spikes caused by electrostatic discharge, this device offers robust protection in compact dimensions suitable for modern electronic designs.

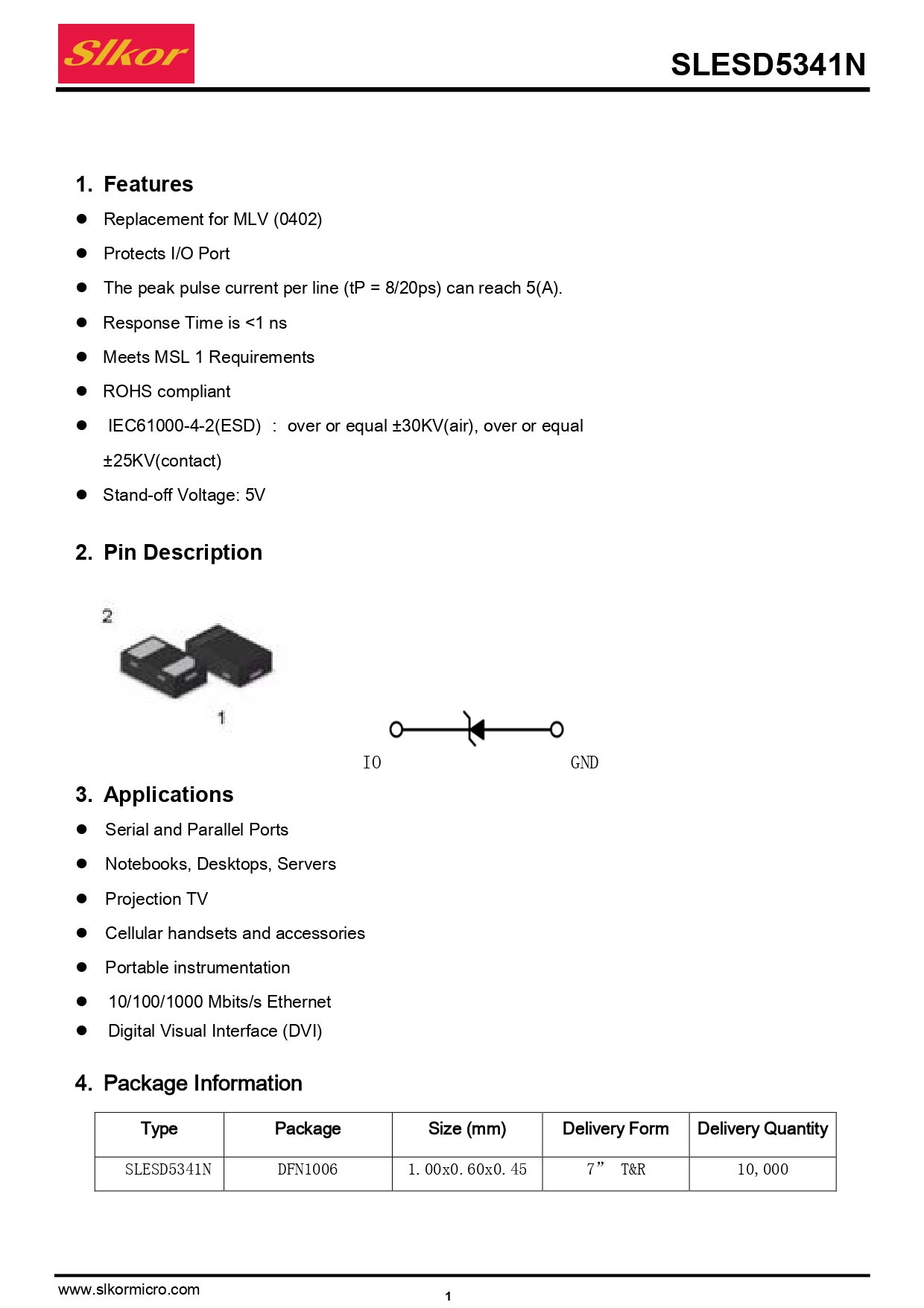

Features

●Replacement for MLV (0402)

Protects I/O Port

The peak pulse current per line (tP = 8/20ps) can reach 5(A).

Response Time is <1 ns

Meets MSL 1 Requirements

ROHS compliant

IEC61000-4-2(ESD) : over or equal ±30KV(air), over or equal ±25KV(contact)

Stand-off Voltage: 5V

Applications

Serial and Parallel Ports

Notebooks, Desktops, Servers

Projection TV

Cellular handsets and accessories

Portable instrumentation

10/100/1000 Mbits/s Ethernet

Digital Visual Interface (DVI)
