SLPESDMC2FD5VB ESD Protection Diode DFN1006 SLPESDMC2FD5VB ESD Protection Diode DFN1006 SLPESDMC2FD5VB ESD Protection Diode DFN1006

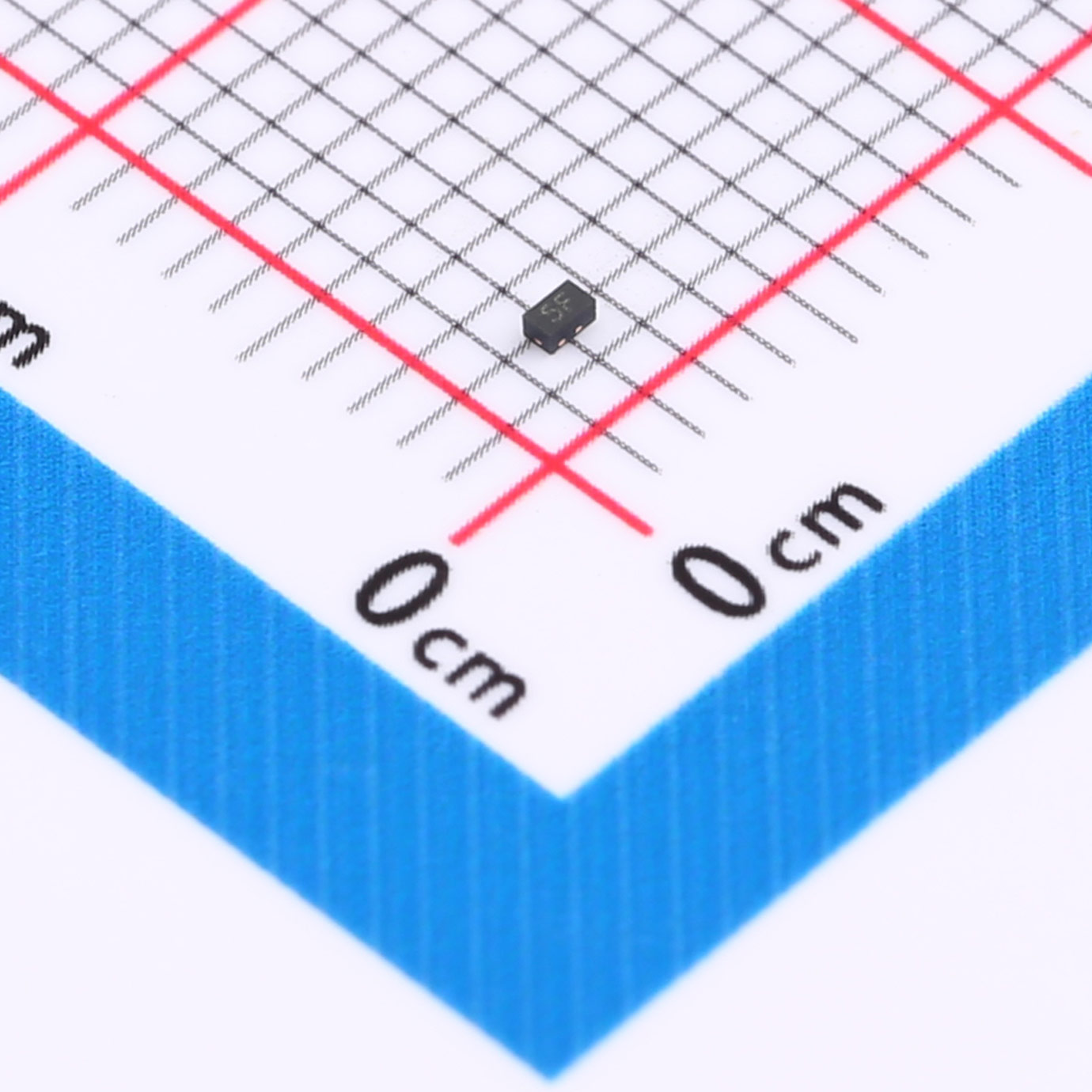

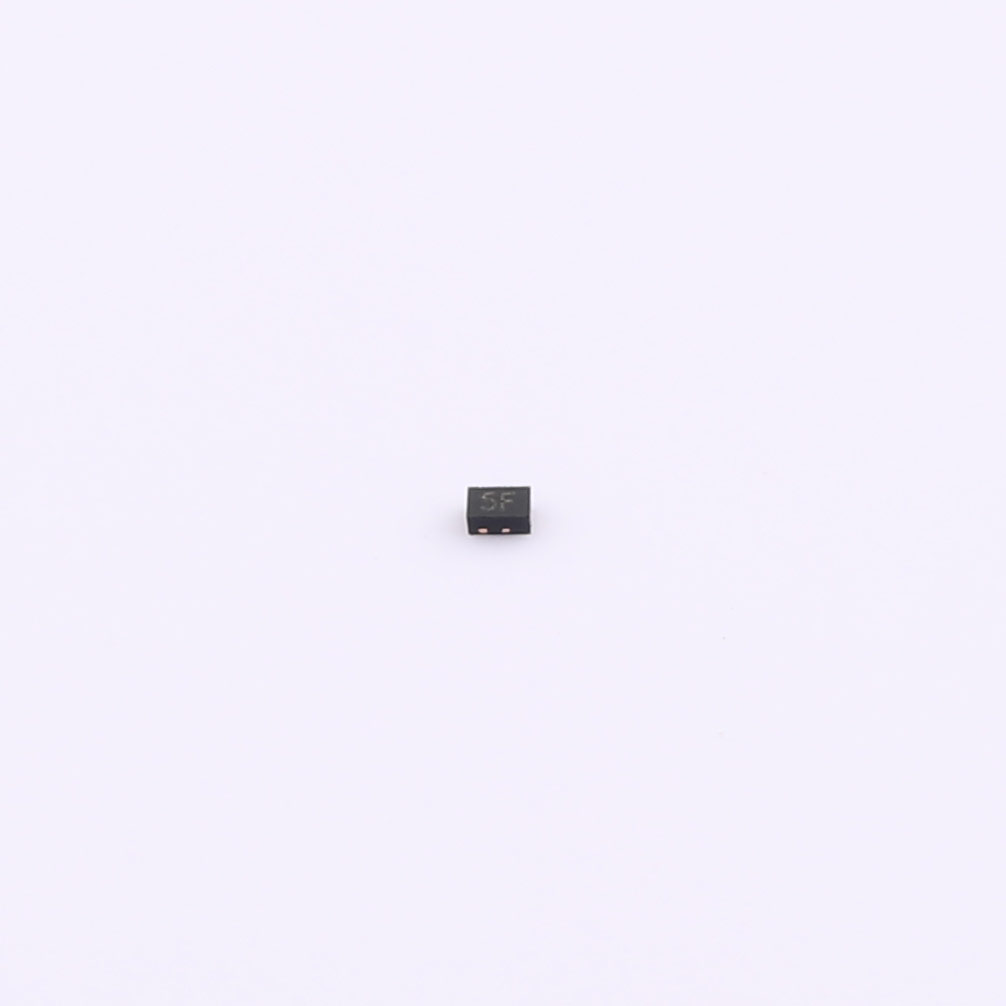

SLPESDMC2FD5VB ESD Protection Diode DFN1006
VRWM: 5V

VBR: 6V

IR: 100nA

VC: 13V (IPP = 1A, tp = 8/20μs)

CJ: 0.4pF

Product Details

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

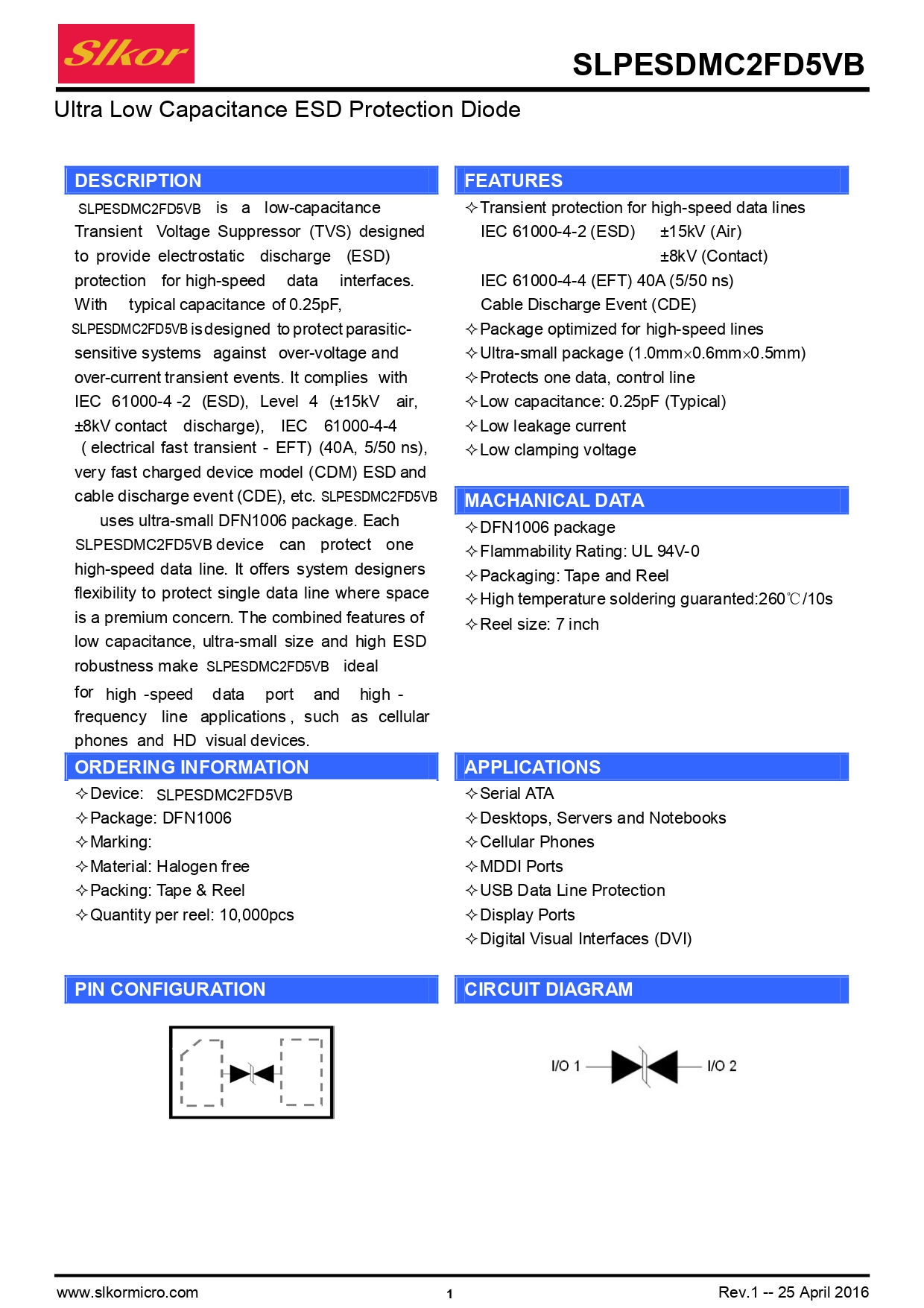

Description

SLPESDMC2FD5VB is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces. With typical capacitance of 0.25pF, SLPESDMC2FD5VBis designed to protect parasitic- sensitive systems against over-voltage and over-current transient events.It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8kV contact discharge), IEC 61000-4-4 (electrical fast transient-EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event(CDE), etc.SLPESDMC2FD5VB uses ultra-small DFN1006 package. Each SLPESDMC2FD5VB device can protect one high-speed data line. It offers system designers flexibility to protect single data line where space is a premium concern. The combined features of low capacitance, ultra-small size and high ESD robustness make SLPESDMC2FD5VB ideal for high-speed data port and high- frequency line applications,such as cellular phones and HD visual devices.


Features

●Transient protection for high-speed data lines

IEC 61000-4-2 (ESD) ±15kV (Air)

                                     ±8kV (Contact)

IEC 61000-4-4 (EFT) 40A (5/50 ns)

Cable Discharge Event (CDE)

Package optimized for high-speed lines

Ultra-small package (1.0mm×0.6mm×0.5mm)

Protects one data, control line

Low capacitance: 0.25pF (Typical)

Low leakage current

Low clamping voltage


Applications

Serial ATA

Desktops, Servers and Notebooks

Cellular Phones

MDDI Ports

USB Data Line Protection

Display Ports

Digital Visual Interfaces (DVI)

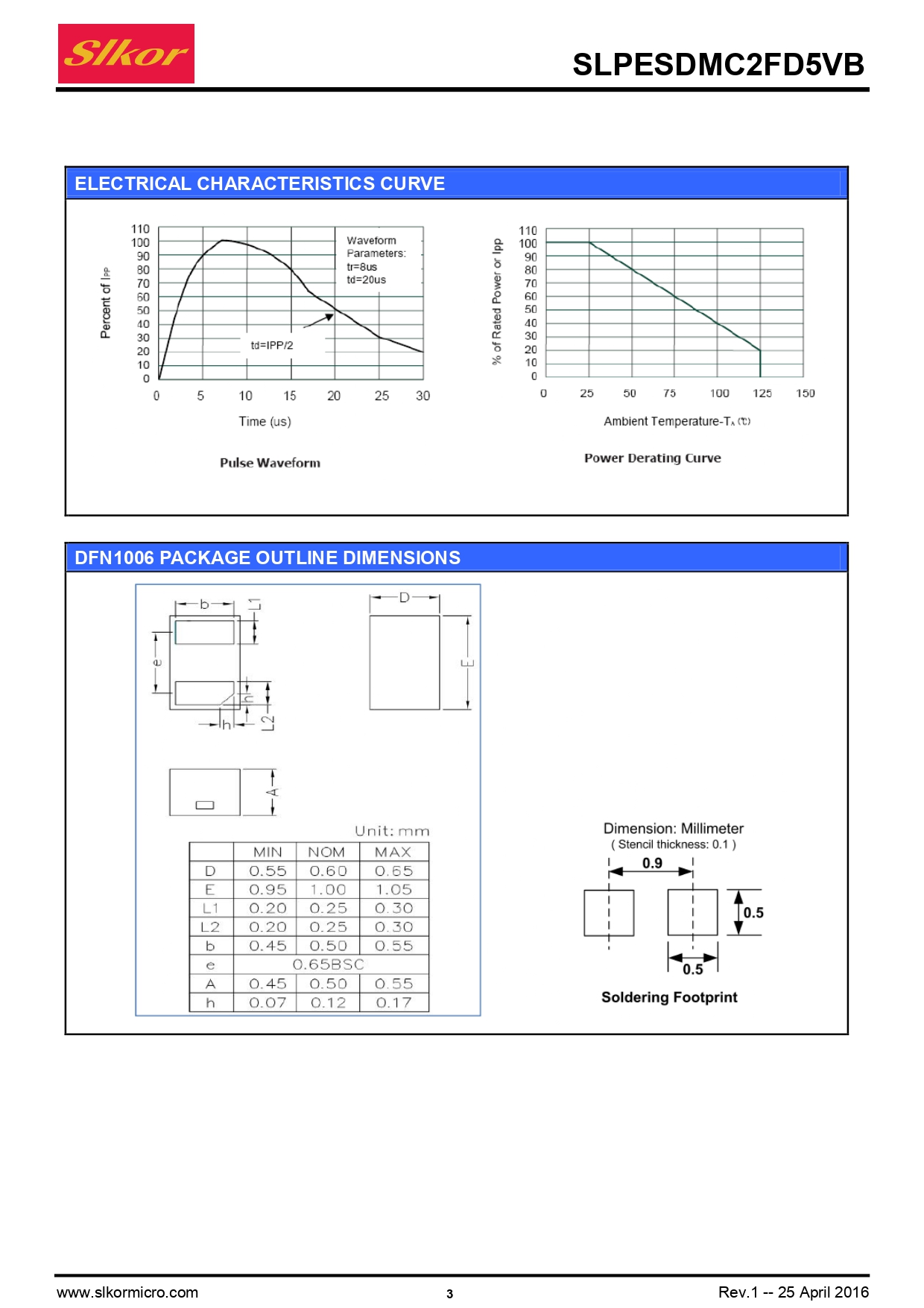

C7496592_静电和浪涌保护(TVS-ESD)_SLPESDMC2FD5VB_规格书_WJ974098_page-0002.jpgC7496592_静电和浪涌保护(TVS-ESD)_SLPESDMC2FD5VB_规格书_WJ974098_page-0003.jpg
