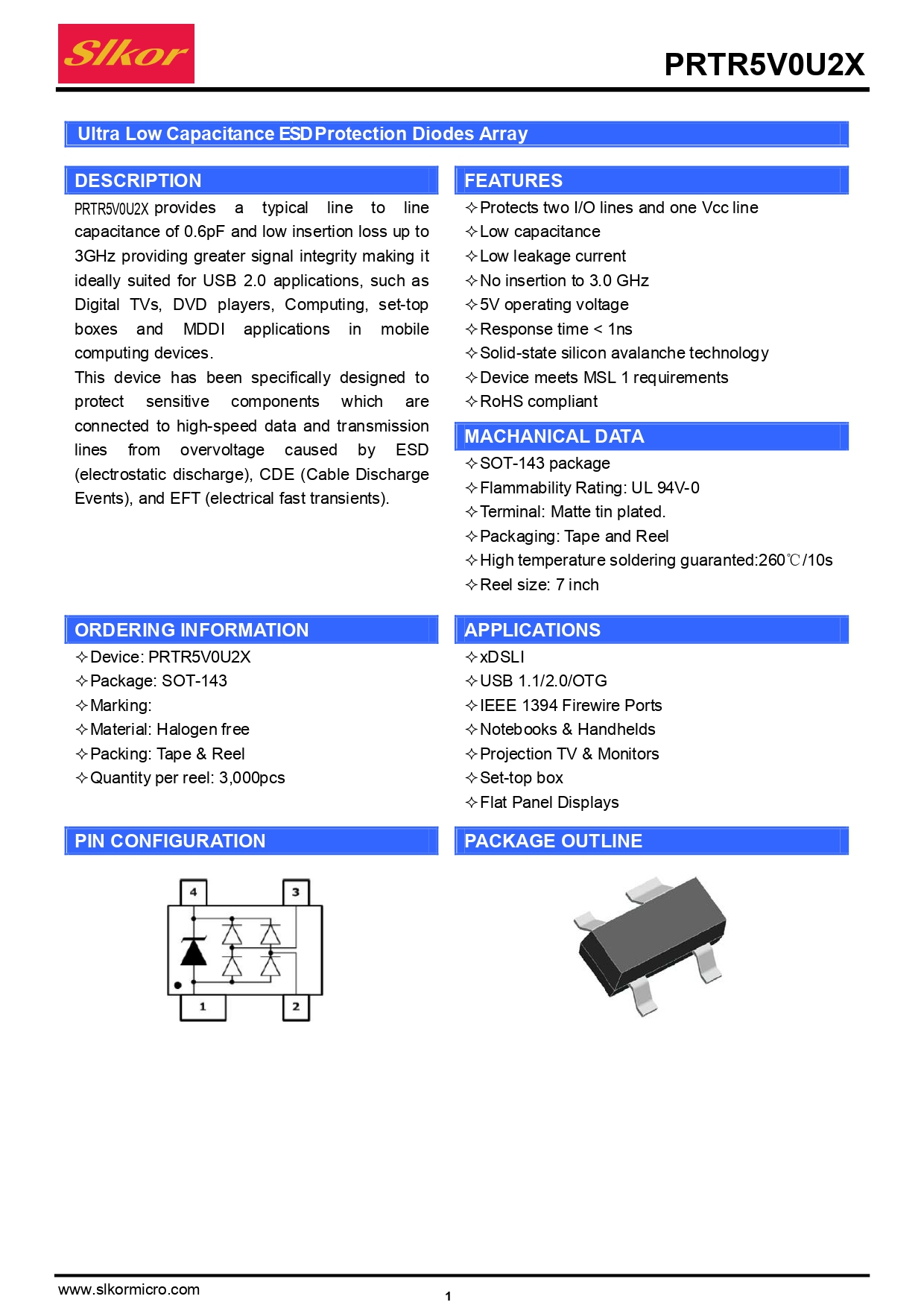

Description

PRTR5V0U2X provides a typical line to line capacitance of 0.6pF and low insertion loss up to 3GHz providing greater signal integrity making it ideally suited for USB 2.0 applications, such as Digital TVs, DVD players, Computing, set-top boxes and MDDI applications in mobile computing devices. This device has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).

Features

●Protects two I/O lines and one Vcc line

●Low capacitance Low leakage current

●No insertion to 3.0 GHz

●5V operating voltage

●Response time < 1ns

●Solid-state silicon avalanche technology

●Device meets MSL 1 requirements

●RoHS compliant

Applications

●xDSLI

●USB 1.1/2.0/OTG

●IEEE 1394 Firewire Ports

●Notebooks & Handhelds

●Projection TV & Monitors

●Set-top box

●Flat Panel Displays
