SLESDSLC5V0E ESD Protection Diode SOT-23 SLESDSLC5V0E ESD Protection Diode SOT-23 SLESDSLC5V0E ESD Protection Diode SOT-23
SLESDSLC5V0E ESD Protection Diode SOT-23

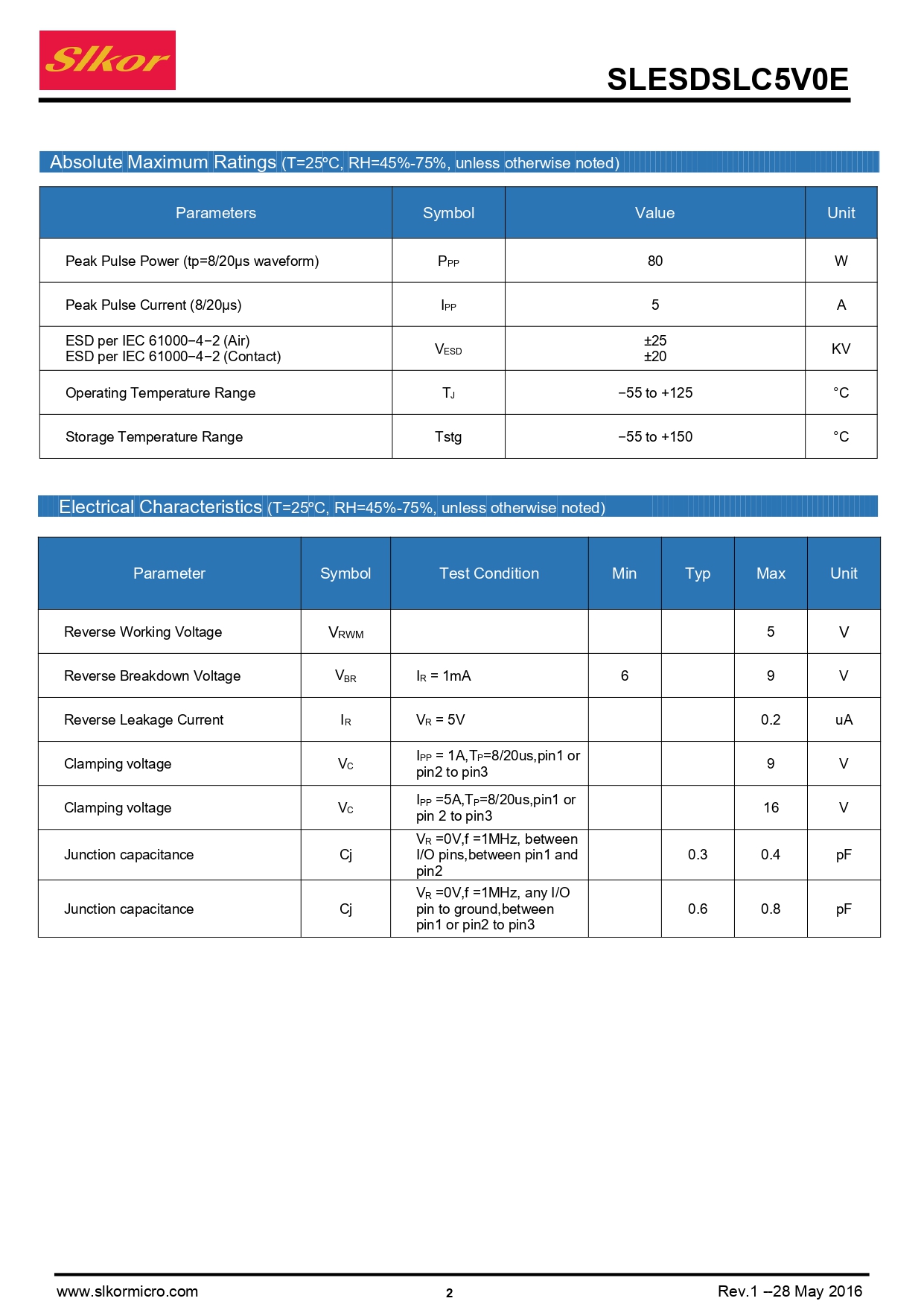

VRWM (max): 5V
VBR(min): 9V
IR(max): 0.2 uA
VC(max): 9V (IPP = 1A,TP=8/20us,pin1 or pin2 to pin3)
Cj(max): 0.4pF (VR =0V,f =1MHz, between I/O pins,between pin1 and pin2)

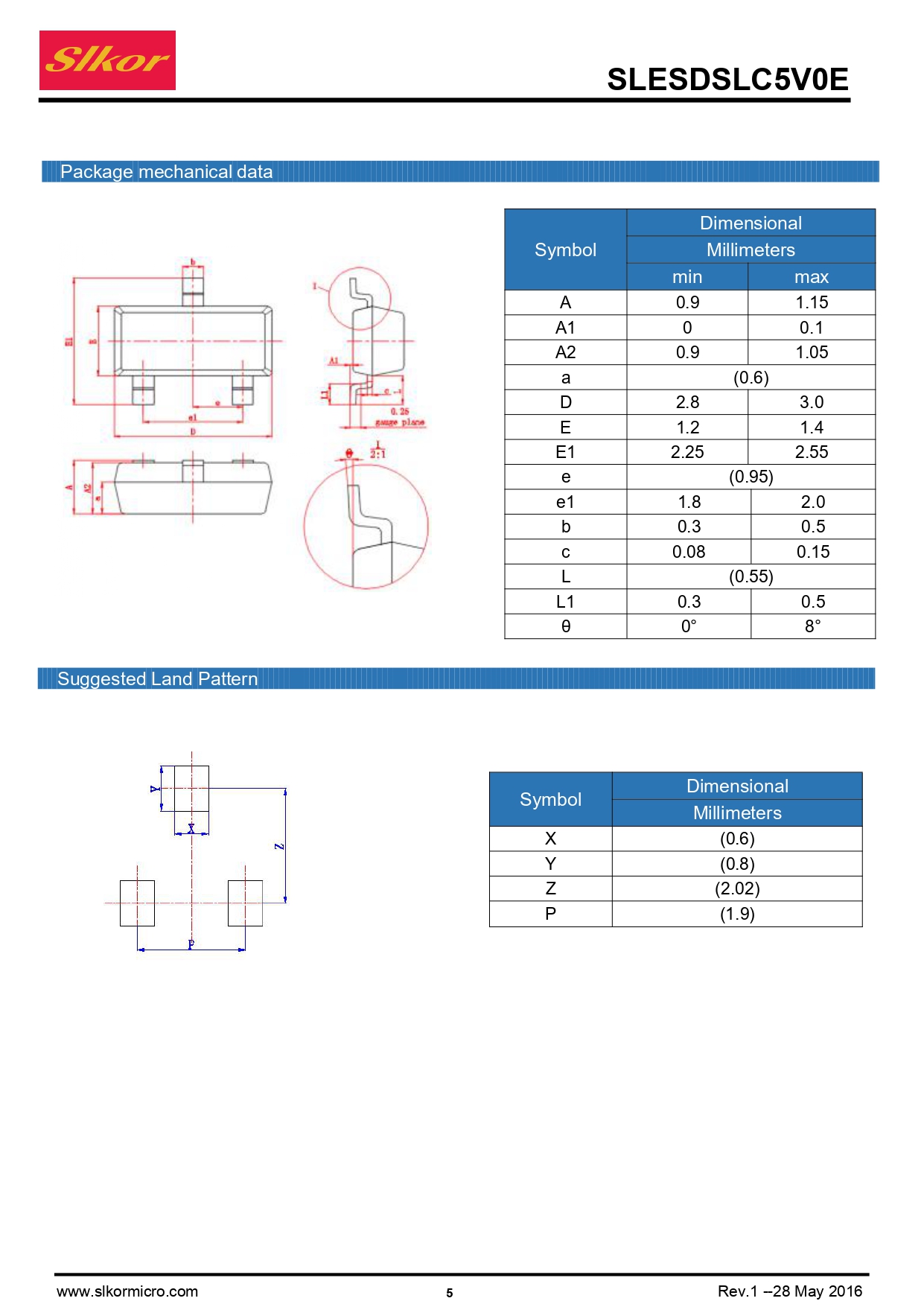

Package: SOT-23

Product Details

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.


Description

The SLESDSLC5V0E is a high-performance Electrostatic Discharge (ESD) protection diode designed to safeguard sensitive electronic components from transient voltage spikes caused by ESD events. Encapsulated in an SOT-23 package, this diode offers robust protection in a compact form factor suitable for integration into various electronic designs.

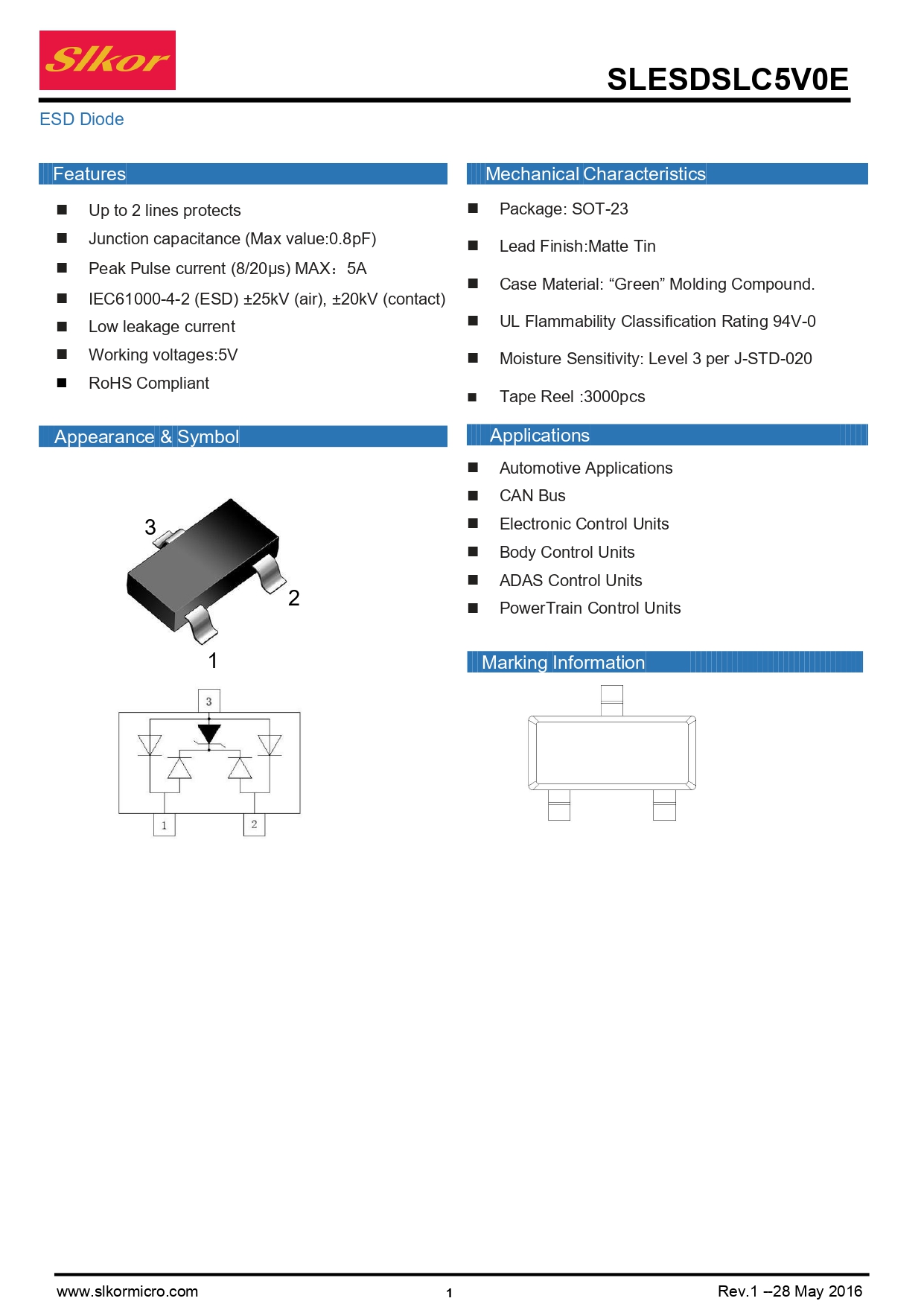

Features

●Up to 2 lines protects

Junction capacitance (Max value:0.8pF)

Peak Pulse current (8/20μs) MAX:5A

IEC61000-4-2 (ESD) ±25kV (air), ±20kV (contact)

Low leakage current

Working voltages:5V

RoHS Compliant


Applications

Automotive Applications

CAN Bus

Electronic Control Units

Body Control Units

ADAS Control Units

PowerTrain Control Units
