Description

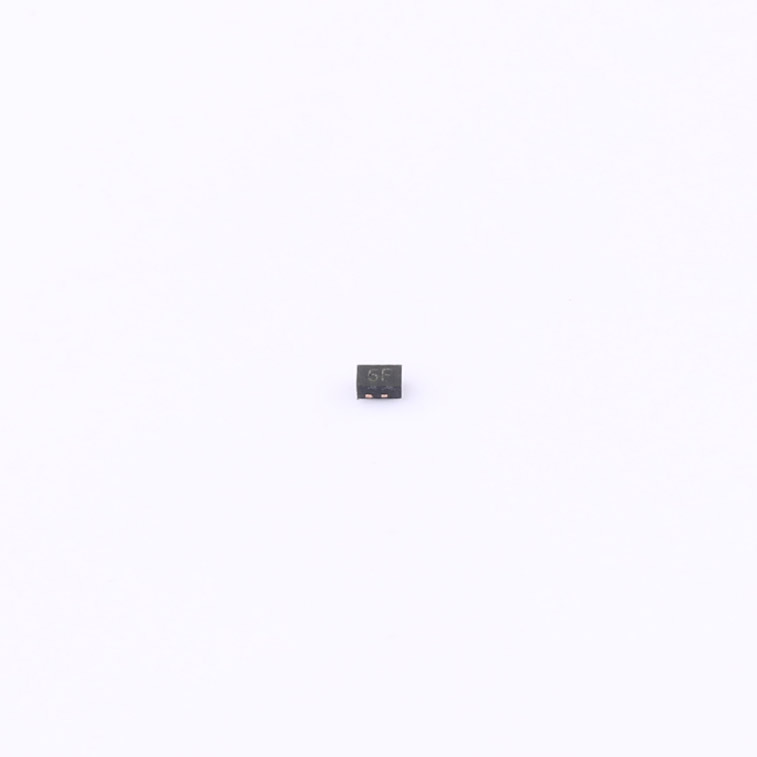

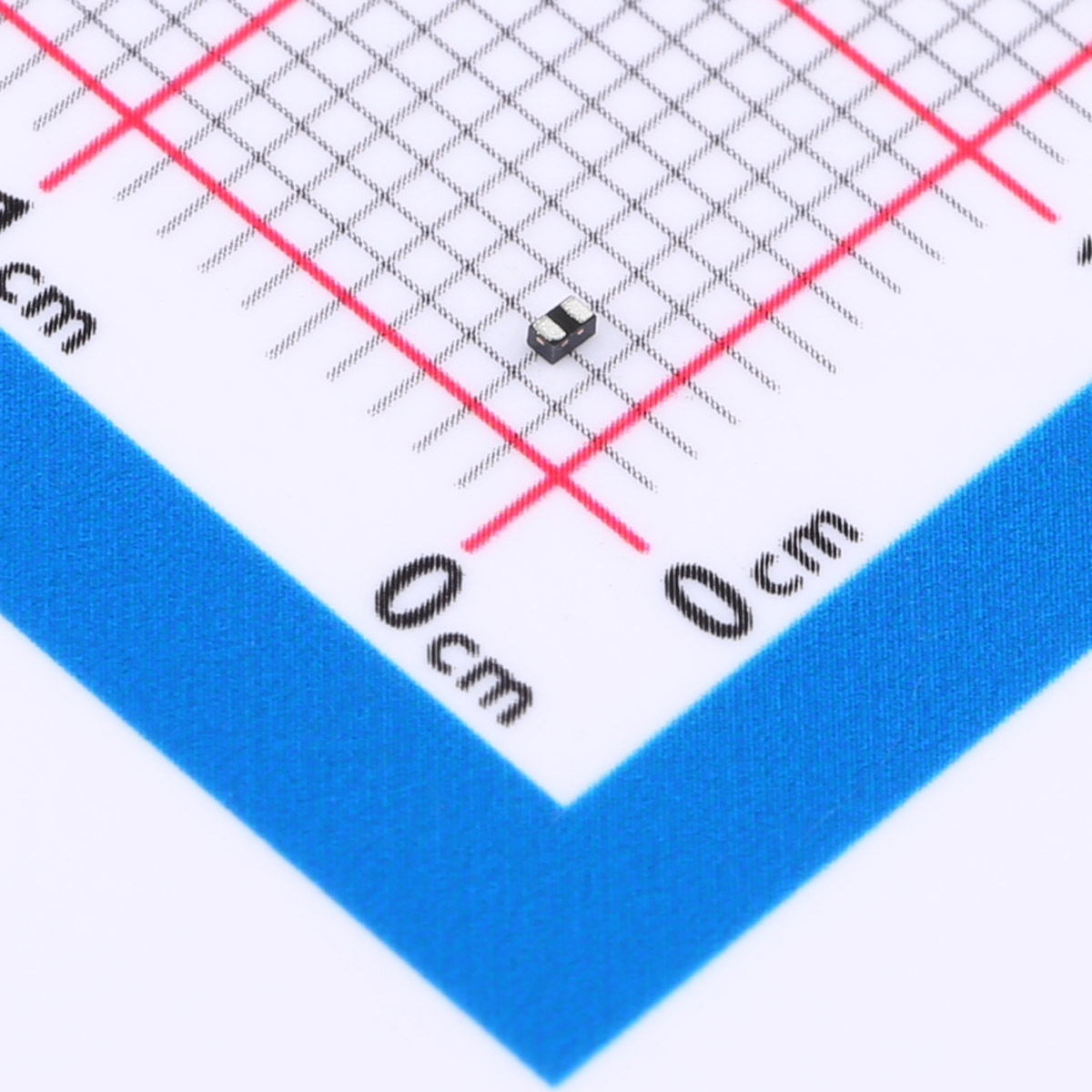

The SEU0501P1 is an advanced ESD (Electrostatic Discharge) protection device crafted to safeguard sensitive electronic components from transient voltage spikes in a compact DFN1006 package. With a working voltage (VRWM) of 5V, this device is optimized for low-voltage applications. It features a minimum breakdown voltage (VBR) of 9.5V, ensuring robust protection during ESD events. The ultra-low reverse leakage current (IR) of 0.1μA ensures minimal power loss and enhances circuit efficiency. The clamping voltage (VC) of 11V provides strong protection against high-energy surges, while the exceptionally low junction capacitance (CJ) of 0.45pF maintains signal integrity in high-speed applications. The SEU0501P1 is designed for environments where space is limited but high performance is critical.

Features

● Capacitance: 0.35pF(typ.)

● Reverse Working Voltage: 5V

● IEC 61000-4-2 (ESD Air): ±20KV

   IEC 61000-4-2 (ESD Contact): ±20KV

   IEC 61000-4-5 (Lightning 8/20µs): 4.5A

Application

● Smart Phone and Tablet PC

● TV and Set Top Box

● Wearable Devices

● PDA
