Ultra Low Capacitance ESD Protection Diode
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Slkor alternative equivalents to NXP.
NXP | Slkor Replacements | ||
Part Number | Part Number | Product Category | Package |
PESD5V0V1BSF | SLESD05D6CU | ESD | DFN0603 |
PESD3V3V1BCSF | SLESD03D6BN | ESD | DFN0603 |
PESD3V3R1BSF | SLESD03D6BU | ESD | DFN0603 |
PESD5V0F1BL | SLESD0501BU | ESD | DFN1006 |
PESD5V0S1BL | SLESD0501CM | ESD | DFN1006 |
PESD3V3T1BL | SLESD0301M | ESD | DFN1006 |
Description

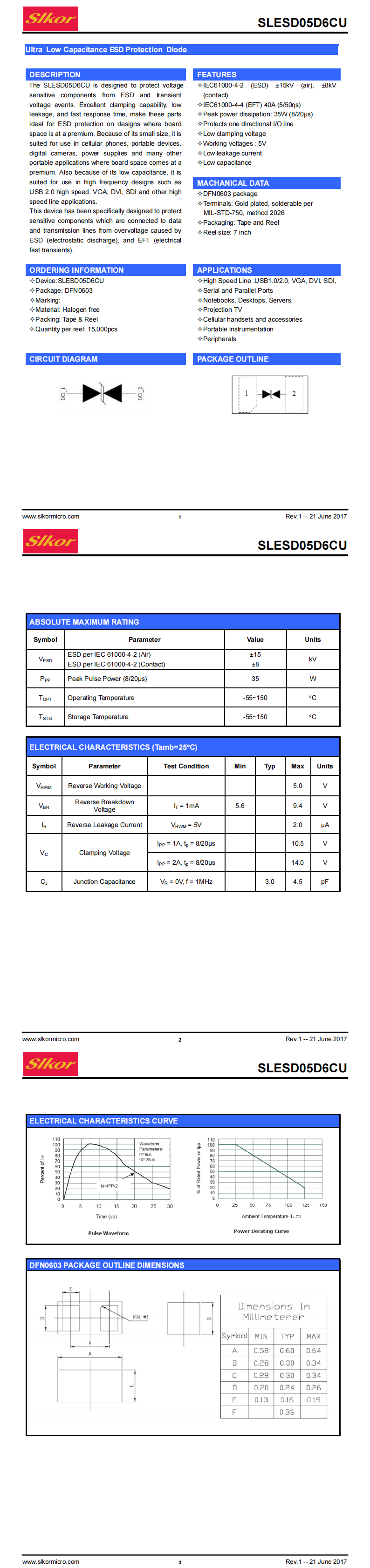

The SLESD05D6CU is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications where board space comes at a premium. Also because of its low capacitance, it is suited for use in high frequency designs such as USB 2.0 high speed, VGA, DVI, SDI and other high speed line applications. This device has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), and EFT (electrical fast transients).
Features
● IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
● IEC61000-4-4 (EFT) 40A (5/50ηs)
● Peak power dissipation: 35W (8/20μs)
● Protects one directional I/O line
● Low clamping voltage
● Working voltages : 5V
● Low leakage current
● Low capacitance
Mechanical Data
● DFN0603 package
● Terminals: Gold plated, solderable per MIL-STD-750, method 2026
● Packaging: Tape and Reel
● Reel size: 7 inch
Ordering Information
● Device: SLESD05D6CU
● Package: DFN0603
● Marking
● Material: Halogen free
● Packing: Tape & Reel Quantity per reel: 15,000pcs
Applications
● High Speed Line :USB1.0/2.0, VGA, DVI, SDI,
● Serial and Parallel Ports
● Notebooks, Desktops, Servers
● Projection TV
● Cellular handsets and accessories
● Portable instrumentation
● Peripherals
