Description

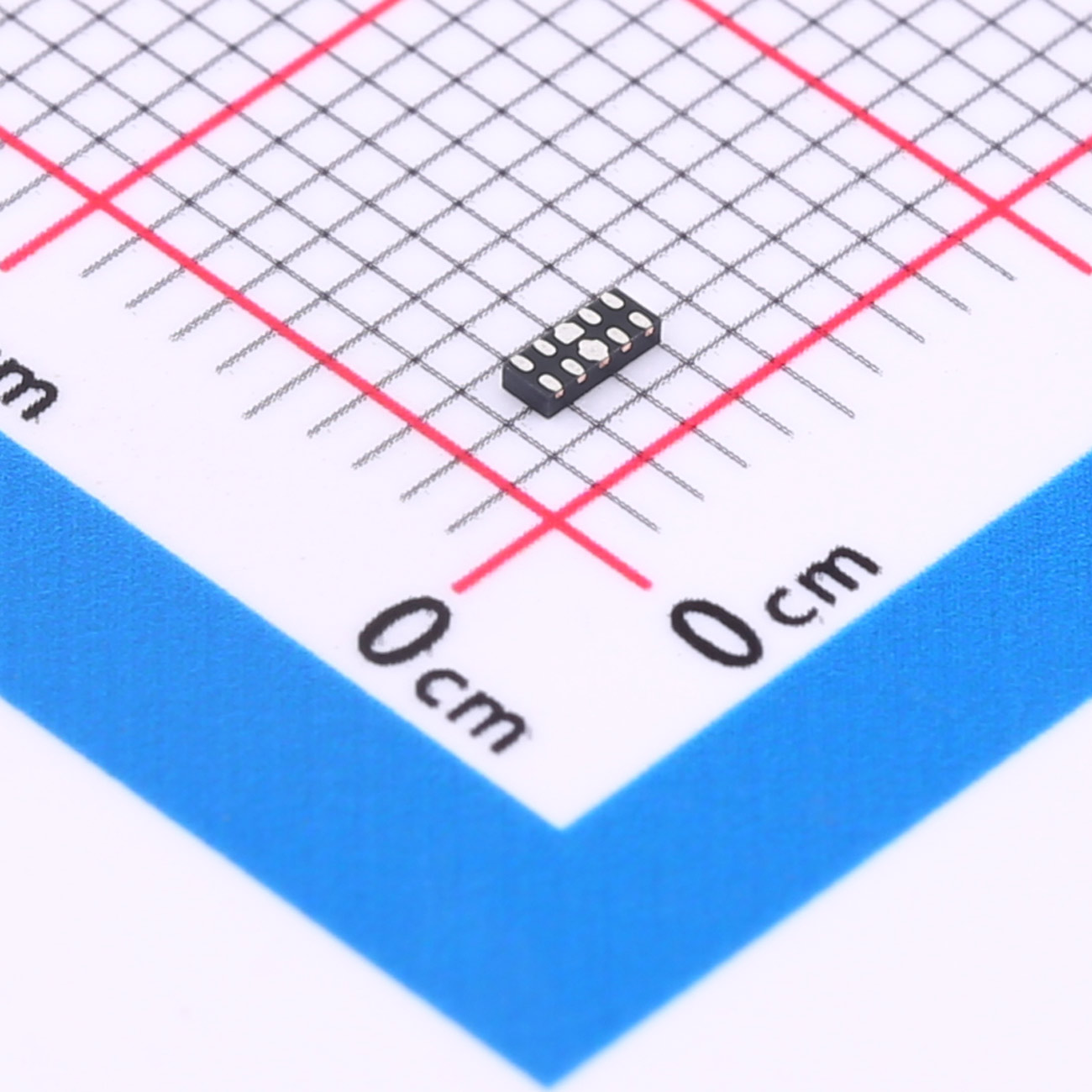

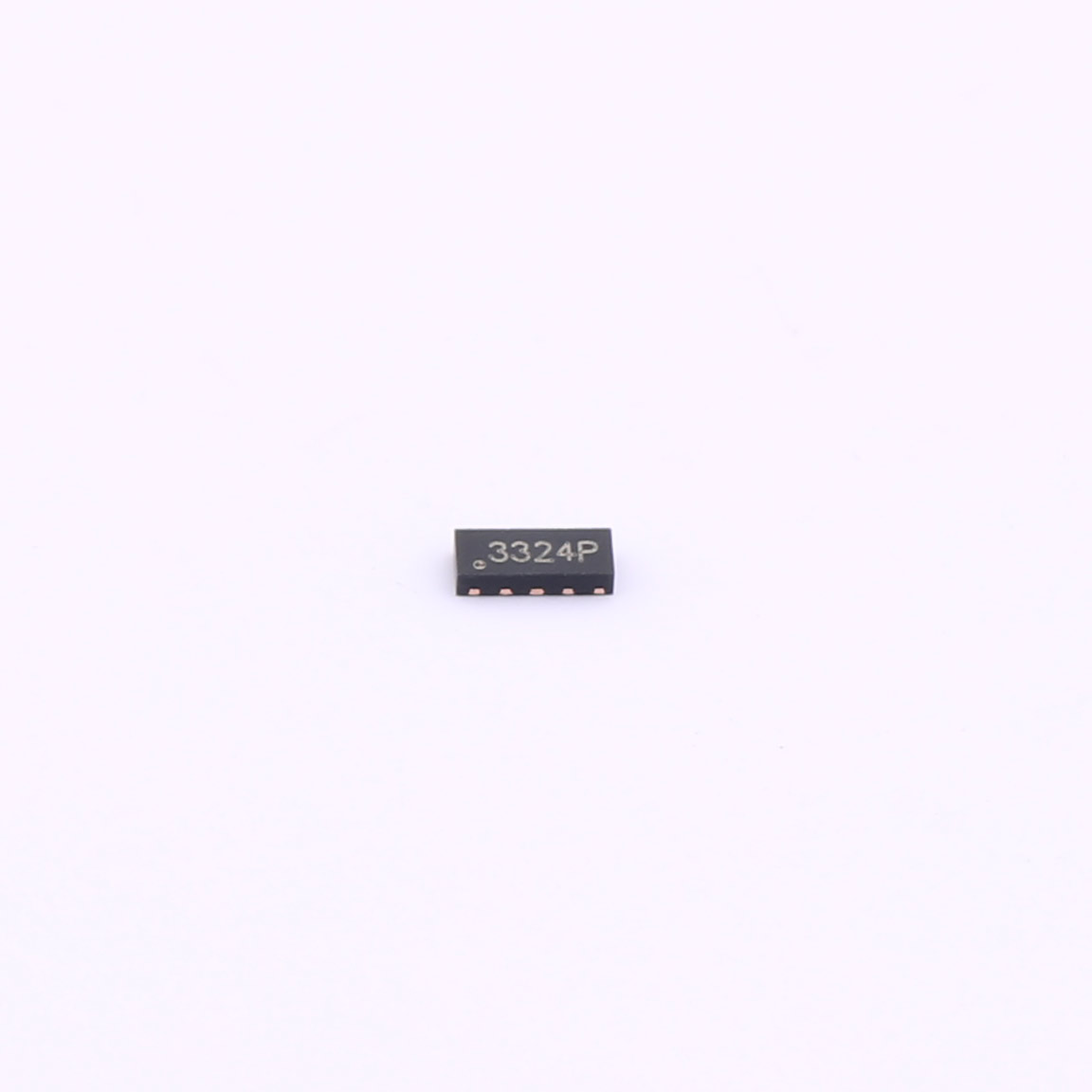

SLESD3324P is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to protection for high-speed data interfaces. With typical capacitance of 0.2pF (I/O to I/O) only, SLESD3324P is designed to protest parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4(±15KV air, ±8KV contact discharge), IEC61000-4-4 (electrical fast transient-EFT) (40A, 5/50ns), very fast charged device model (CDM)ESD and cable discharge event (CDE),etc. SLESD3324P uses ultra-small DFN2510 package. Each SLESD3324P device can protect four high-speed data lines. The combined features of ultra-low capacitance, ultra-small size and high ESD robustness make SLESD3324P ideal for high-speed data ports and high-frequency lines (e.g., HDMI &DVI) applications. The low clamping voltage of the SLESD3324P guarantees a minimum stress on the protected IC.

Features

● Ultra-Low capacitance:0.5pF(typ.)

● Reverse stand-off voltage:5V

● IEC 61000-4-2 (Air): ±20KV

   IEC 61000-4-2 (Contact): ±15KV

Application

● USB 3.0, USB 2.0

● HDMI 1.3/1.4, Display Port 1.3, eSATA

● Unified Display Interface (UDI)

● Digital Visual Interface (DVI)

● High speed serial interfaces
