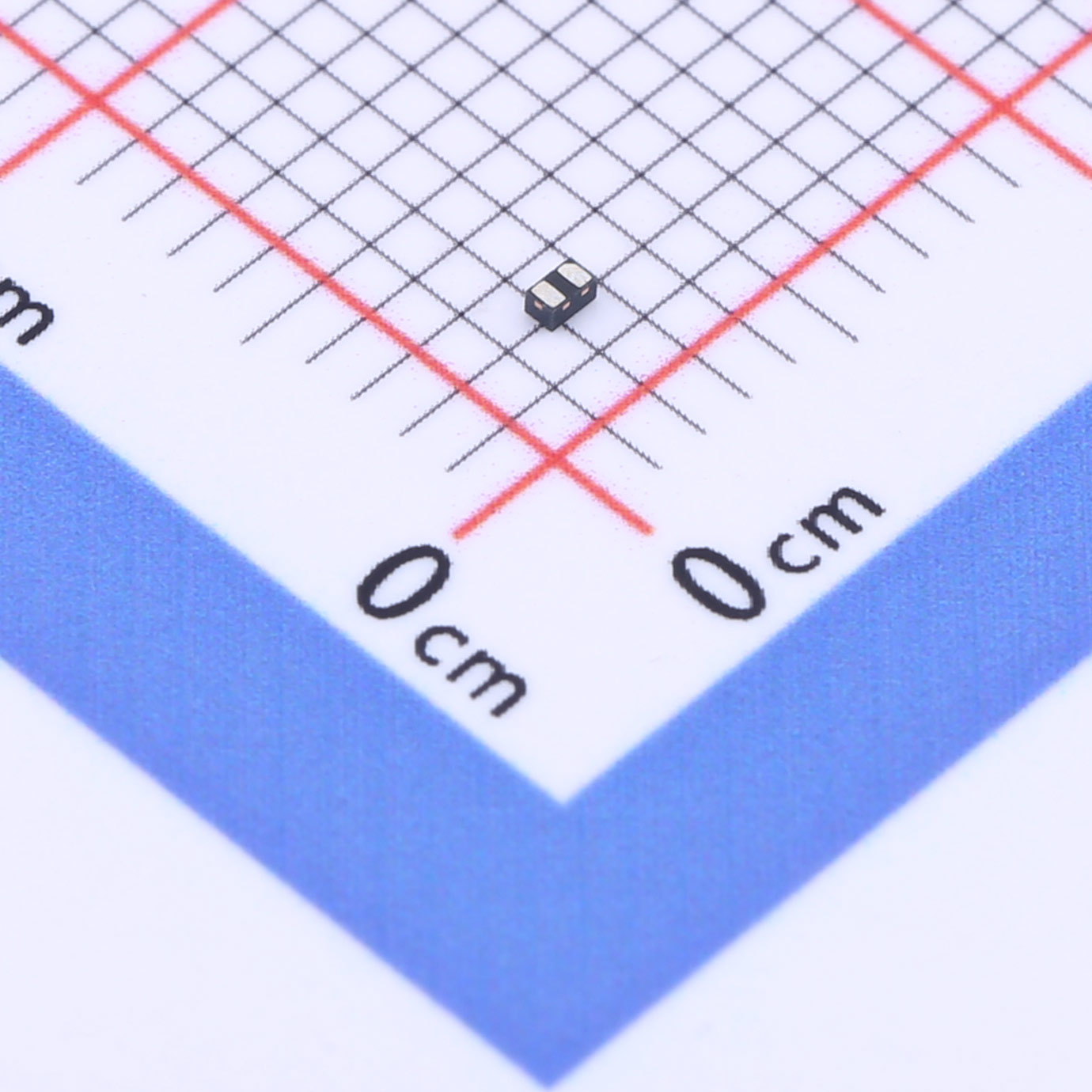

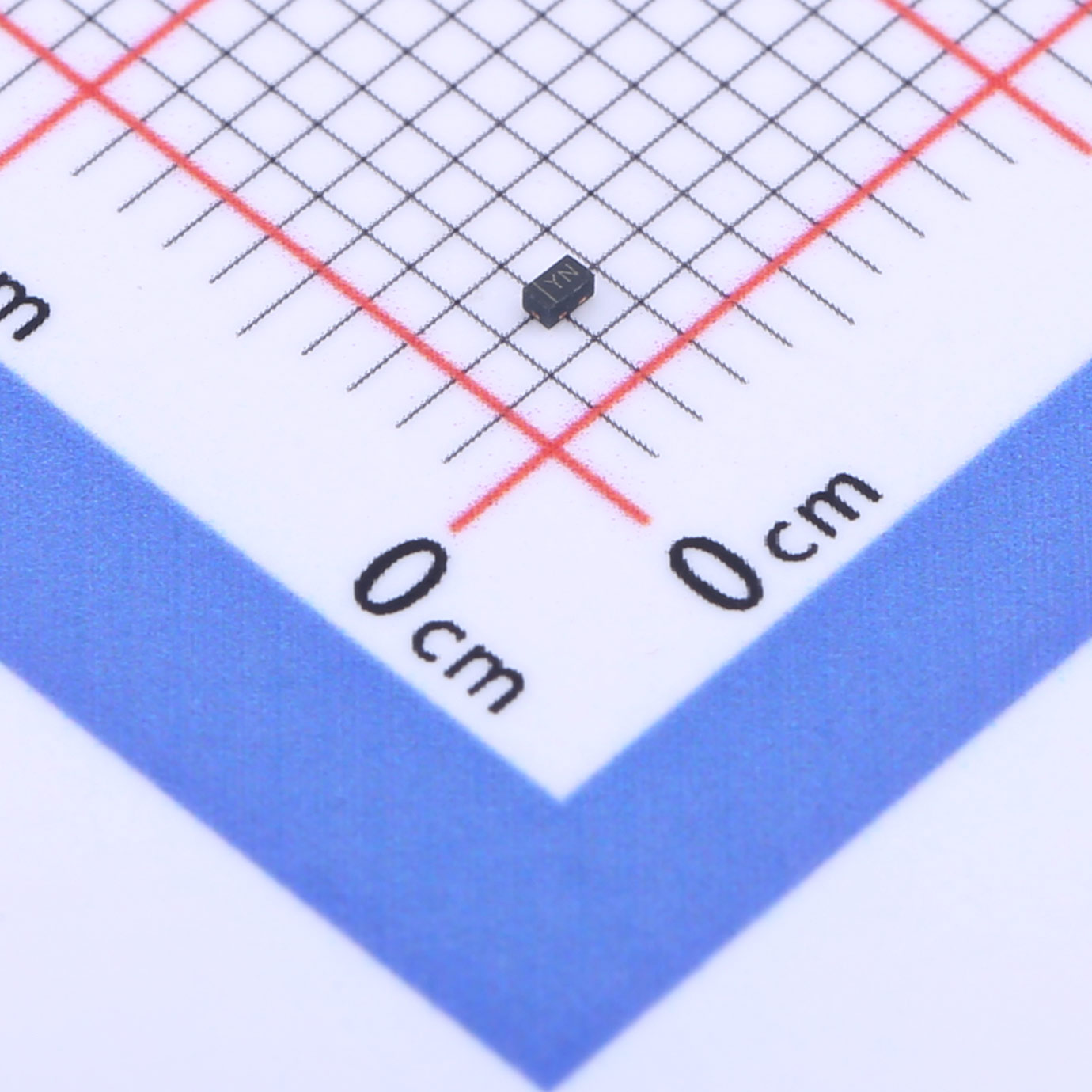

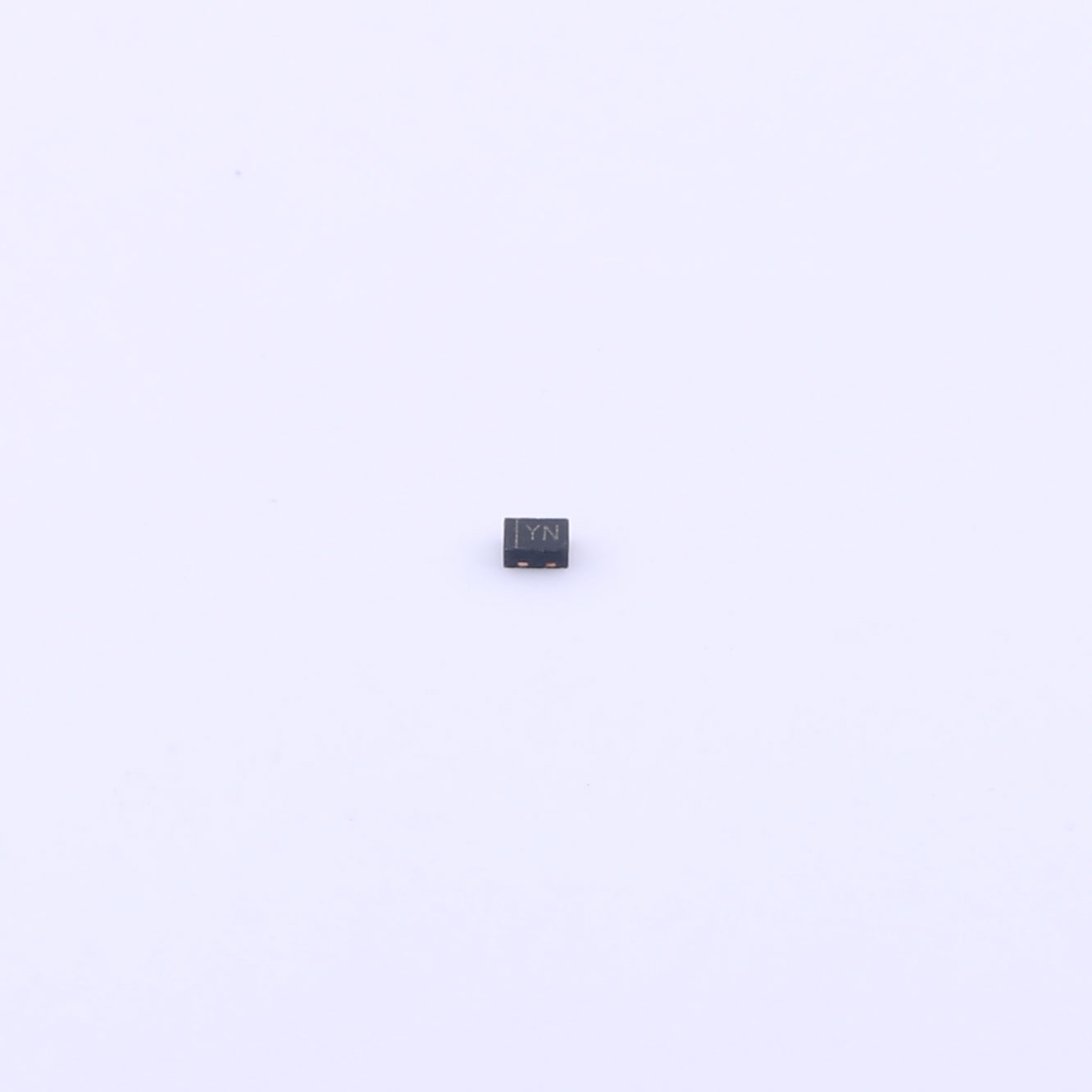

SLESD8D36V ESD Protection Diode DFN1006
VRWM(V):36V
VBR min(V):40V
IR(A):5μA
VC(V):55V
CJ(pF):28pF
Package:DFN1006

Product Details

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.


Description
The SLESD8D36V is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications.

Features

● Transient protection for high-speed data lines

   IEC 61000-4-2 (ESD) ±8kV (Contact)

                                     ±15kV (Air)

● Protects one directional I/O or Vcc line

● Low clamping voltage

● Working voltages : 36V

● Low leakage current


Applications

● Cell Phone Handsets and Accessories

● Microprocessor based equipment

● Personal Digital Assistants (PDA’s)

● Notebooks, Desktops, and Servers

● Portable Instrumentation

● Peripherals

● LED bypass

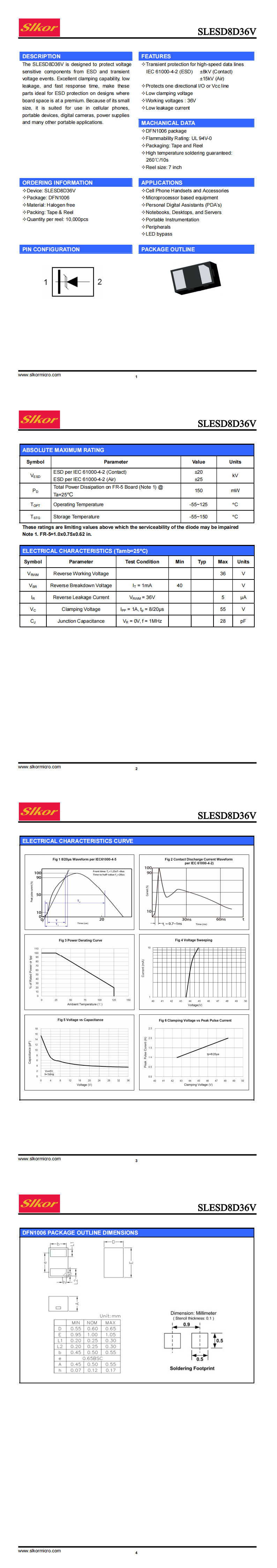

SLESD8D36V DFN1006_00.png
