Description

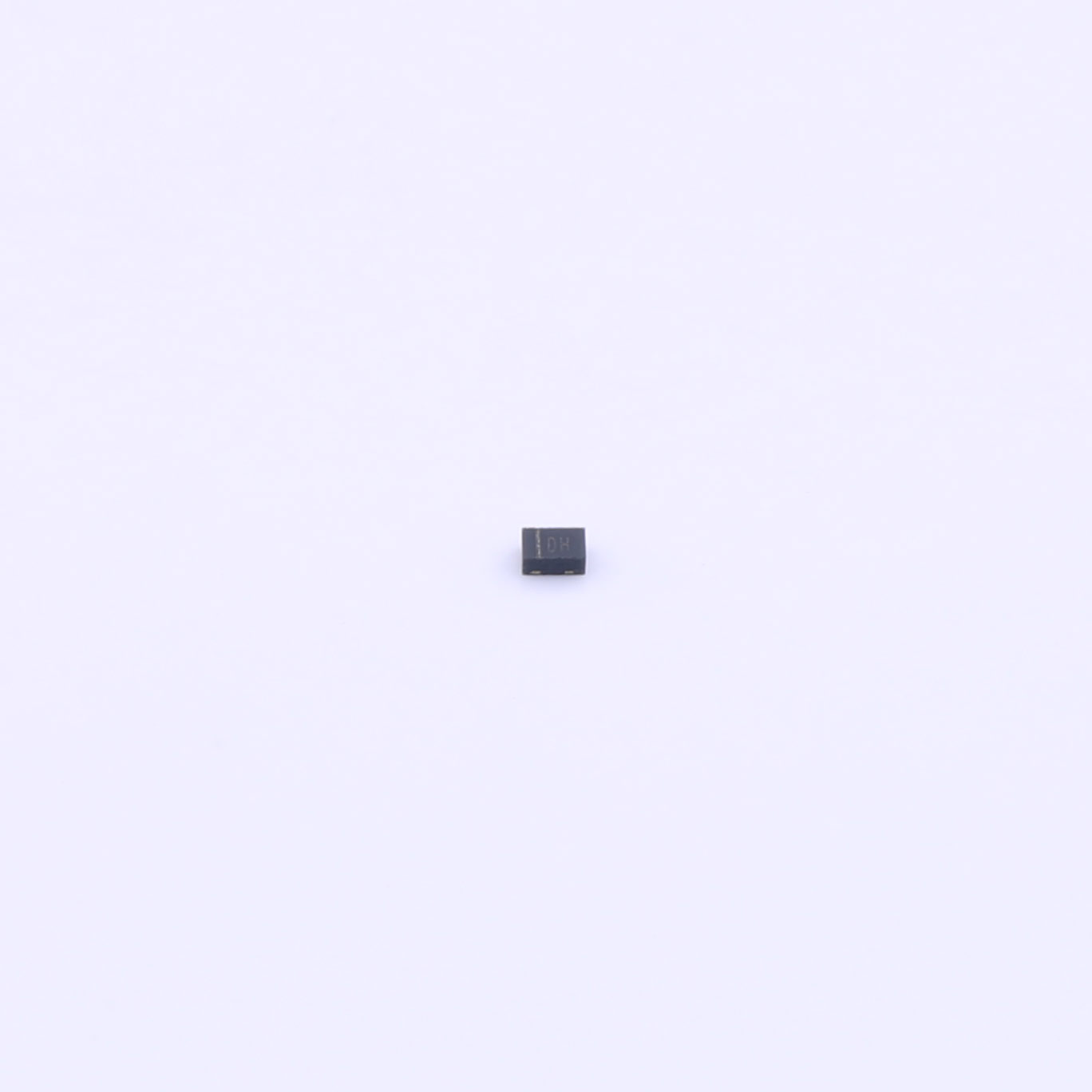

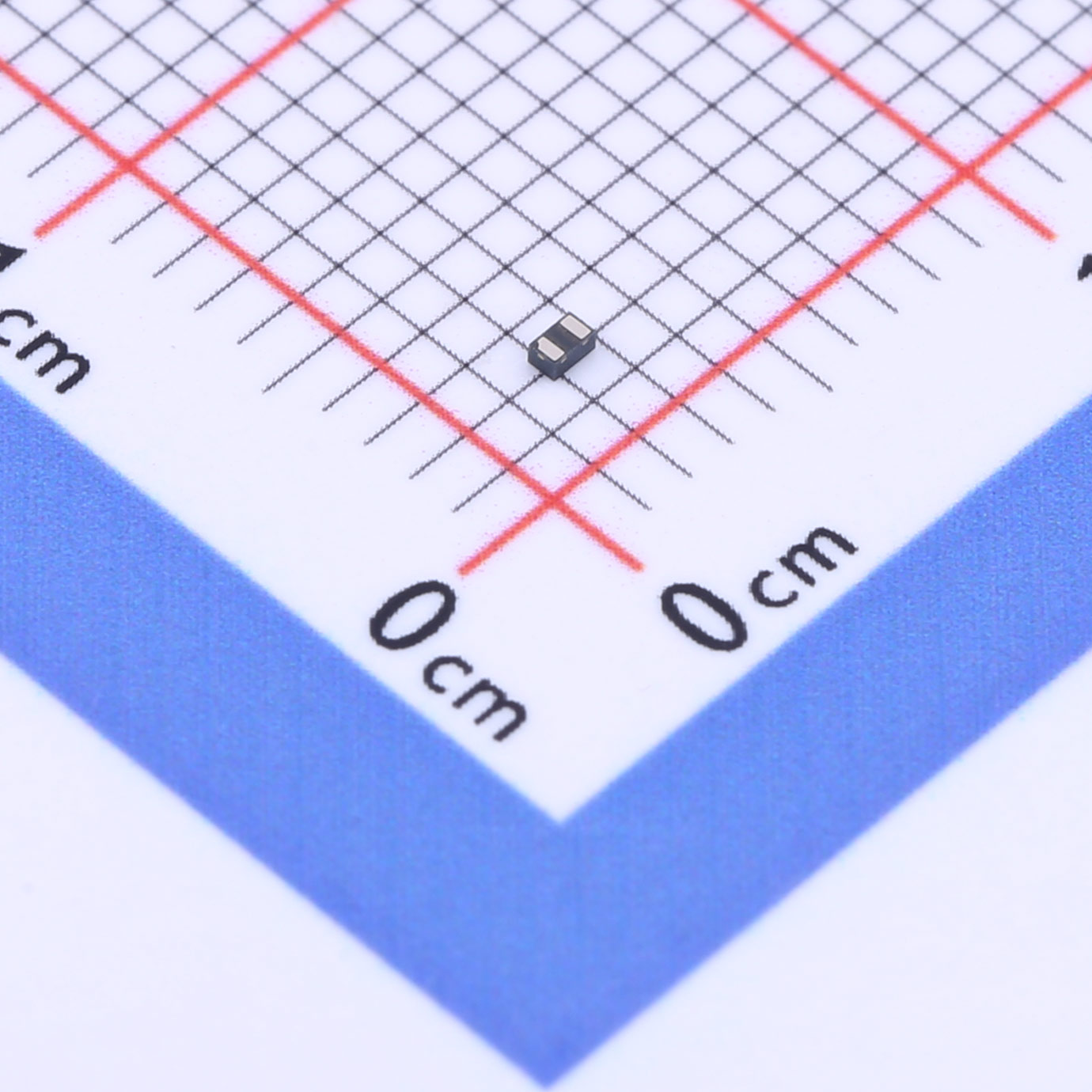

WE24DF-B is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for data, control or power lines. With maximum capacitance of 17pF only, WE24DF-B is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8kV contact discharge), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc. WE24DF-B uses ultra-small DFN1006 package. Each WE24DF-B device can protect one data line. It offers system designers flexibility to protect single data line where space is a premium concern.

Features

● IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)

● IEC61000-4-4 (EFT) 40A (5/50ηs)

● IEC61000-4-5 (Lighting) 3A (8/20μs)

● 200 Watts Peak Pulse Power per (tp=8/20μs)

● Working voltages : 24V

● Low clamping voltage

● Low leakage current

Application

● Serial and Parallel Ports

● Notebooks, Desktops, Servers

● Projection TV

● Cellular handsets and accessories

● Portable instrumentation

● Peripherals
