Low Capacitance TVS/ESD Protection Diode

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description

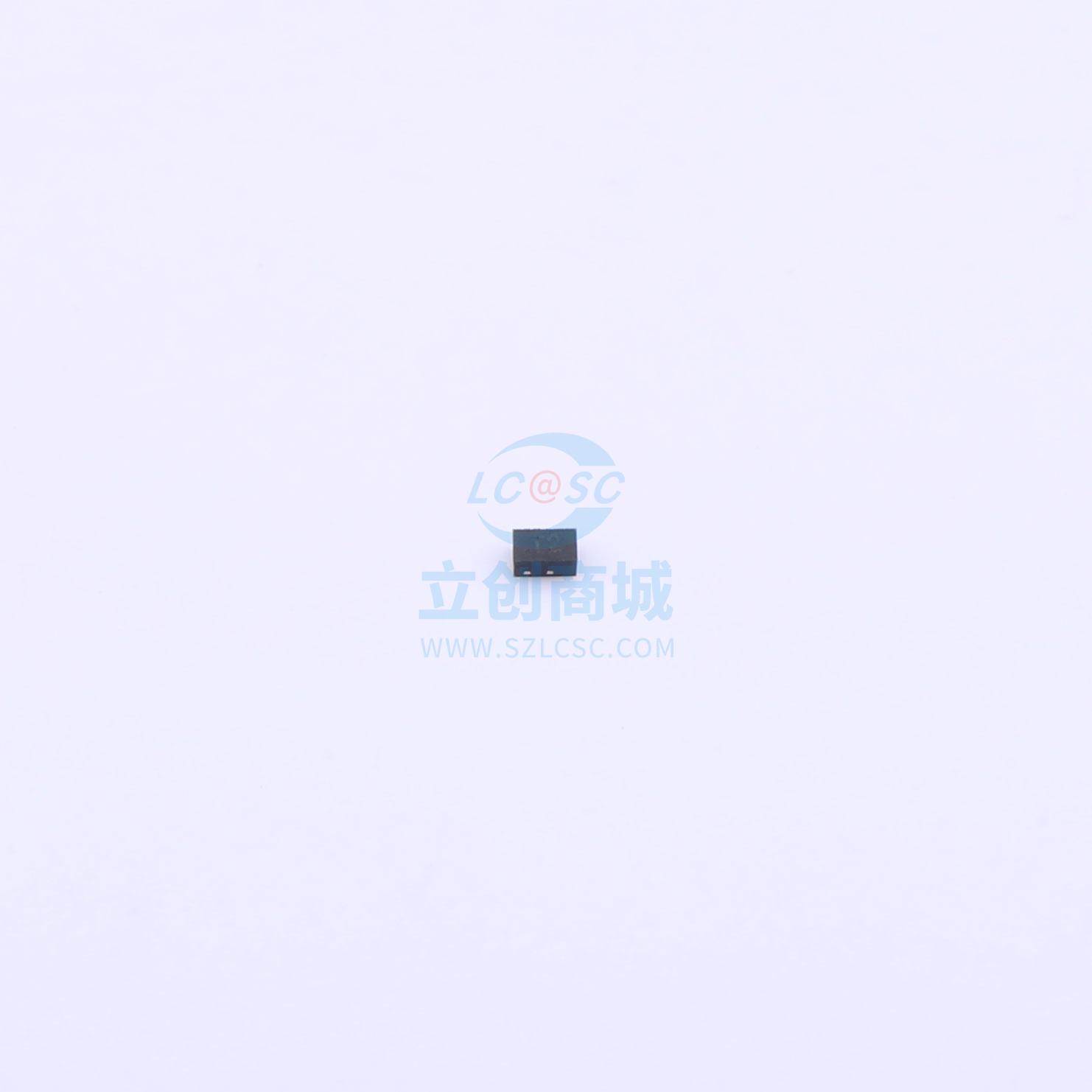

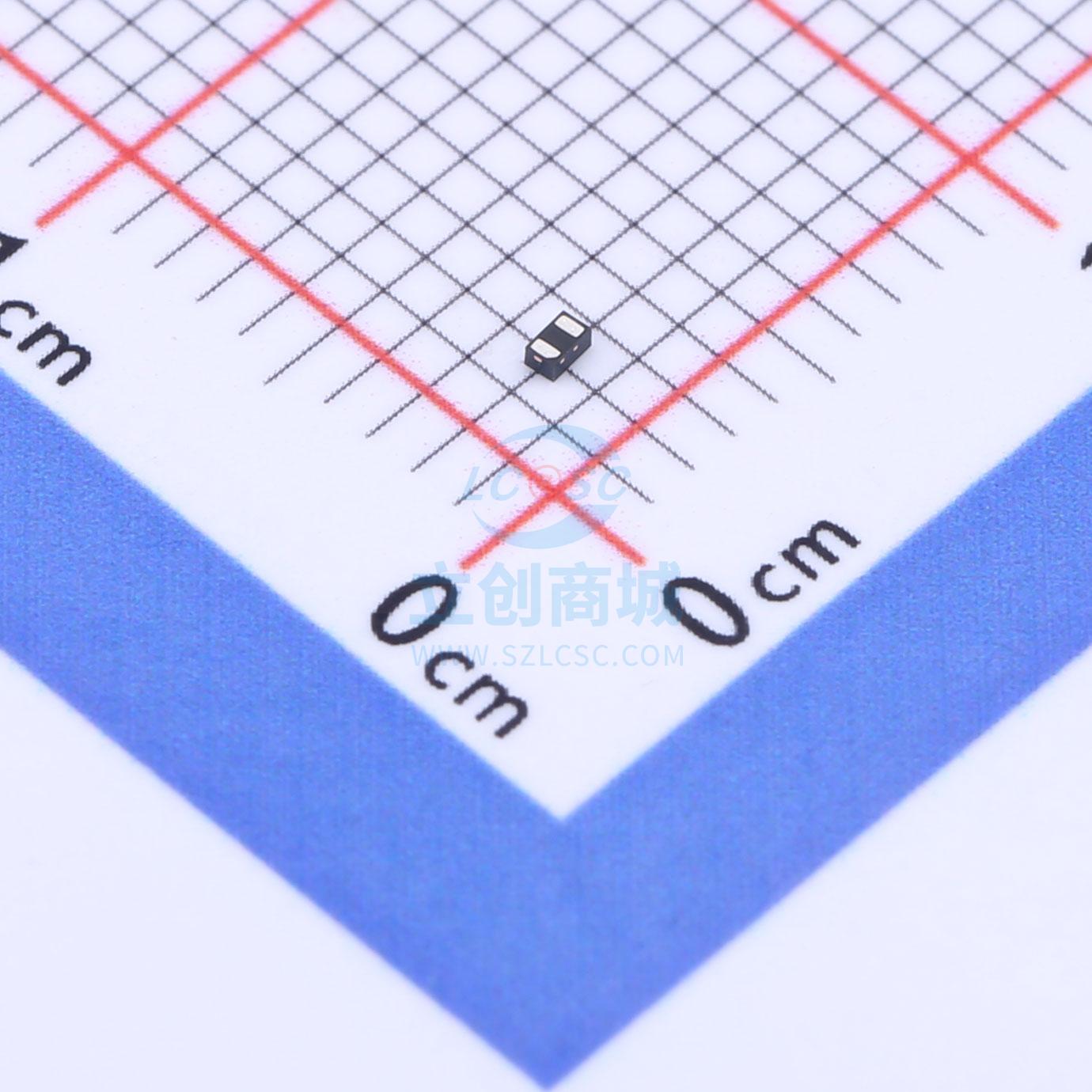

WE07DF-B is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for data, control or power lines. With maximum capacitance of 30pF only, WE07DF-B is designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8kV contact discharge), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc. WE07DF-B uses ultra-small DFN1006 package. Each WE07DF-B device can protect one data line. It offers system designers flexibility to protect single data line where space is a premium concern.

Features

● Peak Power Dissipation 150 W (8/20μs)

● Stand-off voltage:7V

● Low capacitance 15pF(Maximum)

● Replacement for MLV(0402)

● Protects I/O Port

● Low Clamping Voltage

● Low Leakage

● Low Capacitance

● Response Time is <1ns

● Meets MSL 1 Requirements

● ROHS compliant

Applications

● Serial and Parallel Ports

● Notebooks, Desktops, Servers

● Projection TV

● Cellular handsets and accessories

● Portable instrumentation

● Peripherals

● MP3 Players
