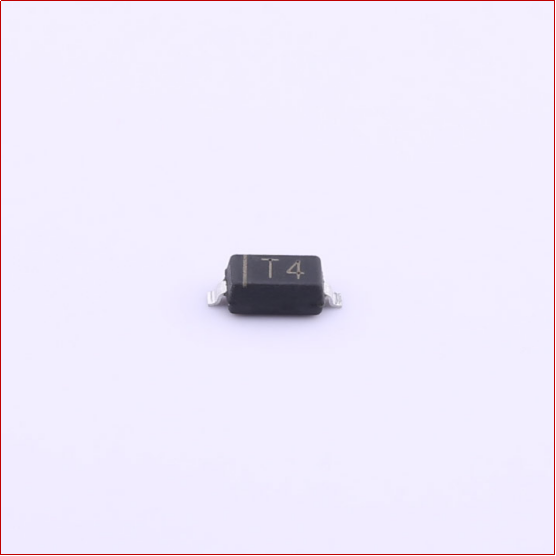

1N4148W Overview

The 1N4148W is a small, high-speed switching diode that is widely used in electronic circuits due to its excellent switching performance and broad applicability. As a standard silicon diode, the 1N4148W provides quick response times in transient conditions and is primarily used in circuits with high signal frequencies for unidirectional conduction and isolation. These characteristics make it essential in communications, computer motherboards, television circuits, and industrial control systems.

Key Features and Operating Principle

The 1N4148W has a maximum reverse voltage of 100V and a forward current rating of 1A, with a low forward voltage drop of approximately 0.7V. This compact diode is made from silicon, offering excellent conductivity and thermal resistance, allowing it to operate reliably in high-temperature environments. Its switching speed is extremely fast, typically in the nanosecond range, making it particularly suitable for high-speed switching circuits.

When operating, the 1N4148W conducts current under forward bias while blocking current under reverse bias, thereby enabling its unidirectional conduction feature. This characteristic enhances its performance in signal transmission and current isolation, especially in applications requiring high-frequency signal processing.

Applications

1. Communication Devices: The 1N4148W is commonly used in signal processing circuits within communication devices to ensure signal integrity and transmission efficiency. Its fast switching characteristics effectively eliminate noise and signal interference, which is crucial in radio communications, telephone exchanges, and networking equipment.

2. Computer Motherboards: In computer motherboards, the 1N4148W is widely utilized for power management and signal isolation. It protects sensitive components in power circuits from damage due to reverse currents. Additionally, in the design of data buses and signal lines, the 1N4148W ensures unidirectional data flow, preventing signal confusion.

3. Television Circuits: In the design of television circuits, the 1N4148W is employed as a rectifier and processing element for synchronization signals. Given the high frequency of television signals, its quick response capabilities allow for efficient handling of video signals, ensuring stable and clear images.

4. Industrial Control Circuits: The reliability and durability of the 1N4148W make it an important component in industrial control systems. In various sensors, actuators, and control circuits, the 1N4148W provides effective current isolation, protecting controllers from overcurrent and voltage transients.

Performance Advantages

The 1N4148W offers several significant performance advantages over other types of diodes. Firstly, its extremely fast switching speed meets the demands for high frequencies in modern electronic products. Secondly, its low forward voltage drop reduces energy loss during conduction, enhancing the overall efficiency of circuits. Furthermore, the 1N4148W maintains stable performance even under high-temperature conditions, providing good adaptability across various applications.

Design Considerations

When designing circuits that utilize the 1N4148W, several key factors must be considered. First, ensure that the diode’s reverse voltage does not exceed its rated value to prevent breakdown. Designers should also pay attention to the forward current limit, ensuring it does not surpass the maximum rating to avoid overheating or damage. Additionally, circuit layout should consider the routing of signal lines and shielding to minimize interference.

Conclusion

As a small, high-speed switching diode, the 1N4148W holds a significant position in modern electronic circuits due to its wide range of applications and outstanding performance. From communication devices to computer motherboards, television circuits, and industrial control systems, the versatility and efficiency of the 1N4148W provide reliable support across various applications. With ongoing technological advancements, the 1N4148W will continue to play a vital role and remain an indispensable component in numerous electronic products. Whether designing new products or maintaining existing equipment, the 1N4148W is an important choice to consider.
