Introduction to SLKOR LDO Series
In modern electronic design, Low Dropout Regulators (LDOs) are essential power management components widely used in various devices. SLKOR, a well-known semiconductor manufacturer, offers a product line of LDOs including the 1117 series, 73 series, 75 series, and SL4949, which have become popular choices in the market. These LDOs can replace other models like LM1117-XX, HT73XX, and HT75XX, providing designers with greater flexibility and options.
1. Basic Principles of LDOs
An LDO is a device that stabilizes the input voltage to a specified output voltage. Its main advantages include operating with a small input-output voltage differential and maintaining low voltage ripple and noise, making it ideal for sensitive electronic devices. The working principle of an LDO is based on a feedback mechanism that adjusts the output voltage in response to differences between the output and reference voltages.
2. Overview of SLKOR LDO Series

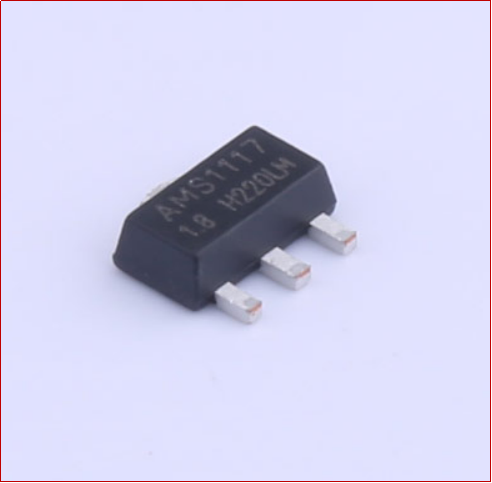

2.1 1117 Series
The 1117 series is a high-performance LDO from SLKOR, featuring:
Output Current: It can provide a maximum output current of up to 1A, suitable for most medium to low-power applications.
Low Dropout Voltage: A typical dropout voltage of 1.2V allows the LDO to operate even when the input voltage is only 1.2V higher than the output voltage.
Multiple Output Voltage Options: Available in various fixed output voltage versions for convenient selection.
2.2 73 Series
The 73 series LDO is characterized by:
High Efficiency: This series performs excellently under light load conditions with low quiescent current, making it suitable for portable devices.
Wide Input Voltage Range: Supports a broader range of input voltages to meet different application requirements.
Small Package Size: Typically offered in compact packages, ideal for space-constrained circuit board designs.
2.3 75 Series
The 75 series further optimizes performance, especially in:
Lower Noise Characteristics: This series exhibits excellent output noise performance, very suitable for audio and RF applications.
Thermal Protection Feature: Built-in thermal shutdown protects the device from damage due to overheating.
Short-Circuit Protection: Automatically enters protection mode during output short circuits, ensuring circuit safety.
2.4 SL4949 Series
The SL4949 is an LDO designed for high-performance applications, featuring:
Fast Transient Response: The SL4949 maintains output voltage stability during load changes with a rapid transient response.
Adjustable Output Voltage: Offers adjustable output voltage options to meet specific application needs.
Excellent Linearity: Exhibits high linearity under various input and output conditions.
3. Application Areas
SLKOR's LDO series is widely used in multiple fields, including but not limited to:
Consumer Electronics: Such as smartphones, tablets, and digital cameras, which require stable voltage output for high power management demands.
Industrial Equipment: Used in various industrial control systems to provide stable power for sensors, controllers, etc.
Communication Devices: Wireless communication devices require low-noise and high-stability power supplies, which are well met by SLKOR's LDOs.
Medical Equipment: Medical instruments necessitate high stability in power supply, where high-performance LDOs can significantly enhance device reliability.
4. Alternative Analysis
SLKOR's LDO series can replace models such as LM1117-XX, HT73XX, and HT75XX in many applications. These alternatives not only offer similar performance but also provide advantages in terms of price, availability, and design flexibility. For example:
Compatibility: In circuit design, SLKOR's LDO series can seamlessly integrate into existing circuit architectures, simplifying redesign complexities.
Cost-effectiveness: Compared to some imported brands, SLKOR's products are more competitively priced, helping to reduce overall manufacturing costs.
Technical Support: SLKOR provides comprehensive technical support and documentation, assisting engineers in better understanding and utilizing their products during the design process.
5. Conclusion
Overall, SLKOR's LDO series stands out due to its excellent performance, diverse product line, and broad application scenarios, making it a preferred power management solution for designers and engineers. In the future, as electronic devices increasingly demand advanced power management, SLKOR will continue to focus on technological innovation to drive the further development of LDO products. Whether in consumer electronics, industrial equipment, or communications, SLKOR's LDO series demonstrates substantial market competitiveness and application potential.
