Description

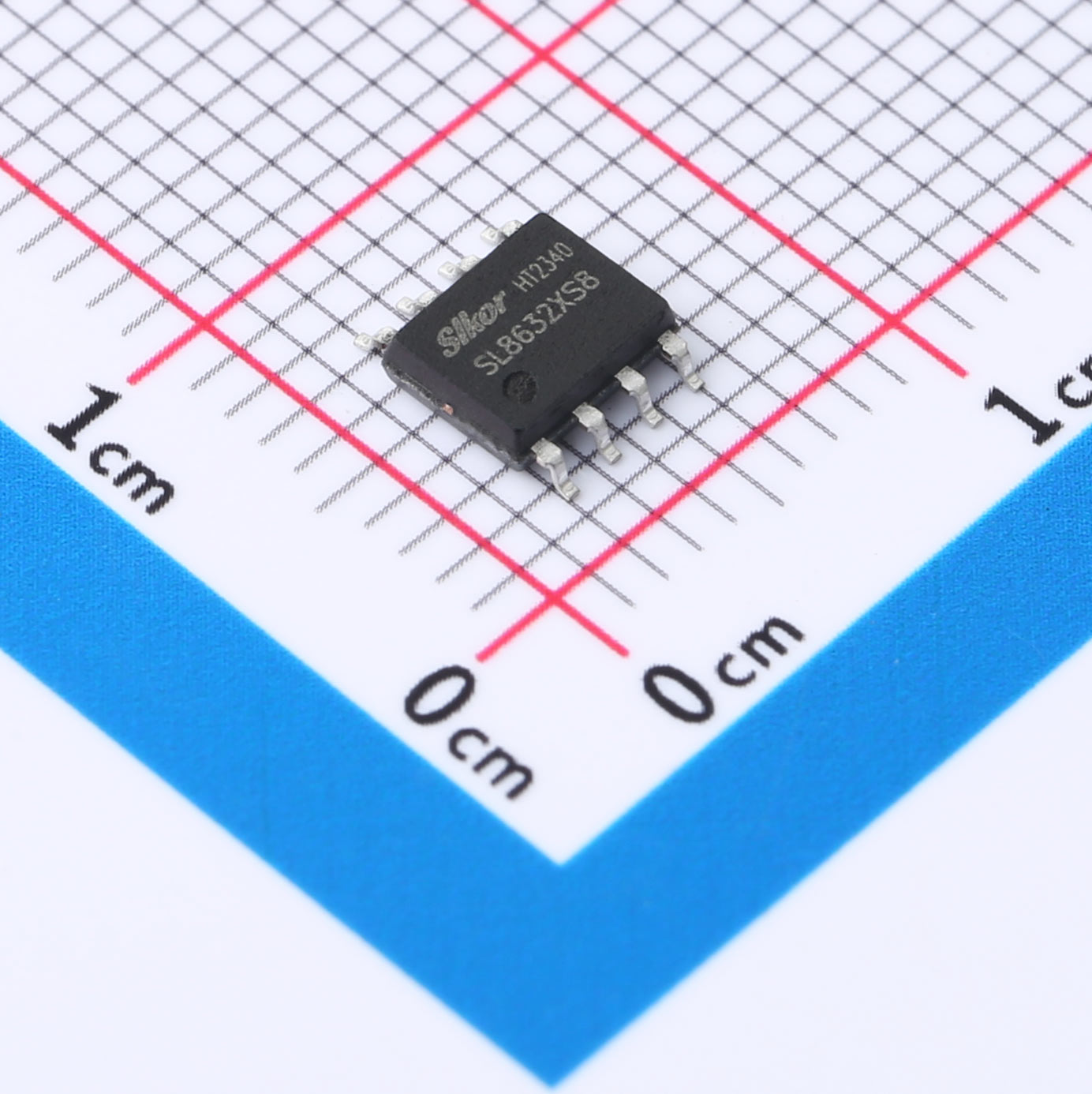

The SL8631 (single), SL8632 (dual), and SL8634 (quad) are low-noise, low-voltage, and micropower operational amplifiers. The SL863x family features 6.5MHz bandwidth, 4V/μs slew rate, and 480μA quiescent current per amplifier (5V supply voltage). The SL863x family of operational amplifiers can be designed into a wide range of applications. The SL863x operational amplifiers are designed to provide optimal performance for low-voltage and low-noise systems. Their input common-mode voltage range includes ground, and the maximum input offset voltage is 4.2mV. The SL863x can provide rail-to-rail output swing under heavy output loads. The SL863x family is suitable for single or dual supplies from +2.1V to +5.5V. All models are specified to operate over the extended industrial temperature range of -40℃ to +125℃. The SL8631 is available in 5-pin SC70 and SOT-23 packages. The SL8632 is available in 8-pin MSOP, DFN2*2, TSSOP, and SOP packages. The SL8634 is available in 14-pin TSSOP and SOP packages.

Features

●High conversion rate: 4V/µs

●Gain bandwidth product: 6.5MHz

●Low power: 480μA supply current per amplifier

●Settling time to 0.1% (2V step): 1μs

●Low noise: 20nV/√Hz@10kHz

●High gain: 103dB

●Low offset voltage: 4.2mV (maximum)

●Unity-gain stable

●Rail-to-rail input and output

  Input voltage range: -0.1V to +5.1V (5V supply voltage)

●Operating supply range: +2.1V to +5.5V

●Operating temperature range: -40°C to +125°C

Applications

●Photodiode and sensor interface

●Audio output

●Active filter

●Driving A/D converters

●Portable and battery-powered devices
