【Daily Highlight】The Voltage Regulator Diode BZT52C22

release time:2024-05-15Author source:SlkorBrowse:6031

Introduction:

In the intricate world of electronics, where stability and reliability are paramount, precision components such as the BZT52C22 Zener diode stand as indispensable tools for engineers and designers. This article delves into the specifications, features, and applications of the BZT52C22, shedding light on its significance in modern electronic designs.

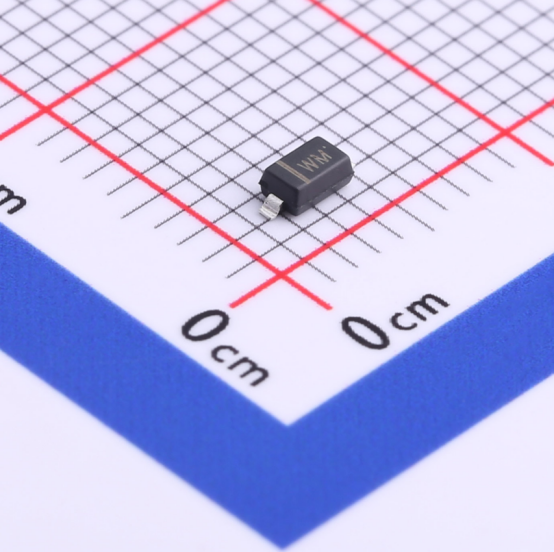

Slkor Voltage Regulator Diode BZT52C22 product photo



Understanding the BZT52C22:



The BZT52C22 Zener diode, with its alphanumeric nomenclature, embodies key characteristics crucial for voltage regulation in electronic systems. Let's break down its specifications:



Model Number: The "BZT" prefix signifies its classification as a Zener diode. The "52" designation denotes a maximum reverse working voltage of 5.2V, while the "C22" suffix represents its specific model within the BZT52C series.



VZTyp-22V: This parameter denotes the typical Zener voltage of the diode. At standard conditions, typically around 25°C, the BZT52C22 maintains a Zener voltage of approximately 22V. This characteristic ensures a consistent voltage across its terminals, critical for various electronic applications.



PD 500mW: The maximum power dissipation of the BZT52C22 is rated at 500 milliwatts. This specification underscores the diode's ability to handle substantial power levels without compromising its functionality, making it suitable for diverse operational environments.



Ir 100nA@15.4V: Reverse leakage current is a crucial parameter for Zener diodes, indicating the amount of current that flows in the reverse direction when a specific reverse voltage is applied. At a reverse voltage of 15.4V, the BZT52C22 exhibits a reverse leakage current of 100 nanoamps, ensuring minimal power wastage and enhancing overall efficiency.




Slkor Voltage Regulator Diode BZT52C22 specification



Features and Advantages:



The BZT52C22 Zener diode boasts several features that contribute to its widespread adoption and utility in electronic circuits:



Precision Voltage Regulation: With its stable Zener voltage characteristic, the BZT52C22 facilitates precise voltage regulation, essential for applications requiring consistent voltage levels.



Compact Form Factor: Packaged in SOD-123 form, the BZT52C22 offers a compact footprint, making it suitable for space-constrained designs without compromising performance.



Low Reverse Leakage: The diode's low reverse leakage current ensures minimal power dissipation, enhancing energy efficiency and prolonging battery life in portable electronic devices.



Wide Operating Temperature Range: Designed to operate reliably across a broad temperature range, the BZT52C22 maintains its performance integrity under varying environmental conditions, catering to diverse application scenarios.


Parameters of Slkor Voltage Regulator Diode BZT52C22



Applications:



The versatility and reliability of the BZT52C22 Zener diode render it indispensable across a spectrum of electronic applications, including but not limited to:



Voltage Regulation Circuits: From voltage stabilizers to voltage reference circuits, the BZT52C22 ensures consistent voltage output, vital for system stability and performance optimization.



Power Management Systems: In conjunction with other components, the diode facilitates efficient power distribution and management, safeguarding sensitive electronic components against voltage fluctuations.



Analog Circuitry: The BZT52C22 finds utility in analog signal processing circuits, where precise voltage references are essential for accurate signal conditioning and processing.



Consumer Electronics: From smartphones to household appliances, the BZT52C22 contributes to the seamless operation of various consumer electronic devices, enhancing user experience and reliability.



Conclusion:



In summary, the BZT52C22 Zener diode epitomizes precision and reliability in voltage regulation, offering engineers and designers a versatile solution for diverse electronic applications. With its robust specifications, compact design, and broad applicability, the BZT52C22 continues to serve as a cornerstone of modern electronic designs, empowering innovation across industries and driving technological advancement forward.
