LED lighting technology has become increasingly important in the modern lighting industry due to its advantages such as high efficiency, environmental friendliness, and long lifespan. However, the design of LED driver power supplies is a complex and crucial issue that requires specialized driver circuits to ensure the stable illumination of LEDs. In this process, Medium Voltage MOSFETs play a vital role. This article will delve into the application of Medium Voltage MOSFETs in LED lighting in detail.

As a solid-state light source, LEDs have fundamentally different light emission principles compared to traditional incandescent and fluorescent lamps. LEDs require a constant current or voltage for driving to maintain stable illumination. Therefore, the design of LED driver power supplies needs to consider multiple aspects such as the stability, efficiency, and reliability of current and voltage. In LED driver power supplies, Medium Voltage MOSFETs, as excellent switch components, are widely used to control current and voltage. With advantages like fast switching speed, low on-resistance, and good thermal stability, Medium Voltage MOSFETs can meet the requirements of high efficiency, stability, and reliability for LED driver power supplies.

In LED lighting applications, Medium Voltage MOSFETs are mainly used to form constant current or constant voltage circuits. By adjusting the gate voltage, the conduction level of the device can be controlled, enabling precise control of LED current. This control method not only ensures stable LED illumination but also effectively prevents LED damage caused by excessive current. Power semiconductor devices provide strong and efficient support in LED lighting circuits, and Slkor has demonstrated outstanding technical strength and product quality in the field of Medium Voltage MOSFETs, known for its reliable quality and wide applications.

Slkor (www.slkoric.com) is a company dedicated to developing and producing high-performance electronic components, including power devices, diodes, transistors, Hall elements, thyristors, interface chips, and other reputable products in the electronics industry. With its high-performance products, reliability, and environmentally friendly energy-saving advantages, Slkor has earned the trust and praise of a wide range of customers.

Slkor Semiconductor silicon carbide field-effect transistor

Medium Voltage MOSFETs can also play a role in energy saving in LED driver power supplies. Due to their low on-resistance and low heat generation, they can reduce energy loss during operation, thus increasing energy efficiency. This is undoubtedly an important advantage for devices like LED lighting that need to operate for extended periods. However, to ensure that Medium Voltage MOSFETs deliver optimal performance in LED lighting, precise design and selection are necessary. When choosing Medium Voltage MOSFETs, key parameters such as breakdown voltage, threshold voltage, on-resistance, etc., need to be considered to ensure they meet the operational requirements of LED driver power supplies. Additionally, attention should be paid to the thermal management of Medium Voltage MOSFETs to prevent performance degradation or damage due to overheating.

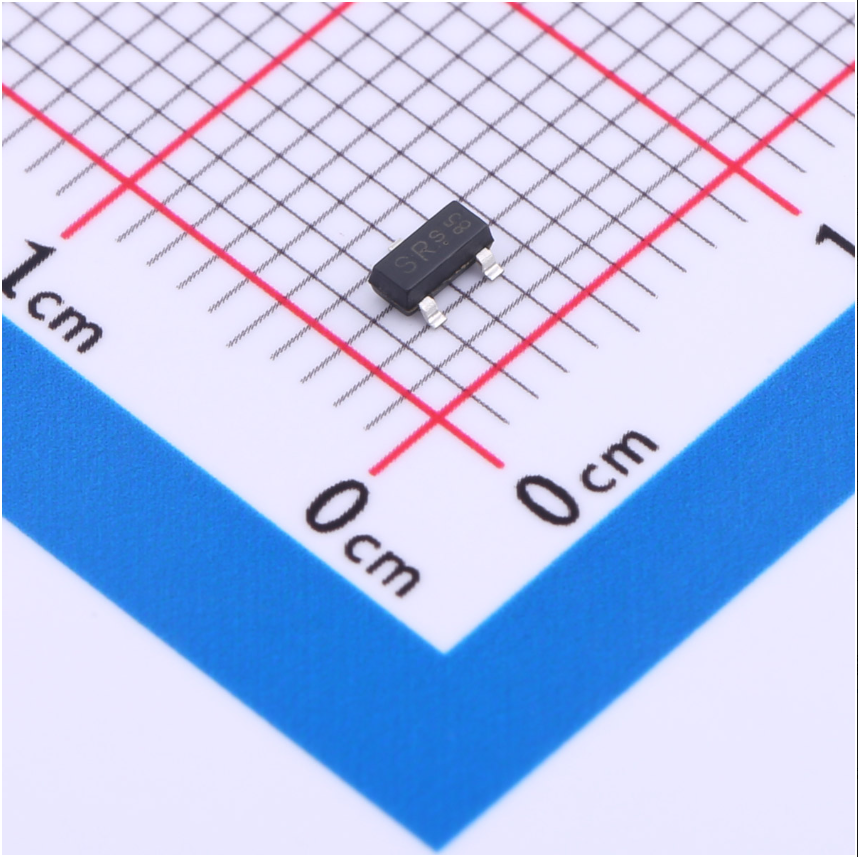

Slkor Medium Voltage MOSFET BSS131 product photo

The BSS131 is an N-channel MOSFET with excellent performance characteristics. It has a high voltage tolerance (240V) and a moderate current rating (0.1A), making it ideal for low-voltage and Medium Voltage switching and power control applications. In addition, its low on-resistance (9.07Ω @ 4.5V, 0.09A) and low threshold voltage (1.4V @ 56μA) ensure reduced power loss during operation. This device plays a crucial role in various electronic devices and circuits, providing strong support for enhancing the performance and energy efficiency of electronic equipment and systems.

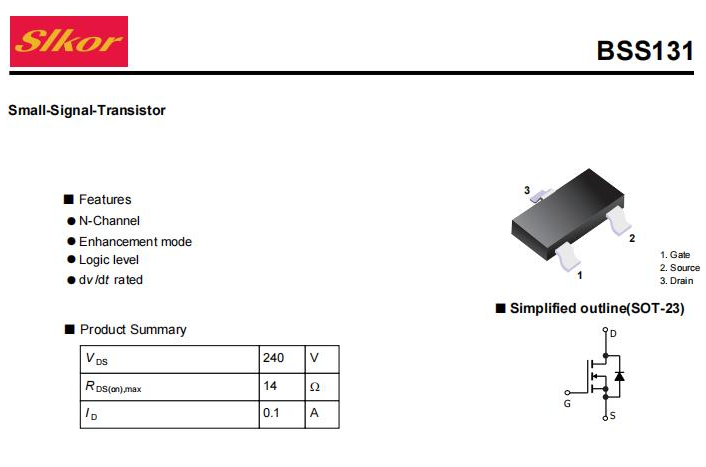

Slkor Medium Voltage MOSFET BSS131

Firstly, the BSS131's 240V drain-source voltage gives it a high voltage tolerance, making it suitable for use in various low and Medium Voltage power management systems for switching and power control. It can precisely regulate current and voltage, enabling efficient power conversion and stable output. The enhancement mode is a working mode of the BSS131, characterized by the MOSFET transitioning from cutoff to conduction only when the voltage between the gate and source (VGS) reaches or exceeds a certain threshold voltage (Vth). This feature allows efficient current control at high voltages, which is crucial for applications requiring high-precision current regulation. Furthermore, the enhancement mode also contributes to its excellent switching performance. The BSS131 also features logic-level characteristics, enabling the device to accurately identify and process signals in digital circuits. Additionally, these logic-level characteristics provide convenience for its compatibility and interchangeability in digital circuits.

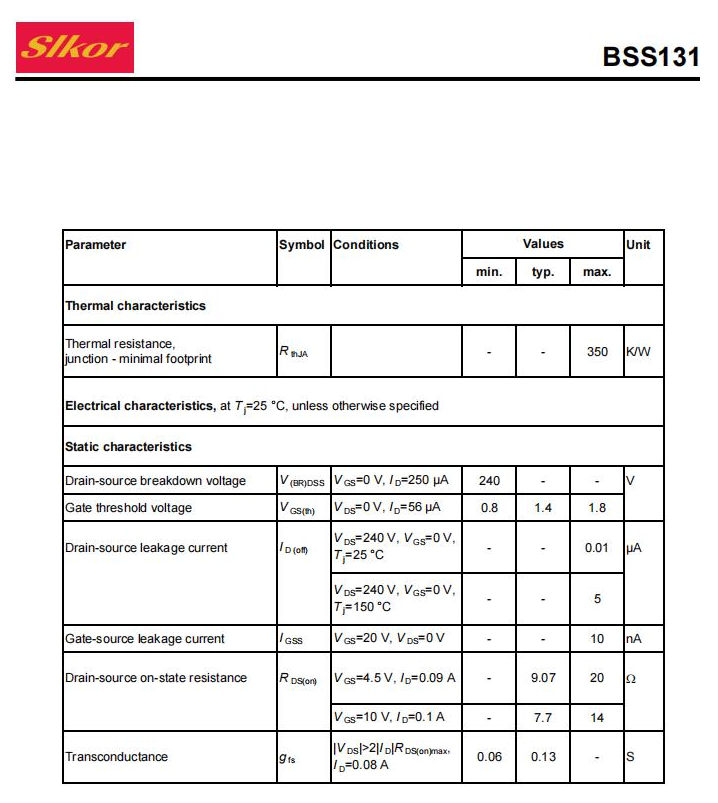

Parameters of Slkor Medium Voltage MOSFET BSS131

With the continuous development of LED lighting technology, there is a growing demand for Medium Voltage MOSFETs. In the future, as new materials are researched and applied, the performance of Medium Voltage MOSFETs will be further enhanced, leading to a wider range of applications in LED lighting.In summary, the Medium Voltage MOSFET BSS131 plays a significant role in LED lighting. It not only ensures stable illumination of LEDs but also enhances energy efficiency and reduces energy waste. Therefore, when designing and manufacturing LED driver power supplies, the application of Medium Voltage MOSFET BSS131 should be fully considered to achieve a more efficient and environmentally friendly LED lighting system. As an outstanding company in the field of semiconductor devices, Slkor has developed a series of power semiconductor devices and drive modules suitable for LED lighting technology, leveraging its advanced technology and extensive experience. Furthermore, Slkor will continue to exert efforts to provide more possibilities for the intelligence and automation of society.

Slkor Honors and Achievements

About Slkor：

Slkor (www.slkoric.com) offers a range of high-end products including silicon carbide (SiC) diodes, SiC MOSFETs, IGBTs, fifth-generation ultra-fast recovery power diodes, and more, catering to industries such as new energy vehicles, high-end equipment, communication power devices, solar photovoltaics, medical equipment, and industrial automation. Their general-purpose products include Schottky diodes, ESD protection diodes, TVS transient suppression diodes, general-purpose diodes, and transistors. They also provide power devices such as high, medium, and low-voltage MOSFETs, silicon-controlled rectifiers, bridge stacks, as well as power management chips like LDOs, AC-DC converters, ADC chips, along with complementary products like Hall sensors, high-speed optocouplers, crystal oscillators, and more. These products find wide applications in smartphones, laptops, robots, smart homes, IoT, LED lighting, consumer electronics, wearable devices, and various other smart interconnected products!
