In the field of semiconductor discrete devices, voltage regulator diodes are widely used in various electronic systems due to their unique voltage regulation capabilities. Today, we will focus on a voltage regulator diode with outstanding technical characteristics—the MMBZ5257B. We will delve into its key parameters, including voltage regulation value, power, and reverse current, while also exploring its application prospects.

1. Technical Characteristics Overview

Voltage Regulation Value (Nominal Value and Range)

The nominal voltage regulation value of the MMBZ5257B is 33V, with a regulation range between 31.35V and 34.65V. This precise voltage regulation performance enables the MMBZ5257B to provide stable voltage output under various operating conditions, effectively protecting subsequent circuits from voltage fluctuations.

Slkor Voltage Regulator Diode MMBZ5257B product photo

Power

The rated power of this diode is 350mW, a moderate power level that ensures the voltage regulator diode is unlikely to overheat during operation while meeting the power requirements of most application scenarios.

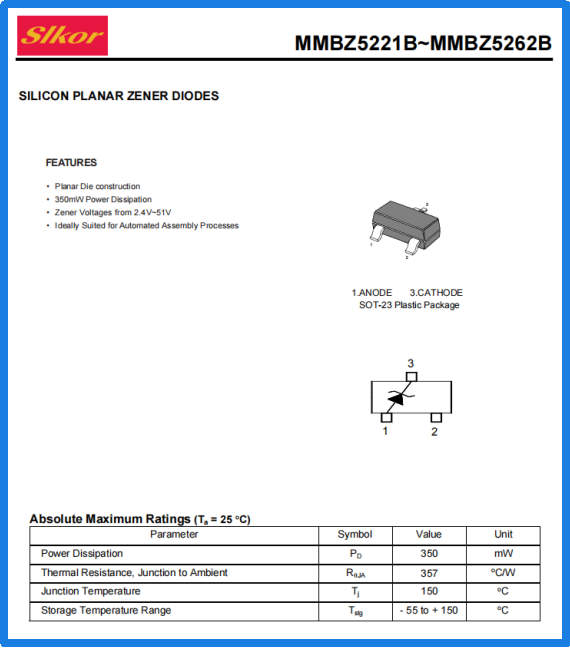

Slkor Voltage Regulator Diode MMBZ5257B specification

Reverse Current (Ir)

The reverse current of the MMBZ5257B is 0.1µA, which is extremely low. This means that when the diode is in a reverse-bias state, almost no current flows, thus ensuring circuit stability and reliability.

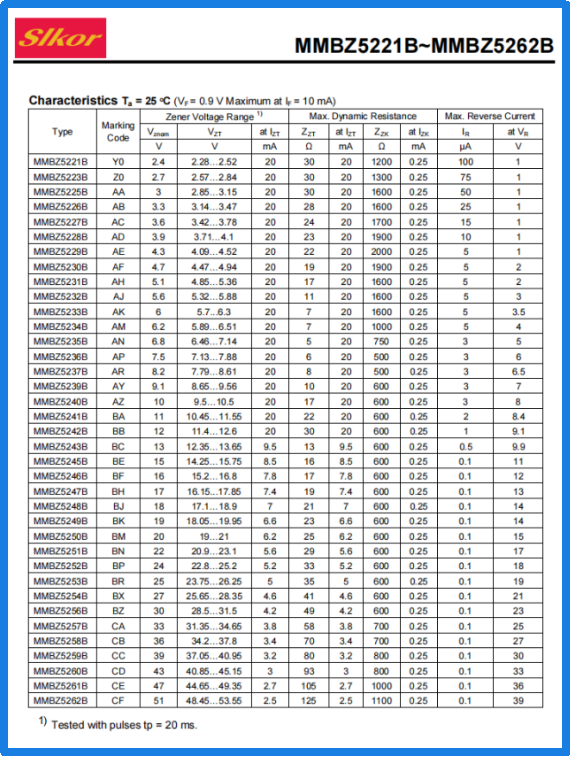

Parameters of Slkor Voltage Regulator Diode MMBZ5257B

2. Application Examples

With its excellent technical characteristics, the MMBZ5257B voltage regulator diode finds extensive applications in numerous fields. For instance, in the automotive electronics sector, as the trends of intelligence and electrification accelerate, the demand for power stability in onboard electronic systems is increasing. The MMBZ5257B can provide stable voltage support for critical components such as in-car audio systems and navigation systems, ensuring these systems consistently operate normally in complex driving environments.

Additionally, in industrial automation and communication equipment, the MMBZ5257B has gained favor among many designers due to its exceptional voltage regulation performance and reliability.

3. Future Trend Analysis

As technology continues to advance and semiconductor manufacturing processes mature, the technical level of voltage regulator diodes will continue to improve. In the future, the MMBZ5257B is expected to enhance power density and reduce package size while maintaining its excellent performance, thus better meeting market demands for high-performance, compact voltage regulator diodes.

At the same time, with the rapid development of emerging markets such as electric vehicles and the Internet of Things, the application fields for voltage regulator diodes will further expand. The MMBZ5257B is anticipated to play an increasingly important role in these emerging markets, providing robust support for the stable operation of various electronic systems.

4. Application Cases of Voltage Regulator Diodes in Embedded Systems

As the core of modern intelligent devices, embedded systems have high demands for power management. Voltage regulator diodes play a crucial role in embedded systems due to their unique voltage regulation characteristics. Below, we will introduce application cases of voltage regulator diodes in embedded systems in detail.

● Application Scenarios

Taking the smart home field as an example, embedded systems are widely used in devices like smart locks, smart lighting, and smart appliances. These devices require stable and reliable power supply to ensure normal operation. Voltage regulator diodes play a key role in the power management modules of these devices, providing stable voltage output to ensure their stable operation.

● Technical Solutions

In the power management module of smart home devices, voltage regulator diodes serve as critical components, working alongside capacitors, resistors, and other components to form a voltage regulation circuit. When input voltage fluctuates, the voltage regulator diode can quickly respond by adjusting its impedance to maintain stable output voltage. This technical solution effectively prevents device failures or performance degradation caused by voltage fluctuations.

● Advantage Analysis

- High Stability: Voltage regulator diodes possess precise voltage regulation capabilities, providing stable voltage output under various operating conditions. This allows embedded systems to maintain stable operation in complex power environments, enhancing device reliability and lifespan.

- Low Power Consumption: Voltage regulator diodes feature low power consumption, meeting the low-power design requirements of embedded systems. This helps reduce energy consumption, extend device battery life, and lower heat dissipation needs, simplifying system design.

- Cost-Effectiveness: As a cost-effective component, voltage regulator diodes can meet the power management needs of embedded systems while reducing system costs. This supports the widespread adoption and development of embedded systems applications, such as smart homes.

● Specific Case Study

For instance, in a particular smart lock, the internal embedded system utilizes a voltage regulator diode for power management. In practical applications, this smart lock can maintain stable operation under various power conditions, effectively recognizing user fingerprints and controlling the lock mechanism. Additionally, due to its low-power design, the smart lock performs exceptionally well in terms of battery life, meeting users’ needs for prolonged use. This successful case showcases the application value and potential of voltage regulator diodes in embedded systems.
