In the electronics industry, Zener diodes play a crucial role, especially in circuits requiring stable voltage output. Today, we focus on the BZT52B7V5BS Zener diode, which has garnered attention for its excellent regulation performance and efficient power handling capabilities.

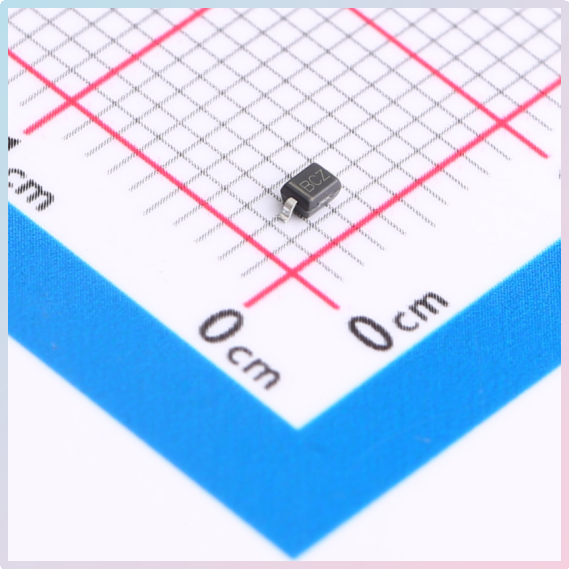

Slkor Voltage Regulator Diode BZT52B7V5BS product photo

Performance Features of Zener Diode BZT52B7V5BS

Firstly, the BZT52B7V5BS has a nominal Zener voltage of 7.5V, meaning it reliably outputs 7.5V under normal operating conditions. In practical use, its regulation range spans from 7.35V to 7.65V, ensuring circuit stability while providing flexibility to designers.

In terms of accuracy, the BZT52B7V5BS demonstrates high precision with a tolerance of ±5%. This minimal voltage fluctuation ensures stability and reliability in applications, a significant advantage for electronics requiring precise voltage control.

Additionally, the BZT52B7V5BS boasts impressive power handling capabilities, up to 400mW. This capability allows it to maintain stable voltage outputs even under higher loads, meeting the demands of various high-power electronic devices.

Notably, this Zener diode exhibits a reverse leakage current of only 1μA, indicating minimal current leakage under reverse voltage conditions. This characteristic helps reduce circuit power consumption and heat generation, thereby enhancing overall efficiency.

Application of Zener Diode BZT52B7V5BS in Industrial Automation Control Systems

In industrial automation control systems, voltage stability is crucial. Voltage fluctuations can lead to equipment failures and affect the accuracy and response time of the entire control system. The BZT52B7V5BS Zener diode significantly improves stability in these systems through its high precision regulation and low reverse leakage current characteristics.

The high precision regulation of the BZT52B7V5BS ensures a stable 7.5V voltage supply, crucial for sensors, actuators, and controllers in industrial automation control systems. The ±5% accuracy means these components operate in a consistently stable voltage environment, critical for maintaining accuracy and reliability, especially in environments requiring high precision control and monitoring.

The low reverse leakage current of the BZT52B7V5BS contributes to system stability by reducing power consumption and heat generation. In industrial automation control systems, overheating is a common issue that can degrade performance or even cause equipment damage. Using the BZT52B7V5BS helps manage heat effectively, thereby improving overall system stability.

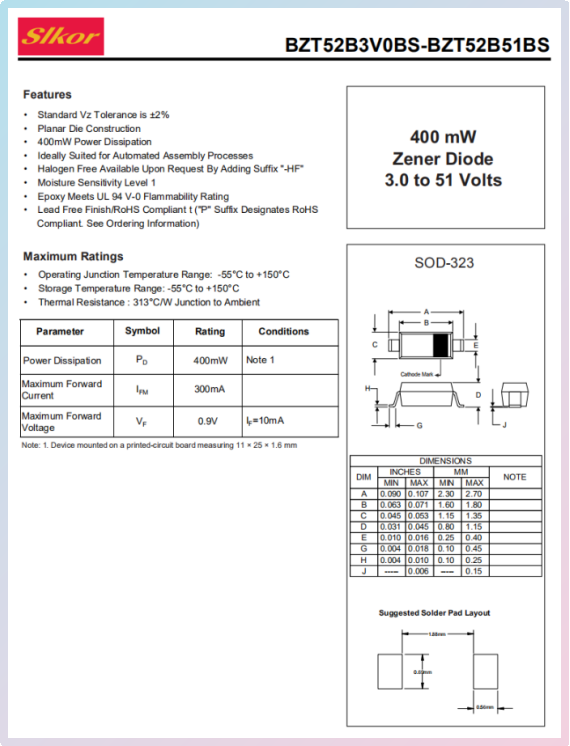

Slkor Voltage Regulator Diode BZT52B7V5BS specification

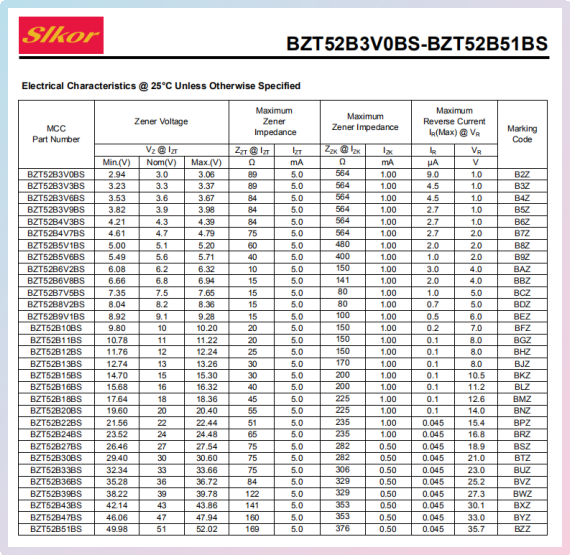

Parameters of Slkor Voltage Regulator Diode BZT52B7V5BS

Specific Case of Zener Diode BZT52B7V5BS

In a large-scale automated production line, various sensors, actuators, and controllers must work together seamlessly to ensure smooth production processes. Given the high precision required for manufacturing precise mechanical parts, stability in the control system is paramount. However, voltage fluctuations and electromagnetic interference in factory environments often pose stability challenges for these control systems.

To address these issues, engineers opted to use the BZT52B7V5BS Zener diode in critical circuits. Widely applied in the power circuits of control systems, this diode ensures stable and accurate 7.5V voltage supply to all components.

Before the introduction of the BZT52B7V5BS, some sensors on the production line frequently sent erroneous signals due to unstable voltages, leading to interruptions in production. Moreover, actuators often failed to execute commands accurately due to voltage fluctuations, impacting product quality and production efficiency.

With the adoption of the BZT52B7V5BS Zener diode, these issues were effectively mitigated. Sensors and actuators now receive stable voltage supplies, reducing the likelihood of false alarms and misoperations. Furthermore, the high precision regulation of the BZT52B7V5BS significantly enhances the accuracy of the control system, ensuring continuous production and consistent product quality.

Additionally, the diode's low reverse leakage current reduces power consumption and heat generation, further enhancing the stability and reliability of the control system.
