Introduction:

The MMSZ5237B is a high-precision zener diode that offers excellent performance and accuracy in voltage regulation. With a VZTyp rating of 8.2V, precision of ±5%, a maximum power dissipation (PD) of 500mW, and an ultra-low reverse current (Ir) of 3nA at 6V, this component is an ideal choice for applications requiring precise and stable voltage regulation.

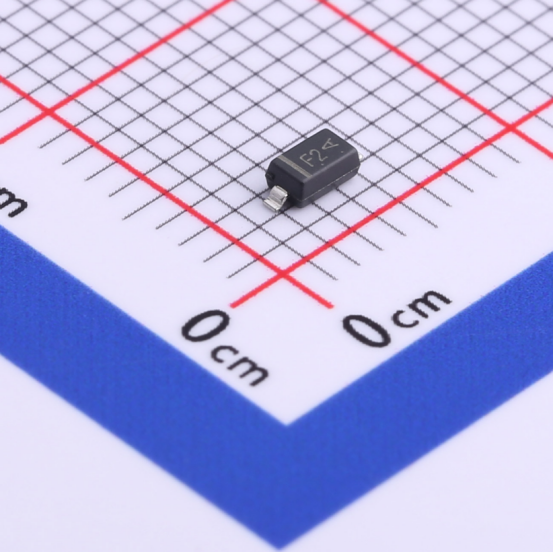

Slkor Voltage Regulator Diode MMSZ5237B product photo

Key points:

High Precision Voltage Regulation:

● VZTyp rating of 8.2V

Precision of ±5%

● Provides accurate and stable voltage output

Efficient Power Dissipation:

● PD rating of 500mW

● Capable of handling moderate to high power levels without compromising performance

Ultra-Low Reverse Current:

● Ir of only 3nA at 6V

● Minimal power loss and improved efficiency

● Enhances component's reliability and lifespan

Slkor Zener diode MMSZ5237B specification

Parameters of Slkor Zener diode MMSZ5237B

Conclusion:

The MMSZ5237B is a high-precision zener diode that delivers excellent performance and accuracy in voltage regulation. With a VZTyp rating of 8.2V, precision of ±5%, a maximum power dissipation (PD) of 500mW, and an ultra-low reverse current (Ir) of 3nA at 6V, this component is perfect for applications requiring precise and stable voltage regulation. The MMSZ5237B ensures accurate voltage output, efficient power dissipation, and enhanced reliability, making it a valuable component in electronic systems.

Forward voltage drop of a voltage regulator diode

In electronic circuits, the voltage regulator diode is an important semiconductor device that is widely used in various electronic devices due to its unique voltage regulation characteristics. One important parameter of the voltage regulator diode is its forward voltage drop (Vf), which is crucial for understanding its operation, selecting the right device, and optimizing circuit design.

I. Characteristics of the forward voltage drop of a voltage regulator diode

The forward voltage drop (Vf) of a voltage regulator diode refers to the voltage required for a significant current to flow through the diode when it is forward biased. Unlike regular diodes, a voltage regulator diode does not enter a saturated on-state when forward biased; instead, it maintains a relatively stable voltage value. This stable voltage value is the forward voltage drop (Vf) of the voltage regulator diode.

It should be noted that the forward voltage drop of a voltage regulator diode is not a fixed value; it is influenced by various factors such as temperature and current. Generally, as the temperature increases, the forward voltage drop of the voltage regulator diode slightly decreases, while it increases with increasing current. Therefore, in practical applications, it is necessary to select the appropriate voltage regulator diode based on specific operating conditions.

II. Applications of the forward voltage drop of a voltage regulator diode

The forward voltage drop of a voltage regulator diode has wide applications in circuit design. Firstly, it can be used as a reference voltage source to provide a stable reference voltage for the circuit. Due to the high stability and accuracy of the forward voltage drop of a voltage regulator diode, it ensures that voltage fluctuations in the circuit are within a controllable range, thereby improving the reliability and stability of the circuit.

Secondly, the voltage regulator diode can also be used as a voltage regulator in power management circuits. By designing the circuit parameters appropriately, the voltage regulator diode can provide a stable voltage output at the power supply output, thus protecting subsequent circuits from the influence of unstable voltages. This application is very common in electronic devices such as computers and communication equipment, which require stable power supply.

In addition, the voltage regulator diode can be used to protect sensitive components in circuits from damage caused by excessive voltage. When the voltage in the circuit exceeds a certain threshold, the voltage regulator diode starts conducting and absorbs the excess voltage, thereby protecting the components in the subsequent circuit. This application has significant value in areas such as automotive electronics and industrial control.

III. The importance of the forward voltage drop of a voltage regulator diode

The forward voltage drop of a voltage regulator diode is an important manifestation of its voltage regulation characteristics. An appropriate forward voltage drop ensures that the voltage regulator diode performs optimally in the circuit. If the forward voltage drop is too high or too low, it may result in the voltage regulator diode not functioning properly or experiencing performance degradation. Therefore, when selecting a voltage regulator diode, it is necessary to choose the appropriate forward voltage drop value based on specific application scenarios and operating conditions.

Furthermore, understanding the forward voltage drop of a voltage regulator diode also helps optimize circuit design. By designing circuit parameters appropriately and selecting the right voltage regulator diode model, the circuit can achieve stable voltage output while reducing power consumption and improving efficiency. This is of significant importance in enhancing the performance and reducing costs of electronic devices.
