Introduction
The MM5Z6V2 is a zener diode known for its precision voltage regulation capabilities and low reverse current characteristics. With a VZTyp of 6.2V, a VZ range of 5.8V to 6.6V, a power dissipation (PD) rating of 200mW, a reverse current (Ir) of 1μA at 3V, and a dynamic impedance (Zzt) of 10Ω, this component offers reliable voltage regulation in various electronic circuits. This article aims to provide an in-depth exploration of the features and applications of the MM5Z6V2 zener diode, along with key considerations for its effective utilization in electronic designs.

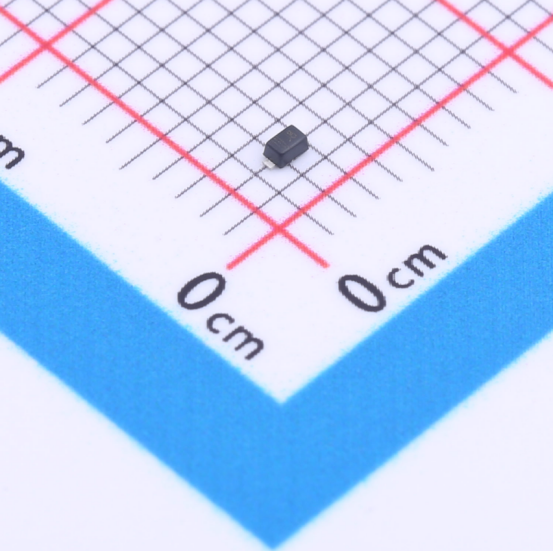

Slkor Voltage Regulator Diode MM5Z6V2 product photo

Features and Specifications

The MM5Z6V2 zener diode is designed to maintain a stable output voltage across a specified current range. Its VZTyp value of 6.2V serves as a typical reference voltage, while the VZ range of 5.8V to 6.6V indicates the allowable variation in the zener voltage under different operating conditions. This range allows for flexibility in selecting the appropriate zener diode based on specific voltage regulation requirements.

With a PD rating of 200mW, the MM5Z6V2 zener diode can dissipate a significant amount of power without compromising its performance, making it suitable for applications where power dissipation is a critical consideration. The low reverse current (Ir) of 1μA at 3V minimizes leakage currents, contributing to the overall efficiency of the voltage regulation process and reducing power losses.

The dynamic impedance (Zzt) value of 10Ω represents the small-signal impedance of the zener diode, which is an important parameter for understanding its behavior under varying input and output conditions.

Slkor Zener diode MM5Z6V2 specification

Parameters of Slkor Zener diode MM5Z6V2

Applications

The MM5Z6V2 zener diode finds application in various electronic circuits where precise voltage regulation is essential. Some common applications include:

Voltage Regulation: It is used in voltage regulator circuits to stabilize and regulate voltage levels, ensuring consistent performance of connected components.

Overvoltage Protection: The zener diode can protect sensitive electronic components from overvoltage conditions by shunting excess voltage away from the protected circuit.

Signal Clipping: In audio and communication circuits, the zener diode can be utilized for signal clipping and limiting, preventing signal distortion under high voltage conditions.

Voltage References: It serves as a stable voltage reference in analog and mixed-signal circuits, contributing to accurate signal processing and measurement.

Considerations for Effective Use

When incorporating the MM5Z6V2 zener diode into a circuit design, several considerations are crucial for ensuring its effective performance:

Operating Conditions: Understanding the operating voltage range and current requirements of the circuit is essential for selecting the appropriate MM5Z6V2 zener diode within the specified VZ range.

Power Dissipation: Adequate heat sinking or thermal management should be implemented to ensure that the zener diode operates within its rated power dissipation limit.

Dynamic Impedance: Considering the dynamic impedance (Zzt) of the zener diode is important for predicting its behavior under dynamic load conditions and understanding its impact on the overall circuit performance.

In conclusion, the MM5Z6V2 zener diode offers precise voltage regulation, low reverse current, and robust power dissipation capabilities, making it a versatile component for a wide range of electronic applications. When utilized with careful consideration of its specifications and operating parameters, it can significantly enhance the stability and performance of electronic circuits.

By understanding its features, applications, and the key considerations for its effective use, engineers and designers can leverage the MM5Z6V2 zener diode to create reliable and efficient electronic systems across various industries.
