【Daily Highlight】The BZT52B3V0BS Zener Diode: Precision Voltage Regulation for Efficient Reliability

release time:2024-07-08Author source:SlkorBrowse:4766

In the field of electronics, Zener diodes play a crucial role in maintaining stable operating voltages within circuits. Today, we focus on the BZT52B3V0BS, renowned for its excellent voltage regulation performance and reliable operational characteristics among similar products.

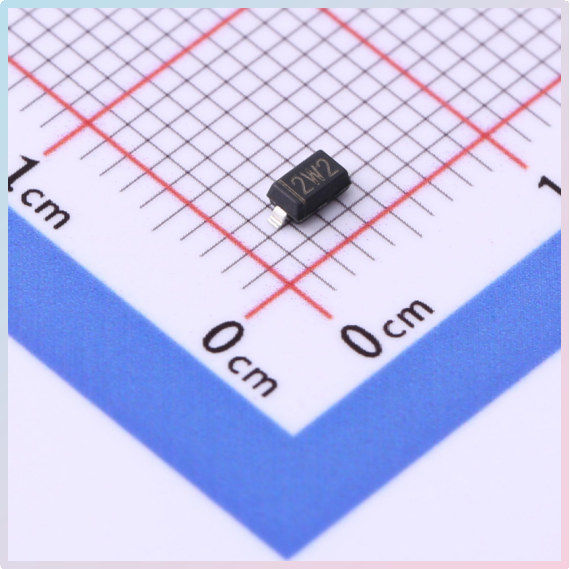

Slkor Voltage Regulator Diode BZT52B3V0BS product photo



Performance of the BZT52B3V0BS Zener Diode



The BZT52B3V0BS has a nominal Zener voltage of 3V, meaning it reliably outputs 3 volts under normal operating conditions. In practical applications, its voltage regulation remains within a tight range of 2.94V to 3.06V, showcasing exceptional precision. Such high-precision voltage regulation is critical for ensuring the stability of electronic devices.

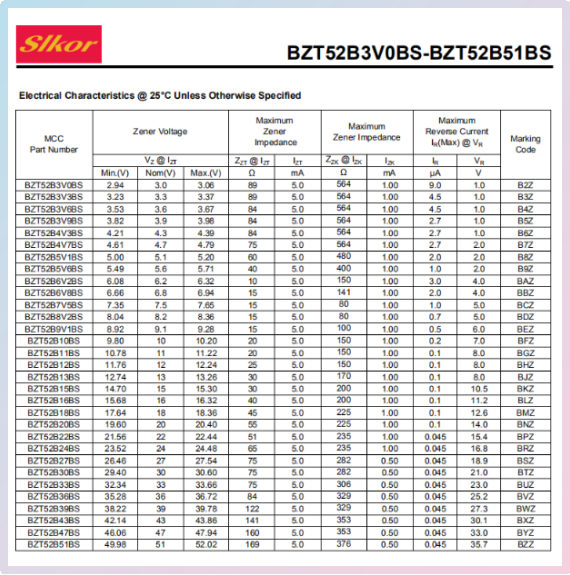

Slkor Voltage Regulator Diode BZT52B3V0BS specification



In addition to precise voltage regulation, the BZT52B3V0BS boasts an accuracy range of ±5%. This ensures consistent performance across different operating environments, thereby enhancing the reliability and stability of electronic systems.



Moreover, with a power rating of up to 400mW, the BZT52B3V0BS can withstand substantial power loads, making it suitable for circuits requiring high power output. Its reverse current (Ir) of only 9μA demonstrates excellent current control precision and low power consumption, contributing to prolonged device lifespan and reduced energy consumption.



Key Applications of the BZT52B3V0BS Zener Diode in Communication Equipment



In communication equipment, voltage stability is crucial for ensuring signal clarity and device functionality. The BZT52B3V0BS Zener diode plays a pivotal role in this domain due to its outstanding voltage regulation characteristics and reliability.



Communication devices, especially wireless ones like mobile phones, radio transceivers, and satellite communication terminals, require stable voltage supply to ensure accurate signal transmission and reception. The BZT52B3V0BS is designed precisely for this purpose. Its 3V Zener voltage and ±5% high accuracy enable it to provide stable voltage support under various environmental conditions.



Effective power management is essential in communication devices. Voltage instability can lead to signal distortion, data transmission errors, or even device damage. The BZT52B3V0BS Zener diode plays a critical role in power management modules by stabilizing voltage and preventing issues arising from voltage fluctuations.



Furthermore, in high-frequency communication, the role of Zener diodes in voltage stabilization becomes even more critical. High-frequency signals demand utmost stability from power sources, as any minor voltage fluctuation can affect signal transmission quality. The BZT52B3V0BS's high-precision voltage regulation makes it an ideal choice for high-frequency communication equipment.



Apart from voltage regulation, the BZT52B3V0BS Zener diode features low power consumption, which is particularly beneficial for communication devices requiring prolonged operation. Low power consumption translates to extended battery life, crucial in remote or emergency communication scenarios.

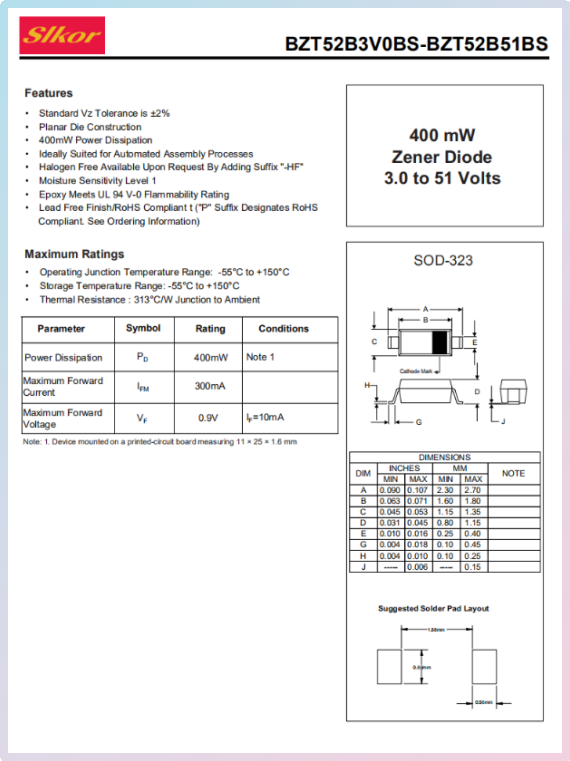

Parameters of Slkor Voltage Regulator Diode BZT52B3V0BS


Additional Key Functions of the BZT52B3V0BS Zener Diode in Communication Equipment



In addition to voltage regulation, the BZT52B3V0BS Zener diode fulfills several critical functions in communication equipment, collectively ensuring stable operation and optimized performance.



Circuit Protection Function:

In communication devices, circuit protection is vital. The BZT52B3V0BS Zener diode provides overvoltage protection by conducting when the circuit voltage exceeds its Zener voltage, thereby redirecting excess voltage to ground and safeguarding other circuit components from damage.



Signal Conditioning Function:

When processing signals, communication devices require clarity and accuracy. The BZT52B3V0BS Zener diode can be used in signal conditioning circuits to provide a stable reference voltage, reducing signal distortion and noise during transmission, thus enhancing signal-to-noise ratio and improving transmission quality and reliability.



Temperature Compensation Function:

During operation, communication equipment generates heat, raising internal temperatures that may affect circuit performance. The BZT52B3V0BS Zener diode is designed with temperature compensation capabilities to maintain relatively stable voltage output across varying temperatures, minimizing performance fluctuations caused by temperature changes.


About Slkor:


Slkor has research and development offices in Busan, South Korea, Beijing, China, and Suzhou, China. Most of the wafer manufacturing and packaging and testing are carried out within China. The company employs and collaborates with individuals and organizations worldwide, with a laboratory for product performance and reliability testing and a central warehouse located at its headquarters in Shenzhen. Slkor has filed for over a hundred invention patents, offers more than 2,000 product models, and serves over ten thousand customers globally. Its products are exported to countries and regions including Europe, the Americas, Southeast Asia, and the Middle East, making it one of the rapidly growing semiconductor companies in recent years. With well-established management systems and streamlined workflows, Slkor has rapidly enhanced the brand awareness and reputation of its "SLKOR" brand through its outstanding quality and standardized services. Its product range includes three major series: diodes, transistors, and power devices, with recent introductions of new products such as Hall elements and analog devices, expanding its presence in sensors, Risc-v microcontrollers, and other product categories.
