In modern electronic systems, the voltage regulator diode plays a crucial role as a key electronic component in ensuring the stability and reliability of circuits. Among many voltage regulator diodes, the MM3Z5V1 stands out as the top choice for engineers designing circuits due to its unique design and excellent performance.

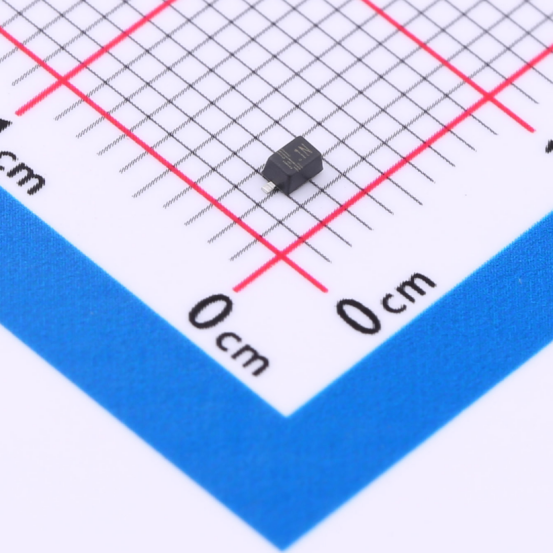

Slkor Voltage Regulator Diode MM3Z5V1 product photo

Standalone Configuration

The MM3Z5V1 utilizes a standalone configuration, meaning it does not require additional external circuits or components to achieve voltage regulation. This configuration greatly simplifies circuit design, reduces component count and space requirements, and lowers costs. The standalone configuration also enhances the reliability and stability of the MM3Z5V1, as it is not dependent on the performance and status of other components.

Precise Voltage Regulation

The nominal voltage regulation value of the MM3Z5V1 is 5.1V, with a regulation range between 4.8V and 5.4V. This precise regulation value enables the MM3Z5V1 to provide stable voltage output in various circuit applications, ensuring stable operation in power supply circuits, voltage reference sources, and other applications requiring stable voltage.

Low Reverse Current

The reverse current of the MM3Z5V1 at 1.5V reverse voltage is only 2μA. This extremely low reverse current means that the MM3Z5V1 consumes minimal energy when the circuit is not active, reducing power consumption and heat generation, which is particularly important for circuits requiring long-term operation or low power design.

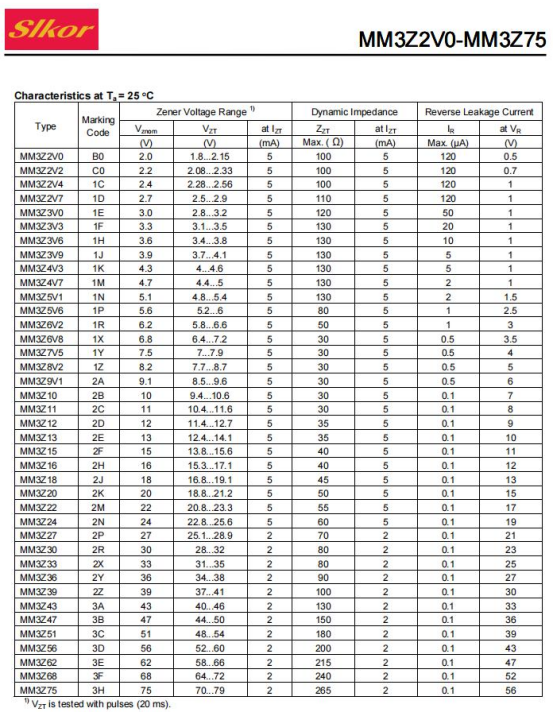

Slkor Voltage Regulator Diode MM3Z5V1 specification

High Impedance

The impedance of the MM3Z5V1 is 130Ω, which helps limit the current in the circuit, protecting other components from excessive current damage. Additionally, high impedance improves the circuit's immunity to interference, ensuring stability and reliability.

High Power Handling Capability

Although the power rating of the MM3Z5V1 is only 300mW, this power handling capability is sufficient for most circuit requirements. In high-power applications, multiple MM3Z5V1 units can be connected in parallel to increase the total power handling capacity to meet higher current and voltage demands.

Temperature Stability

The MM3Z5V1 exhibits excellent temperature stability, maintaining stable performance over a wide temperature range. This allows the MM3Z5V1 to reliably operate in various environmental conditions, providing stable voltage support for the circuit.

Easy Integration

The MM3Z5V1 features standard packaging and pin configuration, making it easy to integrate with other electronic components. Whether through manual soldering or automated production lines, integrating the MM3Z5V1 into circuits is straightforward.

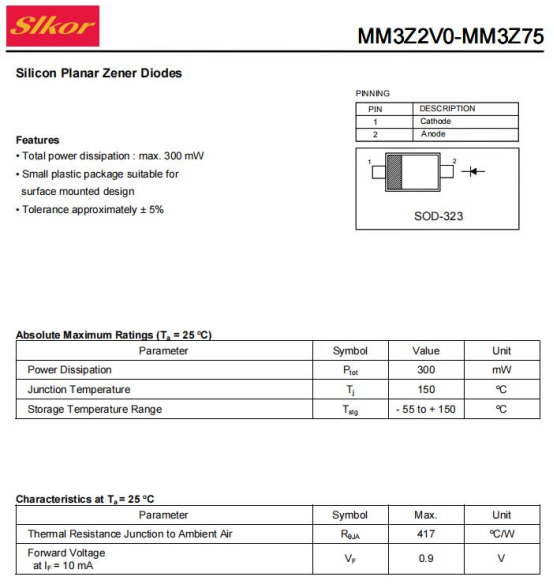

Parameters of Slkor Voltage Regulator Diode MM3Z5V1

Operation Principle and Application Scenarios of the Voltage Regulator Diode MM3Z5V1

Operation Principle

The operation principle of the voltage regulator diode MM3Z5V1 is based on its unique PN junction structure and material properties. When the PN junction of the voltage regulator diode undergoes reverse breakdown, the voltage across its terminals is fixed at a certain value (in this case, 5.1V) and does not change with variations in current, achieving voltage regulation.

Specifically, when the MM3Z5V1 voltage regulator diode is subjected to reverse voltage, the internal electric field strength within the PN junction gradually increases with increasing voltage. When the voltage reaches a certain level (reverse breakdown voltage), covalent bonds inside the PN junction begin to break, generating a large number of electron-hole pairs. The flow of these charge carriers leads to a sharp increase in reverse current. However, due to the special design of the MM3Z5V1, the reverse current does not cause further voltage rise but stabilizes at a fixed value (i.e., the regulation value).

This characteristic of the MM3Z5V1 allows it to provide stable voltage regulation in circuits. Regardless of input voltage fluctuations, the MM3Z5V1 utilizes its reverse breakdown mechanism to stabilize the output voltage within a small range near the nominal value (4.8V~5.4V).

Application Scenarios

Due to its stable performance and wide application range, the MM3Z5V1 voltage regulator diode is utilized in various fields. Here are several typical application scenarios:

● Power management circuits: In power management circuits, the MM3Z5V1 is commonly used as a voltage regulator to ensure the stability and reliability of output voltage. It can protect downstream circuits from the effects of voltage fluctuations, especially in cases of unstable input voltage or significant load variations.

● Voltage reference: In circuits requiring a stable reference voltage, such as ADC/DAC converters, the MM3Z5V1 can provide an accurate voltage reference point. Due to its precise regulation value and stability, it helps improve the accuracy and reliability of the entire circuit.

● Overvoltage protection: The MM3Z5V1 can also be used in overvoltage protection circuits to prevent the circuit's voltage from exceeding safe limits. When the circuit's voltage exceeds the regulation value of the MM3Z5V1, it starts conducting to limit further voltage increase, thereby protecting other components in the circuit from damage.

● Transient voltage suppression: When transient voltage surges occur in a circuit, the fast response capability and stable performance of the MM3Z5V1 make it an ideal choice for transient voltage suppression. It can quickly stabilize the voltage within a safe range, preventing damage to components in the circuit.
