Introduction:

Zener diodes are essential components in electronic circuits, offering precise voltage regulation, overvoltage protection, and stable reference voltages. The BZT52C6V2S zener diode stands as a crucial semiconductor device with specific parameters that define its behavior and suitability for diverse applications. This article provides a comprehensive analysis of the BZT52C6V2S zener diode, exploring its key parameters, performance characteristics, and potential applications.

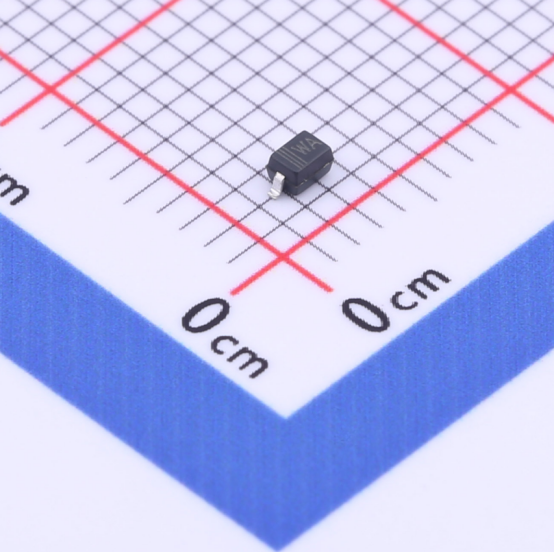

Slkor Voltage Regulator Diode BZT52C6V2S product photo

Overview of BZT52C6V2S Zener Diode:

The BZT52C6V2S zener diode is engineered to maintain a stable voltage across its terminals when operated in the breakdown region. Its distinct parameters play a pivotal role in determining its functionality and relevance for various circuit requirements.

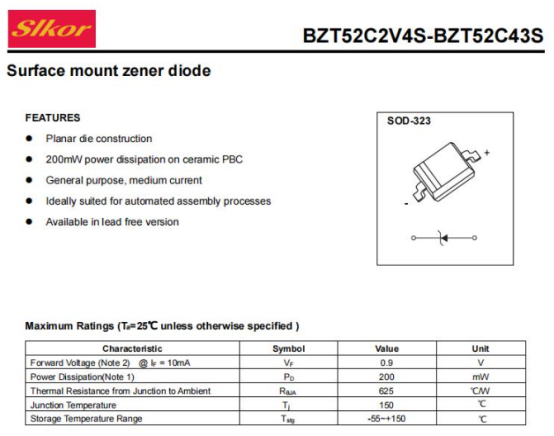

Slkor Zener diode BZT52C6V2S specification

Key Parameters:

 VZTyp (Typical Zener Voltage): The typical zener voltage, VZTyp, for the BZT52C6V2S is specified as 6.2V. This parameter indicates the expected voltage at which the zener diode commences conduction, providing a relatively constant voltage output.

VZ Range: The allowable zener voltage range for the BZT52C6V2S spans from 5.8V to 6.6V. This range accommodates manufacturing tolerances and operational conditions, ensuring that the zener diode's actual voltage characteristics fall within this specified range.

Maximum Power Dissipation (PD): The BZT52C6V2S zener diode boasts a maximum power dissipation capability of 200mW. This specification represents the highest amount of power that the diode can dissipate without sustaining damage, offering insights into its thermal handling capacity and safe operational limits in practical circuits.

Reverse Current (Ir) at 4V: At a reverse bias voltage of 4V, the BZT52C6V2S zener diode demonstrates a reverse current of 3μA. This parameter reflects the minimal amount of current that flows through the diode in the reverse direction, indicating low leakage current and suitability for high-precision applications.

Dynamic Impedance (Zzt): The dynamic impedance of 10Ω represents the small-signal impedance of the zener diode when it is conducting. This parameter is crucial for understanding the diode's behavior under varying AC or small-signal conditions, providing insights into its performance in dynamic circuits.

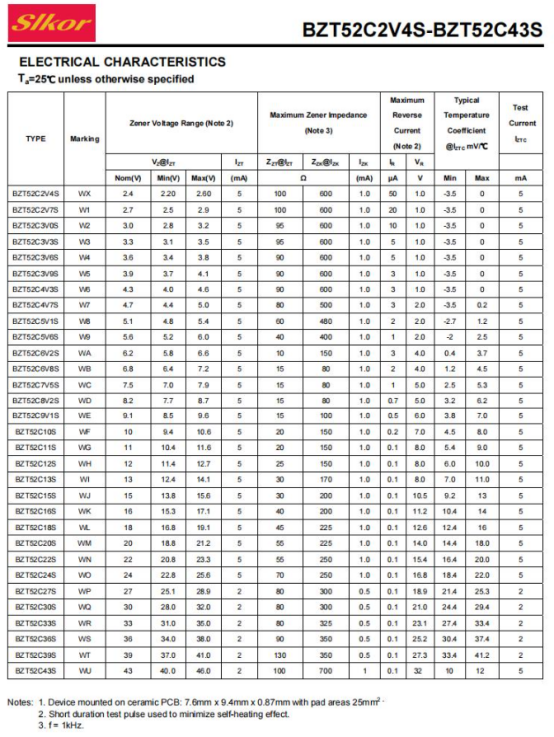

Parameters of Slkor Zener diode BZT52C6V2S

Performance and Applications:

The BZT52C6V2S zener diode's specifications position it as a valuable component for various electronic applications. Its stable zener voltage, defined voltage range, moderate power dissipation capability, low reverse current, and modest dynamic impedance make it well-suited for diverse circuit requirements. Some potential applications of the BZT52C6V2S zener diode include:

Voltage Regulation: The BZT52C6V2S can be utilized in voltage regulation circuits, such as voltage references, voltage limiters, and power supplies, ensuring stable and consistent voltage levels in electronic systems.

Overvoltage Protection: Due to its specified voltage range and robust power dissipation, the BZT52C6V2S offers effective protection against overvoltage events, safeguarding sensitive components from voltage spikes and transients.

Precision Instrumentation: Its low reverse current and stable zener voltage make the BZT52C6V2S suitable for precision measuring instruments, sensor interfaces, and data acquisition systems, where accuracy and reliability are paramount.

Conclusion:

The BZT52C6V2S zener diode emerges as a versatile and dependable component with specific characteristics that cater to the demands of modern electronic circuits. Its typical zener voltage, specified voltage range, power dissipation capability, reverse current, and dynamic impedance enable engineers to design circuits with precise voltage regulation, overvoltage protection, and high precision. Understanding the capabilities and limitations of the BZT52C6V2S zener diode empowers designers to make informed decisions when integrating this component into their electronic systems, contributing to the creation of resilient and efficient circuitry.
