release time:2024-06-25Author source:SlkorBrowse:5841
With the rapid development of electronic technology, various electronic components play a crucial role in circuit design. Among them, Zener diodes, with their unique voltage regulation function, have wide applications in power management, signal conditioning, and more. This article will focus on the technical characteristics of the MM3Z5V6 Zener diode and explore its potential applications in circuit design.

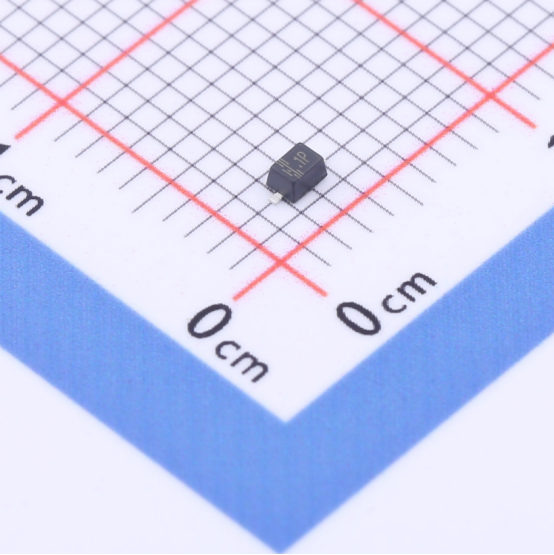

Slkor Voltage Regulator Diode MM3Z5V6 product photo
The MM3Z5V6 is a standalone Zener diode known for its stable output voltage and excellent electrical performance. It can maintain a stable output voltage despite fluctuations in the input voltage, providing reliable power supply protection for circuits.

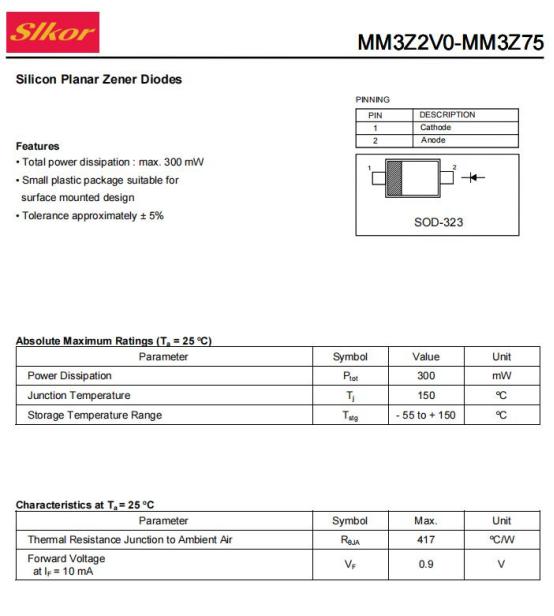

Slkor Voltage Regulator Diode MM3Z5V6 specification
Regulation Voltage: The MM3Z5V6 has a nominal regulation voltage of 5.6V, with a regulation range between 5.2V and 6V. This means that under normal operating conditions, the output voltage remains stable within this range regardless of changes in the input voltage.
Power: This Zener diode has a power rating of 300mW, which meets the power requirements of most circuit designs. Additionally, its low power consumption helps reduce overall circuit heating, thereby improving system stability.
Reverse Current: The reverse current of the MM3Z5V6 is 1μA at 2.5V, indicating good reverse cutoff characteristics. This helps prevent excessive leakage current under reverse voltage conditions, protecting the circuit from damage.
Impedance: The impedance of this Zener diode is 80Ω. This relatively low impedance helps reduce voltage drops and increase power efficiency.

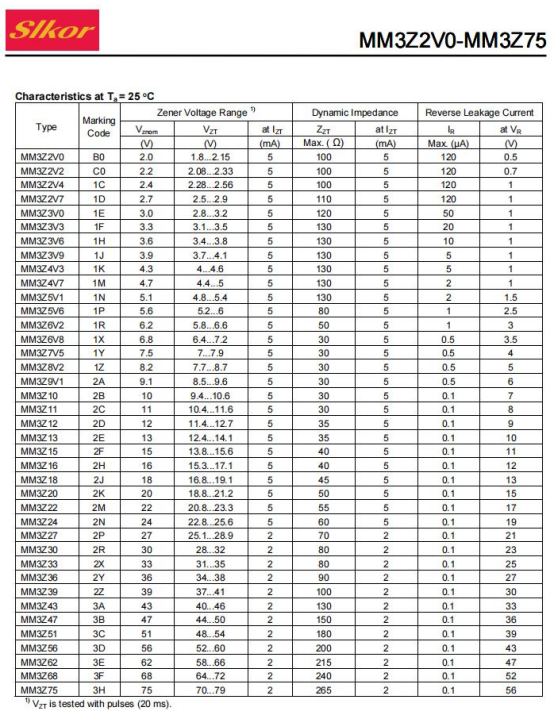

Parameters of Slkor Voltage Regulator Diode MM3Z5V6
Connecting a Zener diode directly to a power supply is not common practice, as it usually needs to work in conjunction with other circuit components to achieve the desired effect.
Parallel Use: Zener diodes are typically used in parallel with a load resistor. When the voltage in the circuit exceeds the Zener diode's rated voltage (also known as the Zener voltage), the Zener diode begins to conduct, thereby limiting further increases in voltage.
Current Limiting Resistor: To ensure that the Zener diode does not get damaged by excessive current, a current limiting resistor is usually connected in series between the power supply and the Zener diode. This resistor limits the current flowing into the Zener diode.
Reverse Biasing: Zener diodes operate in reverse bias mode during normal operation, meaning their anode is connected to a higher voltage and the cathode to a lower voltage.
Voltage Stabilization: When the circuit voltage exceeds the Zener voltage, the Zener diode "takes over" and attempts to stabilize the voltage near the Zener voltage.
Model Selection: Choose the appropriate model based on actual requirements, ensuring that the Zener diode's regulation voltage, power dissipation, and other parameters meet the circuit's needs. Different models have different rated voltages and currents, so select one that matches the voltage and current requirements of your circuit.
Prevent Overloading: Avoid subjecting the Zener diode to excessive reverse current or voltage to prevent damage. If the circuit operates under high current or voltage conditions, select a Zener diode with higher ratings or implement additional protective measures.
Connection Polarity: The anode of the Zener diode is marked, while the cathode is unmarked. Connect the anode to the positive power source and the cathode to the negative power source or load resistor.
Current Limiting Resistor: In a Zener diode voltage regulation circuit, a current limiting resistor is typically included in series to control the current flowing into the Zener diode, preventing damage from excessive current. The larger the resistor value, the better the voltage regulation performance, though it also increases the input-output voltage differential and power consumption. Choose the resistor value based on specific circuit requirements.
Heat Dissipation: Zener diodes generate heat during operation, so pay attention to heat dissipation. Install a heatsink or mount the Zener diode on a thermal pad to increase the heat dissipation area, reducing the operating temperature and extending the diode's lifespan.
Installation Position: When laying out the circuit board, place the Zener diode in an appropriate position for heat dissipation and to minimize thermal stress. Ensure suitable spacing from other components to prevent electromagnetic interference and signal distortion.
Safety Regulations: Follow relevant safety regulations when using Zener diodes. Avoid direct contact with exposed metal parts to prevent electric shock or other accidents.
By keeping these considerations in mind, you can effectively utilize Zener diodes like the MM3Z5V6 in your circuit designs to achieve reliable voltage regulation and protection.
