In the context of global climate change and the energy transition, the development of green energy has become a global consensus. As a vital component in semiconductor devices, the voltage regulator diode plays a crucial role in the green energy sector. Today, we will delve into the applications of the 1SMAF4744A voltage regulator diode in green energy, particularly its key role in photovoltaic systems and battery chargers.

I. 1SMAF4744A: Comprehensive Overview of Its Specifications

A Benchmark in Voltage Regulation, Precisely Guarding Stability

Nominal Voltage: 15V — This value represents the identity of the 1SMAF4744A, highlighting its unique position in high-voltage circuits.

Regulation Range: 13.8V-15.8V — A broad voltage regulation range offers greater flexibility in circuit design, ensuring stable operation in complex voltage environments.

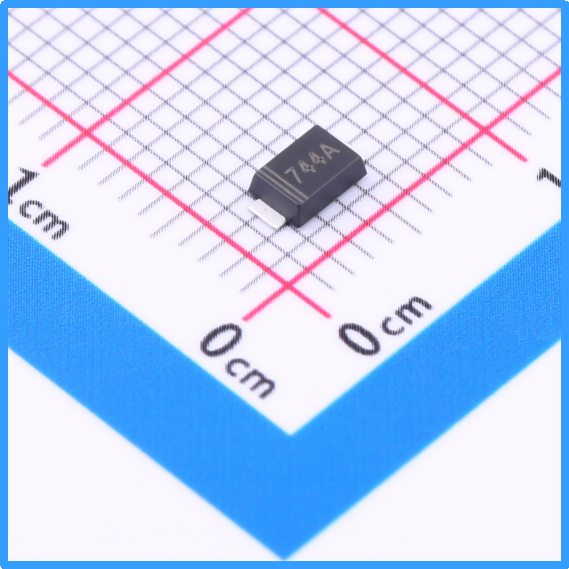

Slkor Voltage Regulator Diode MMBZ5243B product photo

Power Efficiency, Steadily Advancing Forward

Power: 1W — This value not only indicates the 1SMAF4744A's ability to convert energy, but also its capacity to withstand high-voltage and high-current challenges.

Slkor Voltage Regulator Diode MMBZ5243B specification

Minimal Reverse Current, Ensuring Long-term Stability

Reverse Current (Ir): 5μA — With an extremely low reverse current, the 1SMAF4744A remains efficient and cool during prolonged operation, providing a solid foundation for the device's long lifespan.

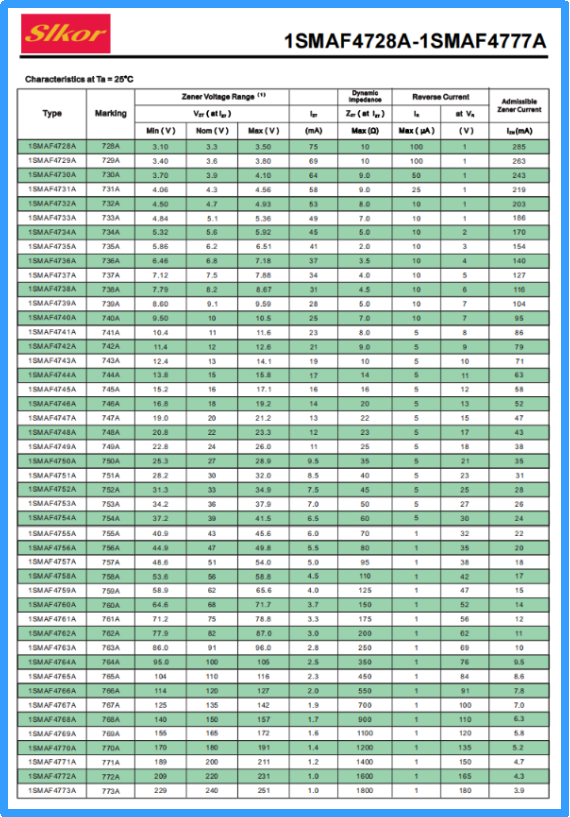

Parameters of Slkor Voltage Regulator Diode MMBZ5243B

II. 1SMAF4744A: A Preferred Component in the Green Energy Sector

The 1SMAF4744A voltage regulator diode, with its stable voltage characteristics, high reliability, and low power consumption, has become a preferred choice in green energy applications. With a nominal voltage of 15V, a regulation range from 13.8V to 15.8V, 1W power capability, and a reverse current of only 5μA, these outstanding parameters make the 1SMAF4744A an excellent performer in photovoltaic systems, battery chargers, and other green energy applications.

III. Application of 1SMAF4744A in Photovoltaic Systems

Over-voltage Protection:

In photovoltaic systems, stable voltage is crucial for the safe operation of the system. The 1SMAF4744A, acting as an over-voltage protection component, can quickly respond when the system voltage becomes too high, stabilizing it within a safe range. This effectively protects photovoltaic modules and inverters from damage, significantly improving the reliability of the system and extending the lifespan of the equipment.

Voltage Regulation:

Due to environmental factors such as varying light intensity and temperature, the system voltage in photovoltaic power generation may fluctuate. The voltage regulation feature of the 1SMAF4744A ensures a stable output voltage, improving the efficiency and stability of photovoltaic power generation. By selecting the appropriate voltage regulator diode, a photovoltaic system can consistently provide stable voltage, even under changing environmental conditions, delivering high-quality power to the grid.

Current Limiting:

When excessive current flows through a photovoltaic system, it can cause damage to modules and inverters. The 1SMAF4744A's current-limiting function automatically reduces the current in the circuit when it exceeds a safe threshold, thus protecting components from damage. This feature plays a crucial role in enhancing the safety and reliability of the photovoltaic system.

IV. Application of 1SMAF4744A in Battery Chargers

Battery chargers are an indispensable part of the green energy sector, and voltage regulator diodes play a key role in their functionality. The 1SMAF4744A, as a voltage regulation component in battery chargers, ensures stable voltage and current output, thereby improving charging efficiency and extending battery life.

During the charging process, if the output voltage or current exceeds safe levels, the 1SMAF4744A quickly adjusts the voltage and current to maintain stability within safe parameters. This not only protects the battery from over-voltage and over-current damage but also ensures stable and efficient charging. Additionally, the low power consumption of the 1SMAF4744A helps reduce energy waste during operation, enhancing the overall energy efficiency of the charger.

Conclusion

In conclusion, the 1SMAF4744A voltage regulator diode plays a vital role in the green energy sector, offering stable voltage characteristics, high reliability, and low power consumption. Whether in photovoltaic systems or battery chargers, the 1SMAF4744A provides essential voltage and current protection, improving the reliability and longevity of the equipment. As green energy continues to develop, we can expect the 1SMAF4744A to demonstrate its unique value and potential across even more applications. Let us look forward to how this stable guardian of green energy will contribute to the new era and create a brighter future!
