In the world of electronic devices, each component plays a crucial role, with voltage regulator diodes standing out as a key element. Today, we delve into the MM5Z3V3 voltage regulator diode, renowned in the electronics industry for its unique performance and stability.

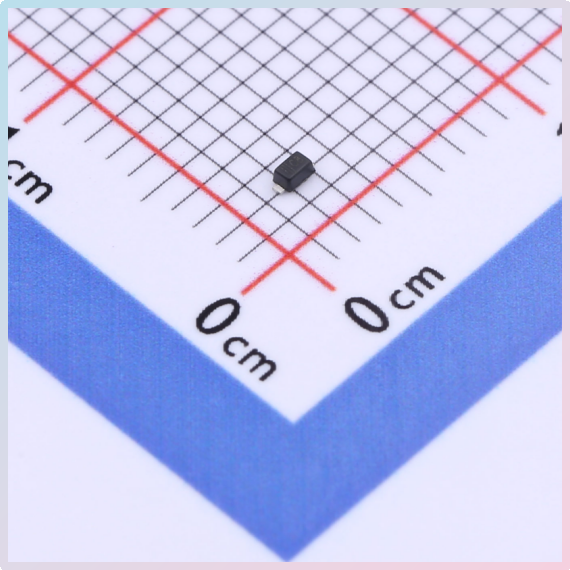

Slkor Voltage Regulator Diode MM5Z3V3 product photo

Leader in Voltage Regulation

The MM5Z3V3 is celebrated for its outstanding voltage regulation capabilities. With a nominal voltage of 3.3V, it maintains stability within a range of 3.1V to 3.5V. This high-precision regulation (±5% accuracy) ensures stable voltage support across various circuit environments, thereby guaranteeing smooth operation of electronic devices.

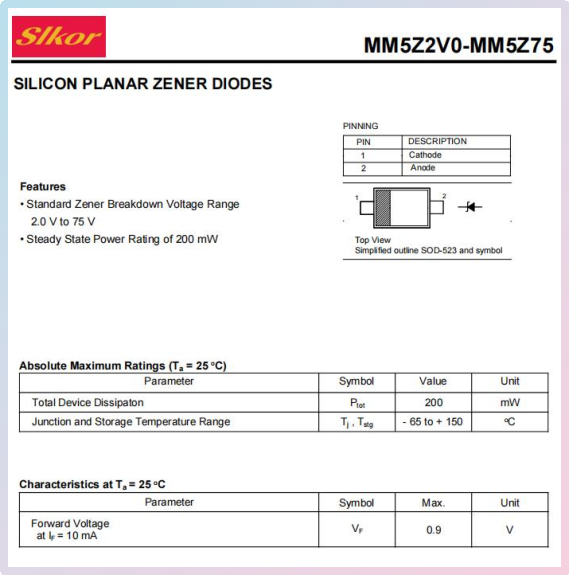

Slkor Voltage Regulator Diode MM5Z3V3 specification

Perfect Balance of Power and Efficiency

In terms of power handling, the MM5Z3V3 demonstrates remarkable capability, withstanding up to 200mW. This means it can maintain stable voltage output even under high load conditions, showcasing robust power management suitable for demanding applications.

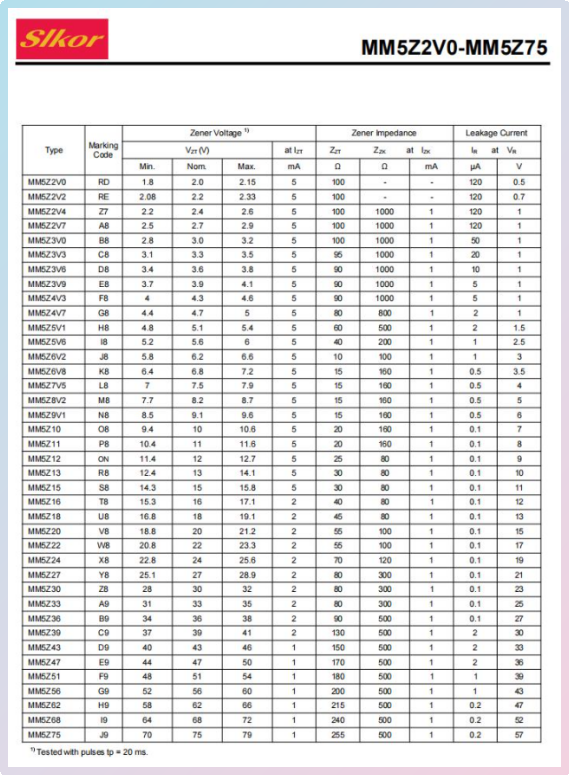

Parameters of Slkor Voltage Regulator Diode MM5Z3V3

Low Reverse Current, High Efficiency

Notably, the MM5Z3V3 features extremely low reverse current, measuring only 20μA. This characteristic not only reduces power consumption but also minimizes heat generation, thereby enhancing overall circuit efficiency. In long-term operation of electronic devices, low reverse current is crucial for extending device lifespan.

Wide Applications, Industry Recognition

Whether in consumer electronics, industrial control systems, or automotive electronics, the MM5Z3V3 has earned widespread recognition for its exceptional performance. Serving as a stable guardian in circuits, it provides solid assurance for the stable operation of diverse electronic devices.

Voltage Regulator Diodes and Electromagnetic Compatibility (EMC): Role of Critical Components in EMC Control

In electronic system design, electromagnetic compatibility (EMC) is a critical factor that impacts device performance stability in electromagnetic environments and its potential to interfere with other devices. Voltage regulator diodes, as crucial components in electronic circuits, directly influence EMC.

Operating Principles of Voltage Regulator Diodes and EMC

Voltage regulator diodes are renowned for maintaining stable voltage output within a specific current range. This stability not only enhances circuit performance but also correlates closely with electromagnetic compatibility. During operation, voltage regulator diodes effectively reduce voltage fluctuations, thereby minimizing electromagnetic interference (EMI) by stabilizing circuit voltages and reducing unnecessary electromagnetic radiation.

Design Considerations: Choosing the Right Voltage Regulator Diode for Enhanced EMC

When selecting a voltage regulator diode, designers must consider several factors to ensure optimal electromagnetic compatibility. Precision and range of voltage regulation are key indicators, as high-precision voltage regulation reduces electromagnetic interference. Additionally, power handling capability is crucial; a diode capable of managing high power loads maintains stability under demanding conditions, further lowering EMC risks.

Case Study: Practical Applications of Voltage Regulator Diodes in Enhancing EMC

For instance, in the design of a consumer electronic product, designers improved electromagnetic compatibility significantly by choosing a high-precision, high-power handling voltage regulator diode. During testing, the product not only emitted electromagnetic interference well below industry standards during normal operation but also maintained excellent EMC under high load conditions. This successful case study underscores the critical role of voltage regulator diodes in enhancing electromagnetic compatibility.
