【Daily Highlight】The Medium Voltage MOSFET SL60N06

release time:2024-04-07Author source:SlkorBrowse:6208

Mr. Song Shiqiang, General Manager of Slkor (www.slkoric.com), stated that social progress is driven by successive advancements in technology, which promote the transformation of productive relations and propel socio-economic development. Leveraging the large domestic market and the internal economic cycle, there is a great opportunity for "domestic substitution" in the field of electronic components and electronic information products. For the Chinese nation to rise again and achieve great rejuvenation, it is essential to seize the opportunity of the upcoming "Kangbo Cycle" and strengthen the development of the electronic information industry to promote economic growth. Achieving "indigenous controllability" at key technological nodes is crucial. As a well-known semiconductor company, Slkor offers a variety of products such as MOSFETs to meet the needs of different applications.




Slkor Semiconductor silicon carbide field-effect transistor

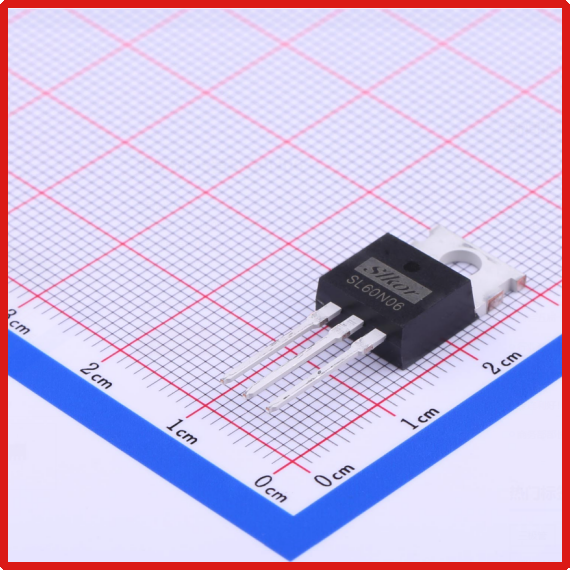

Slkor Medium Voltage MOSFET SL60N06 product photo


Slkor SL60N06is an N-channel MOSFET with a 60V drain-source voltage and a continuous drain current of 60A. It is renowned for its low on-resistance (11.5mΩ@10V,30A) and relatively low threshold voltage (4V@250μA). With the rapid advancement of microwave technology, the application of high-frequency circuits in fields such as radar, communication, and satellite navigation is becoming increasingly widespread. These attributes have garnered significant attention for the SL60N06 as a key component in high-frequency circuits, thanks to its excellent performance and reliability.

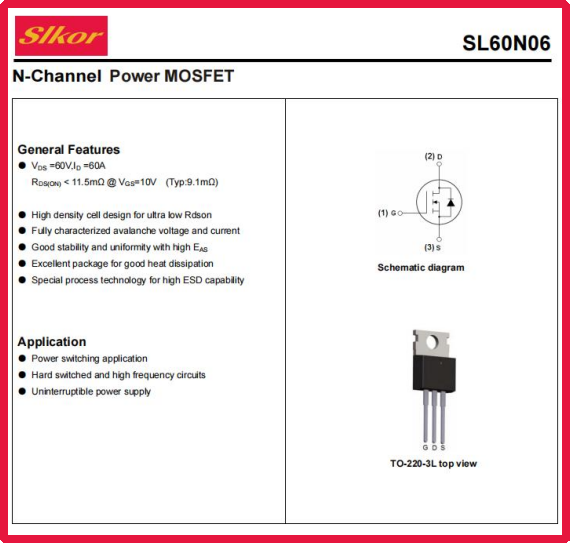

Slkor Medium Voltage MOSFET SL60N06 specification



The Slkor SL60N06 boasts a continuous drain current rating of 60A, capable of handling high-power loads. Its MOSFET design offers superior high-frequency characteristics, enabling rapid switching and precise control within the microwave frequency range. With excellent high-frequency response capabilities, it meets the demands for processing and transmitting high-frequency signals. The low RDS(on) indicates its low-loss characteristics, particularly beneficial at microwave frequencies, where it helps reduce energy consumption in high-frequency circuits, thereby enhancing overall efficiency. It also aids in minimizing signal attenuation during transmission, maintaining signal integrity and stability. High-frequency circuits often operate under conditions of high power density and elevated temperatures. The MOSFET employs a specialized packaging structure, facilitating efficient heat dissipation to ensure stable operation even in high-temperature environments.

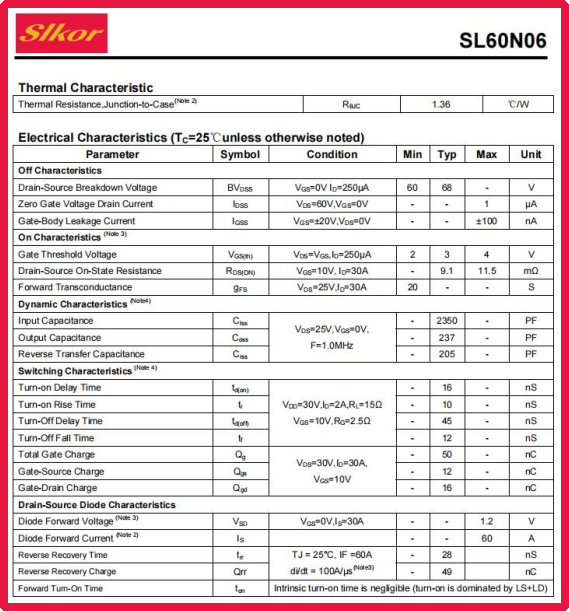

Parameters of Slkor Medium Voltage MOSFET SL60N06



The Slkor Medium Voltage MOSFET SL60N06 incorporates key technologies in microwave high-frequency circuits, including precision matching, packaging, and driver circuit design. In microwave circuits, the matching between components is crucial for circuit performance. This device requires effective matching with other components to ensure circuit stability and performance. Therefore, high-precision matching techniques are employed in the design and manufacturing process to guarantee impedance and phase matching between the MOSFET and other components. Additionally, advanced packaging techniques are utilized to enhance microwave performance and reliability effectively.

In today's rapidly advancing technological landscape and intensifying market competition, the importance of making the right product choices cannot be overstated. Slkor understands this well and offers customers a convenient and efficient product selection and substitution feature. Through the filtering and comparison tools on the Slkor website, customers can input key parameters to search for and identify products that best suit their needs.Additionally, they can access data on comparable domestic and international brands and models, providing valuable references for their decision-making process.

The product selection table is divided into several main categories, each with subcategories for different products. Customers can search for products within their desired category, saving considerable time and effort by quickly pinpointing the exact product they need from a plethora of options. Moreover, the filtering function on the Slkor website allows customers to input key parameters directly, enabling them to swiftly find relevant products.

Furthermore, by utilizing the product selection table and data on comparable domestic and international brands and models provided on the Slkor website, customers can more conveniently and rapidly discover products that meet their requirements while also gaining insights into alternative brands and models.


Mr. Song Shiqiang, General Manager of Slkor


Slkor Honors and Achievements



About Slkor

Slkor (www.slkoric.com) offers a range of high-end products including silicon carbide (SiC) diodes, SiC MOSFETs, IGBTs, fifth-generation ultra-fast recovery power diodes, and more, catering to industries such as new energy vehicles, high-end equipment, communication power devices, solar photovoltaics, medical equipment, and industrial automation. Their general-purpose products include Schottky diodes, ESD protection diodes, TVS transient suppression diodes, general-purpose diodes, and transistors. They also provide power devices such as high, medium, and low-voltage MOSFETs, silicon-controlled rectifiers, bridge stacks, as well as power management chips like LDOs, AC-DC converters, ADC chips, along with complementary products like Hall sensors, high-speed optocouplers, crystal oscillators, and more. These products find wide applications in smartphones, laptops, robots, smart homes, IoT, LED lighting, consumer electronics, wearable devices, and various other smart interconnected products!
