In the world of semiconductors, Zener diodes provide robust assurance for the stable operation of electronic devices, thanks to their unique voltage regulation characteristics. The BZT52B39 Zener diode not only inherits the excellent tradition of Zener diodes but also demonstrates limitless potential for innovation in its applications.

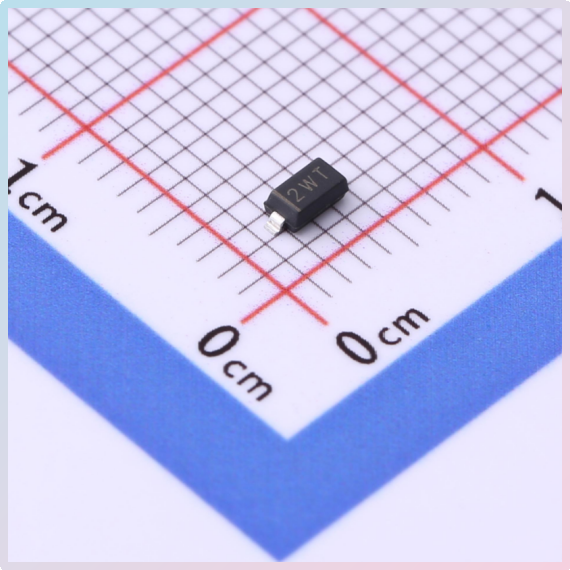

Slkor Voltage Regulator Diode BZT52B39 product photo

Features of the Zener Diode BZT52B39

With a centered nominal voltage regulation value of 39V, the BZT52B39 precisely controls its voltage regulation range between 38.22V and 39.78V. This feature enables outstanding voltage regulation performance across various electronic devices. Whether used in highly accurate measuring instruments or communication equipment requiring stable voltage support, the BZT52B39 ensures continuous and stable voltage output, guaranteeing precise device operation.

Its ±5% accuracy sets the BZT52B39 apart among Zener diodes, ensuring not only stable voltage output but also providing greater design flexibility for electronic device designers. Whether in power management circuits or voltage regulation modules, the BZT52B39 meets stringent requirements with its high precision and stability.

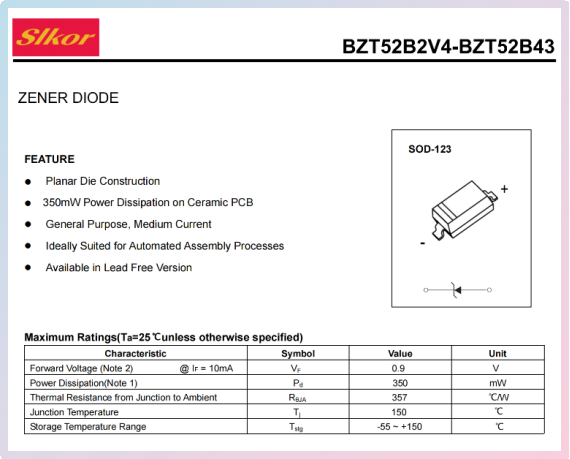

Slkor Voltage Regulator Diode BZT52B39 specification

Moreover, the BZT52B39 boasts an impressive power dissipation capability of 350mW. This means it maintains stable operation even under high-current surges, providing strong support for the stable operation of electronic devices in demanding environments, including high-load conditions and prolonged operational scenarios.

Furthermore, with a reverse leakage current of only 0.1μA, the BZT52B39 offers exceptionally high safety in circuit applications. Even under reverse voltage conditions, it maintains minimal current flow, effectively mitigating risks of circuit damage due to excessive currents.

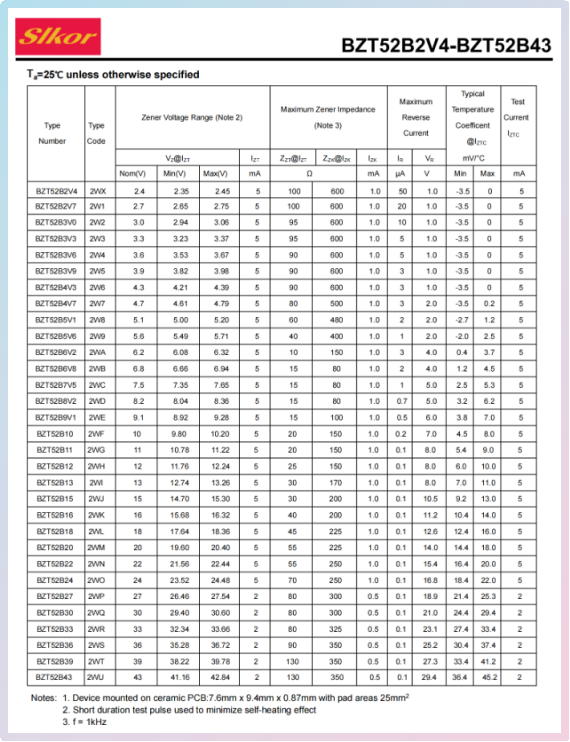

Parameters of Slkor Voltage Regulator Diode BZT52B39

However, the allure of the BZT52B39 extends beyond its outstanding performance parameters. In practical applications, it has earned widespread acclaim for its innovation and flexibility. Whether in battery management systems for electric vehicles or power control modules in smart homes, the BZT52B39 provides robust support with its high precision and stability.

Detailed Analysis of High-Precision Zener Diode Technology

I. Operating Principle

The operation of a Zener diode is based on its unique PN junction structure and impurity concentration distribution. When a reverse voltage is applied across the diode, the depletion layer in the PN junction expands, preventing current flow. However, when the reverse voltage reaches a certain threshold, the electric field strength in the depletion layer is sufficient to generate electron-hole pairs through thermal generation, leading to the "Zener breakdown." High-precision Zener diodes achieve stable and controllable breakdown voltages by precisely controlling impurity concentrations, optimizing PN junction structures, and thus providing high-precision voltage regulation.

II. Key Technical Specifications

Voltage regulation value

Accuracy

Power dissipation

Reverse leakage current

III. Application Areas

High-precision Zener diodes find wide application in electronic devices requiring stable voltage support. For instance, in precision measuring instruments, they provide stable reference voltages for sensors and amplifiers, ensuring measurement accuracy. In communication equipment, they stabilize voltage environments for signal processing circuits, guaranteeing stable signal transmission. Moreover, in industrial automation, automotive electronics, aerospace, and other fields, high-precision Zener diodes play crucial roles.

IV. Future Development Trends

As technology advances, electronic devices increasingly demand higher performance from Zener diodes. In the future, high-precision Zener diodes will evolve towards higher precision, greater power handling, and lower reverse leakage currents. Additionally, with emerging new materials and technologies, such as Silicon Carbide (SiC) and Gallium Nitride (GaN) Zener diodes, there is potential to achieve higher voltage endurance and lower on-state resistance, thereby enhancing overall circuit performance.
