Introduction
Voltage regulator diodes are a popular component in electronic circuits that help regulate voltage levels and protect sensitive electronic components from over-voltage. One such diode is the MMSZ5232B, which has a zener voltage of 5.6V and a precision of ±5%. In this article, we'll take a closer look at the MMSZ5232B and its specifications.

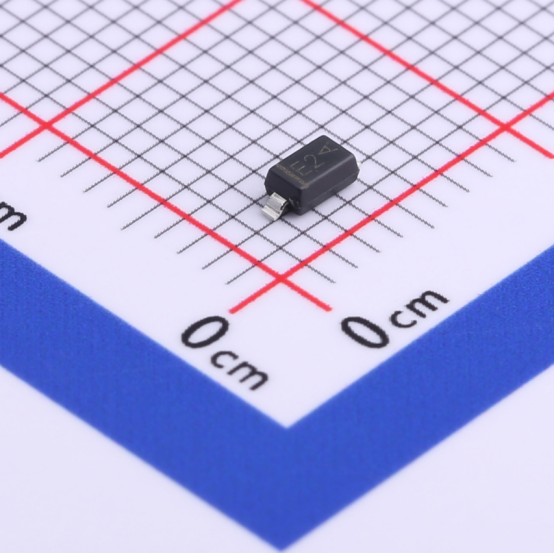

Slkor Voltage Regulator Diode MMSZ5232B product photo

Slkor Zener diode MMSZ5232B specification

Voltage Zener (VZTyp) and Precision

The MMSZ5232B voltage regulator diode has a Zener voltage of 5.6V. The Zener voltage specification indicates the voltage at which the diode will begin conducting current. For example, if the voltage across the diode exceeds 5.6V, the diode will start to conduct and regulate the voltage. This makes the MMSZ5232B an ideal choice for applications where a stable voltage is required.

The precision of the MMSZ5232B is ±5%.
This means that the actual Zener voltage can vary by up to 5% from the nominal value of 5.6V. This tolerance is important to consider when designing circuits that require precise voltage regulation.

Power Dissipation (PD)

The MMSZ5232B has a power dissipation rating (PD) of 500mW. The PD specification indicates the amount of power the diode can safely dissipate as heat without being damaged. In other words, the PD specification tells us how much power the diode can handle before it overheats and fails. It's important to ensure that the operating conditions of the diode do not exceed its PD rating to prevent damage.

Reverse Current (Ir)

The MMSZ5232B has a reverse current rating (Ir) of 5nA at 3V. The Ir specification indicates the amount of current that will flow through the diode in the reverse direction when a voltage is applied in that direction. In other words, it tells us how much current will leak through the diode when it's supposed to be blocking the flow of current. The lower the Ir rating, the better the diode is at preventing reverse current from flowing.

Parameters of Slkor Zener diode MMSZ5232B

Conclusion

In summary, the MMSZ5232B is a voltage regulator diode with a Zener voltage of 5.6V and a precision of ±5%. It has a power dissipation rating of 500mW and a reverse current rating of 5nA at 3V. These specifications make the MMSZ5232B an ideal choice for applications where precise voltage regulation is required, and where protection against over-voltage and reverse current is necessary.
