Description

The 1117 is a series of low dropout voltage regulators which can provide up to 1A of output current. The 1117 is available in six fixed voltage, 1.2, 1.5, 1.8, 2.5, 3.3 and 5.0V. Additionally it is also available in adjustable version. On chip precision trimming adjusts the reference/output voltage to within 2%.On-chip thermal limiting provides protection against any combination of overload and ambient temperatures that would create excessive junction temperatures. The 1117 series is available in SOT-223.TO-252.SOT89 packages. A minimum of 10uF tantalum capacitor is required at the output to improve the transient response and stability.

Features

● Low Dropout Voltage.

● Load regulation: 0.5% Max.

● Optimized for Low Voltage.

● On-chip thermal limiting.

● Maximum Input Voltage: 30V.

● Adjustable Output Voltage or Fixed 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V.

● Standard SOT-223.TO-252,SOT89 Packages.

Applications

● Post Regulator for switching DC/DC Converter

● High Efficiency Linear Regulator

● Battery Chargers

● PC Add on Card

● Motherboard clock supplies

● LCD Monitor

● Set-top Box

About Slkor

With an elite team from prestigious Chinese Tsinghua University and Korean Seoul Yonsei University, Shenzhen Slkor Micro Semicon Co., Ltd. is dedicated to the third generation semiconductor SiC power devices and conventional semiconductor devices. We are strong on the relevant methodologies, new materials, new technologies and new products. Our products cover discrete devices and ICs,  diodes, transistors, power devices, power management chips, and analogue chips etc. Under the strong leadership of Mr. Song Shiqiang, the CEO of Slkor, starts from an IP design house, Slkor is now a national high-tech enterprise covering the R&D, production and sales service of semiconductor devices. Slkor provides quality domestic equivalents of semiconductor from major international players. For prompt services, Slkor has two flagship stores in the world famous hardware valley Shenzhen Huaqiangbei.

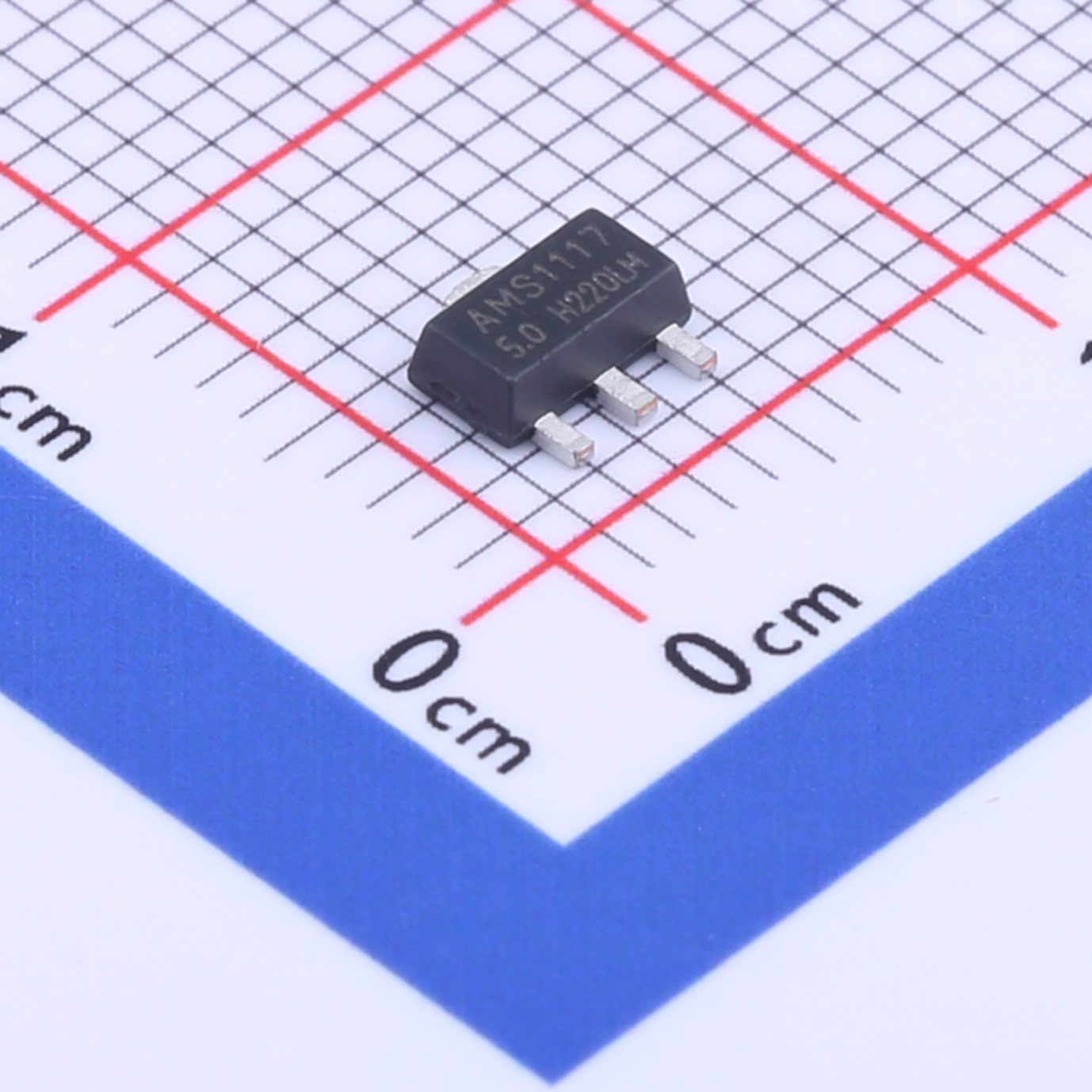

1117-5.0To Product Page
