In electronic circuits, voltage regulator diodes are crucial components that provide stable voltage output, ensuring the proper functioning of other elements in the circuit. Among the various models of voltage regulator diodes, the BZT52C6V8 stands out for its excellent performance and stable operation, earning favor from numerous engineers and technicians. This article will provide a detailed overview of the characteristics, parameters, and applications of the BZT52C6V8 voltage regulator diode.

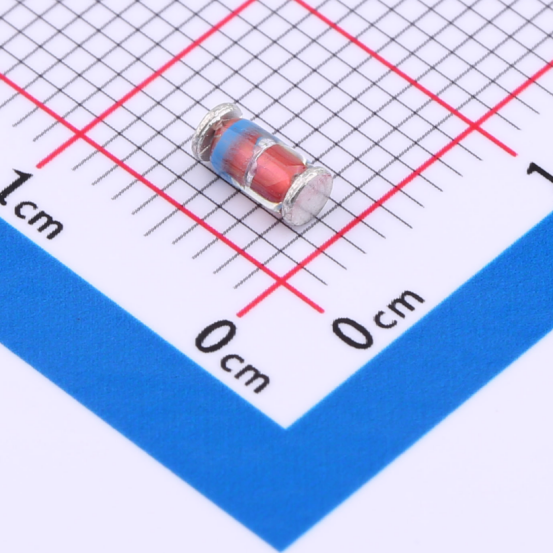

Slkor Voltage Regulator Diode BZT52C6V8 product photo

Slkor Voltage Regulator Diode BZT52C6V8 specification

I. Main Parameters of BZT52C6V8 Voltage Regulator Diode

Rated Power: 500mW. This refers to the maximum power the diode can withstand under normal operating conditions. Exceeding this power may lead to diode damage or performance degradation.

Rated Voltage: 6.8V (typical value). This indicates the approximate constant voltage the diode can maintain during reverse breakdown. The actual voltage may vary slightly due to manufacturing tolerances, temperature, and operating conditions.

Reverse Current (Ir): 2μA@4V. This denotes the current flowing through the diode in the reverse direction when it has not reached the breakdown voltage. This value is small, indicating that the diode has high resistance when not at the breakdown voltage.

Parameters of Slkor Voltage Regulator Diode BZT52C6V8

II. Applications of BZT52C6V8 Voltage Regulator Diode

Due to its high precision and low temperature coefficient, the BZT52C6V8 voltage regulator diode is often used in circuits requiring precise voltage control, such as power supply circuits, amplifier circuits, sensor circuits, etc. In these circuits, the voltage regulator diode provides a stable reference voltage, ensuring the normal operation of other components.

Additionally, the BZT52C6V8 voltage regulator diode can be used to protect circuits from overvoltage damage. When the voltage in the circuit exceeds the breakdown voltage of the diode, it rapidly conducts, diverting the excess voltage to the ground, thus protecting other components in the circuit from damage.

III. Precautions for Use

When using the BZT52C6V8 voltage regulator diode, ensure that the input voltage does not exceed its rated power and rated voltage.

When designing circuits, consider the temperature coefficient of the voltage regulator diode to ensure stable operation of the circuit at different temperatures.

During soldering and installation, take care to avoid causing mechanical or thermal damage to the voltage regulator diode.

Before use, inspect the appearance and pins of the voltage regulator diode to ensure there is no damage or short circuits.

The replacement and application of voltage regulator diodes are important topics involving electronic component replacement and circuit design.

IV.Replacement and Application of Voltage Regulator Diodes

Replacement of Voltage Regulator Diodes:

● Determine the parameters of the voltage regulator diode:

Before replacing the voltage regulator diode, it is essential to ascertain the rated voltage and current of the original diode. This can be achieved by either identifying the model of the voltage regulator diode from the original circuit or measuring the voltage and current in the circuit using a multimeter.

● Select a voltage regulator diode with matching specifications:

The rated voltage of the selected voltage regulator diode should be the same as or higher than that of the original circuit, and the current rating should be equivalent or higher.

● Identify the package and pin count of the voltage regulator diode:

Voltage regulator diodes come in various packages such as DO-35, DO-15, SOT-23, etc. When replacing, ensure that the selected voltage regulator diode has the same package and pin count as the original diode or is compatible.

● Choose a high-quality voltage regulator diode:

When purchasing voltage regulator diodes, opt for products from reputable manufacturers and pay attention to their quality certification and packaging.

● Replacement Procedure:

Turn off the power and disconnect the circuit connected to the voltage regulator diode.

Use a soldering iron and desoldering pump or soldering wick to remove the old voltage regulator diode and solder joints.

Place the new voltage regulator diode onto the solder pads and connect them to the circuit.

Use a multimeter or oscilloscope to test the connections and ensure the circuit operates normally.

Application of Voltage Regulator Diodes:

● Voltage Regulation:

When a voltage regulator diode is reverse-biased, if the reverse voltage exceeds its breakdown voltage, the current through the diode will sharply increase while the voltage across its terminals remains relatively constant, thus providing voltage regulation.

● Surge Protection:

Voltage regulator diodes, when accurately biased, can be used as limiting or protection devices. For instance, when the supply voltage exceeds the voltage regulation value of the diode, it conducts, isolating the load from the supply and protecting the circuit from surge voltages.

● Series Connection:

In cases where there isn't a voltage regulator diode with an appropriate voltage rating, multiple diodes can be connected in series to achieve the desired voltage regulation value. Additionally, voltage regulator diodes can be connected in series with other diodes to meet specific voltage regulation requirements.

● Alternative Solutions:

In certain scenarios, rectifier diodes, bipolar junction transistors, or light-emitting diodes can be used as substitutes for voltage regulator diodes. For example, the forward voltage drop of a silicon diode is approximately 0.7V, making it suitable for use as a voltage regulator with a regulation value of 0.7V.
