【Daily Highlight】Application and Advantages of Zener Diode BZT52B5V1BS in Circuit Design

release time:2024-07-10Author source:SlkorBrowse:4632

Zener diodes play a crucial role in circuit design by providing stable voltage references, ensuring electronic devices operate reliably under various conditions. Among many Zener diodes, the BZT52B5V1BS stands out for its excellent performance and stability, making it a preferred choice for numerous engineers.

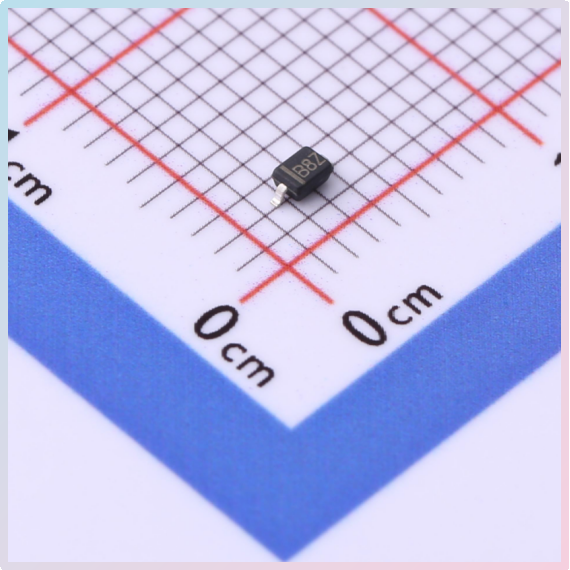

Slkor Voltage Regulator Diode BZT52B5V1BS product photo


Features of the Zener Diode BZT52B5V1BS

The BZT52B5V1BS has a nominal voltage regulation value of 5.1V, with a range typically between 5V and 5.2V. This characteristic makes it an ideal component for critical parts such as power management circuits, voltage references, and protection circuits. In power management circuits, it ensures stable output voltage, safeguarding devices against damage due to voltage fluctuations. As a voltage reference, it provides an accurate and stable voltage baseline for other circuit components, ensuring precise operation of the entire system.



Accuracy is a key specification for Zener diodes, and the BZT52B5V1BS achieves an accuracy of ±5%. This means it maintains minimal deviation in output voltage under normal operating conditions, providing high stability for electronic devices. This high precision is particularly crucial in applications requiring precise voltage control, such as precision measuring instruments and communication systems.

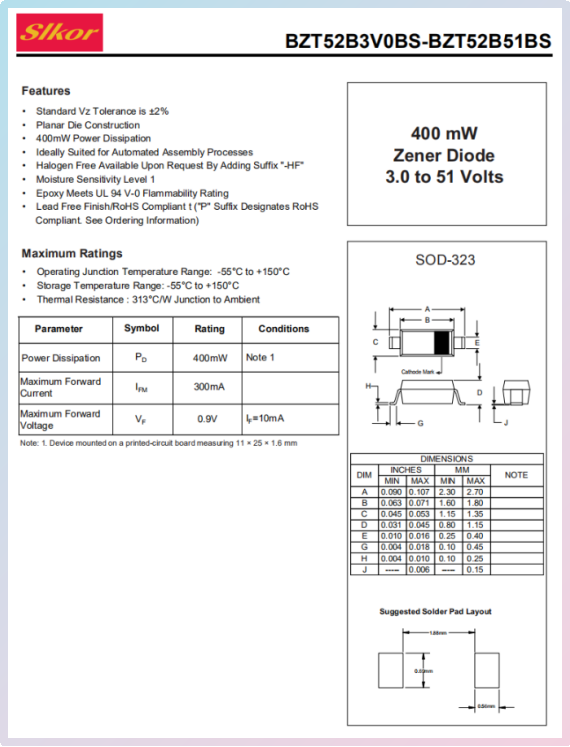

Slkor Voltage Regulator Diode BZT52B5V1BS specification


In addition to high accuracy, the BZT52B5V1BS offers the advantage of low power consumption, with a power rating of 400mW. This ensures minimal energy consumption while maintaining a stable voltage output, enhancing competitiveness in various electronic devices amidst growing emphasis on energy efficiency and sustainability.



Furthermore, the reverse leakage current (Ir) of this Zener diode is only 2μA, minimizing additional power loss under reverse voltage conditions. This feature is particularly important for long-term operation of electronic devices, effectively reducing overall energy consumption and extending operational lifespan.

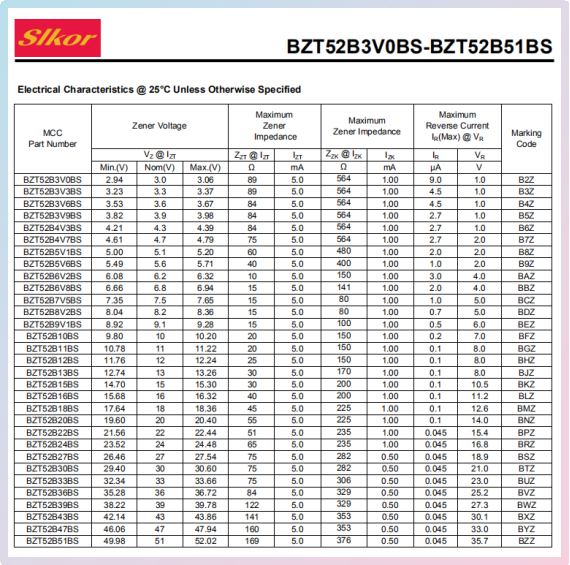

Parameters of Slkor Voltage Regulator Diode BZT52B5V1BS


Applications

In practical applications, the BZT52B5V1BS Zener diode is widely used across various electronic devices. In power management circuits, it guarantees stable power output, providing continuous and reliable electrical support. In voltage reference circuits, it ensures accurate voltage references for other circuit components, thereby maintaining stable operation of the entire electronic system. In protection circuits, it effectively prevents damage to devices caused by excessively high or low voltages.



Advantages of Domestic Zener Diodes



Cost-effectiveness: Domestic Zener diodes typically offer high cost-effectiveness due to local production, which reduces manufacturing costs and enhances price competitiveness. This advantage is particularly beneficial for large-scale production of electronic products.



Technological Innovation: In recent years, the domestic semiconductor industry has made significant strides in technological innovation. Domestic Zener diodes have continuously improved in performance, stability, and reliability, and have even reached international advanced levels in certain technical indicators, thanks to ongoing investment in research and innovation by domestic manufacturers.



Customized Services: Domestic Zener diode manufacturers are more adept at understanding and meeting local market demands, providing customized products and services tailored to specific customer requirements. This flexibility gives domestic Zener diodes an edge in meeting specific application needs.



Supply Chain Stability: The production and supply chain of domestic Zener diodes are relatively stable, less affected by international political and economic fluctuations. This contributes to ensuring supply chain security for the domestic electronics manufacturing industry, reducing risks of production disruptions due to external factors.



Quick Response and Technical Support: Domestic manufacturers typically offer faster and more convenient customer service and technical support. This enables quicker resolution of issues and provision of technical support, thereby enhancing production efficiency and product quality.



About Slkor:


Slkor has research and development offices in Busan, South Korea, Beijing, China, and Suzhou, China. Most of the wafer manufacturing and packaging and testing are carried out within China. The company employs and collaborates with individuals and organizations worldwide, with a laboratory for product performance and reliability testing and a central warehouse located at its headquarters in Shenzhen. Slkor has filed for over a hundred invention patents, offers more than 2,000 product models, and serves over ten thousand customers globally. Its products are exported to countries and regions including Europe, the Americas, Southeast Asia, and the Middle East, making it one of the rapidly growing semiconductor companies in recent years. With well-established management systems and streamlined workflows, Slkor has rapidly enhanced the brand awareness and reputation of its "SLKOR" brand through its outstanding quality and standardized services. Its product range includes three major series: diodes, transistors, and power devices, with recent introductions of new products such as Hall elements and analog devices, expanding its presence in sensors, Risc-v microcontrollers, and other product categories.
