In the world of electronics, Zener diodes play a crucial role in maintaining circuit stability. Today, we delve into a highly acclaimed Zener diode, the BZT52B33BS, to analyze its technical characteristics and application value in detail.

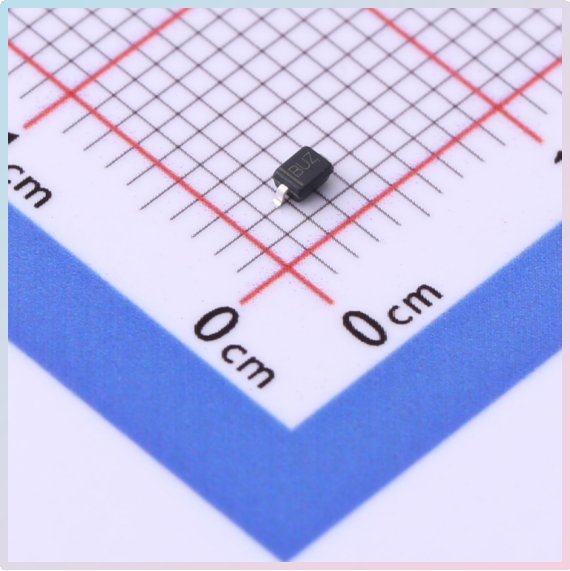

Slkor Voltage Regulator Diode BZT52B33BS product photo

Features of BZT52B33BS Zener Diode

The BZT52B33BS is rated at 33V, meaning it reliably provides a stable 33V voltage output under normal operating conditions. This feature is critical for electronic devices that require stable voltage supply, ensuring that circuits can operate reliably even amidst power fluctuations or load variations.

In addition to its nominal voltage rating, the BZT52B33BS offers a voltage range from 32.34V to 33.66V. This range indicates the diode's ability to maintain voltage across different operating conditions, providing greater flexibility in circuit design.

Precision is a key metric for evaluating Zener diode performance. The BZT52B33BS boasts an accuracy of ±5%, meaning its actual output voltage deviates from the nominal value by no more than 5%. This high precision makes the BZT52B33BS well-suited for applications in precision electronic devices and instruments.

In terms of power handling, the BZT52B33BS can deliver a stable power output of up to 400mW. This capability allows it to drive a variety of loads, catering to a wide range of application scenarios.

Reverse current (Ir) is another critical parameter for Zener diodes. The BZT52B33BS exhibits a reverse current of only 0.045μA, indicating minimal power consumption during reverse bias and contributing to overall circuit efficiency.

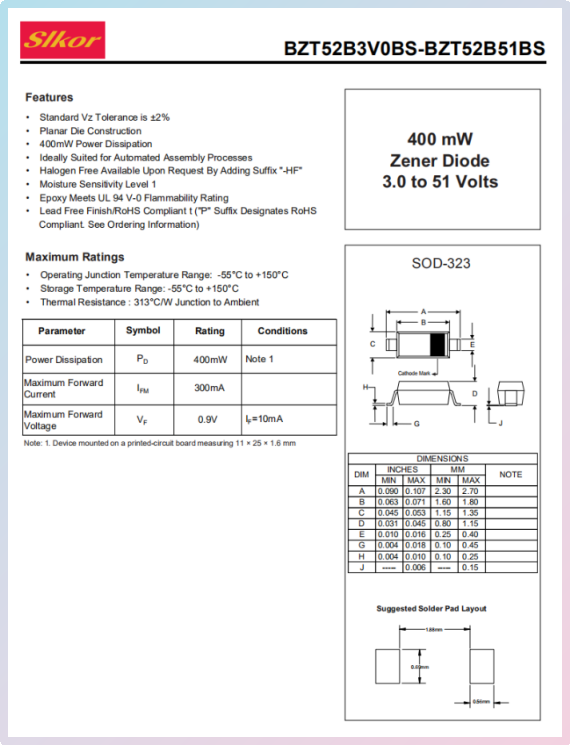

Slkor Voltage Regulator Diode BZT52B33BS specification

Advantages Summary:

● Excellent Voltage Regulation: With a nominal voltage rating of 33V and a stable range from 32.34V to 33.66V, the BZT52B33BS demonstrates outstanding voltage regulation capabilities, crucial for ensuring reliable circuit operation under various conditions.

● High Precision: The diode's ±5% accuracy provides robust support for electronic devices requiring precise voltage control.

● Low Reverse Current: A reverse current of only 0.045μA enhances overall circuit efficiency and performance.

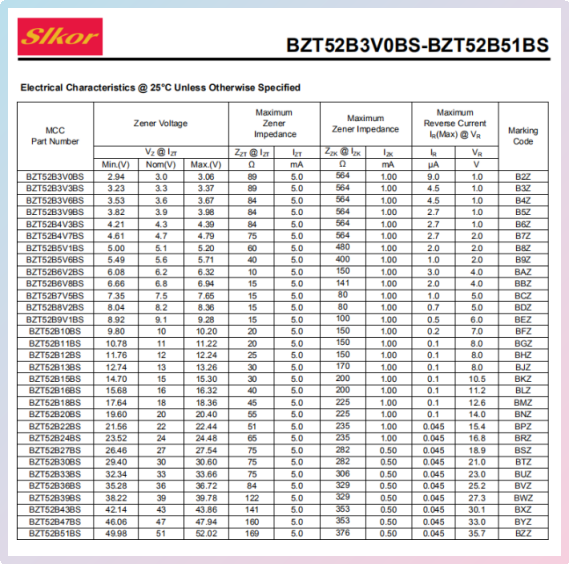

Parameters of Slkor Voltage Regulator Diode BZT52B33BS

Manufacturing Process, Materials Science, and Reliability of BZT52B33BS Zener Diode

When exploring the BZT52B33BS Zener diode in-depth, it's essential to consider its manufacturing process, materials science, and reliability testing that ensure its performance.

1. Manufacturing Process:The production of BZT52B33BS integrates advanced semiconductor technologies. Starting from silicon wafer preparation, the process involves precise doping, deposition, and etching steps to create the Zener diode with specific electrical characteristics. Doping processes are particularly crucial as they determine the diode's conductivity type and resistivity, while deposition and etching technologies construct the diode's intricate structures.

2. Materials Science:Material selection is critical for the performance of the BZT52B33BS. Silicon, widely chosen for its stable crystal structure and suitable bandgap, is the most commonly used semiconductor material. Carefully selected doping elements and concentrations precisely control the diode's electrical characteristics to meet specific voltage regulation requirements.

3. Reliability Testing:To ensure stability and reliability under various conditions, manufacturers subject the BZT52B33BS to rigorous testing. These tests include high-temperature aging, low-temperature testing, humidity testing, and mechanical stress testing, among others. Such tests simulate extreme environments the diode might encounter in practical applications, thereby ensuring its performance stability and reliability.

Moreover, each batch of BZT52B33BS undergoes sampling inspections to guarantee product consistency and quality. These inspections encompass electrical performance testing, visual inspections, and package integrity testing.

By understanding these aspects of manufacturing, materials science, and reliability testing, one gains a comprehensive view of the BZT52B33BS Zener diode's technological prowess and its suitability for demanding electronic applications.
