In the vast realm of electronic components, voltage regulator diodes stand out due to their unique voltage stabilization characteristics. Today, we will focus on a specific voltage regulator diode—the MM1Z6V8B—exploring its key features, including voltage regulation, power rating, and reverse current.

1. Voltage Regulation: Precision Control for Stable Voltage

The nominal voltage regulation value of the MM1Z6V8B is 6.8V, which serves as an important reference when designing circuits. In practice, however, slight variations during manufacturing and external environmental factors can cause fluctuations in this value. For the MM1Z6V8B, the regulation range is precisely controlled between 6.65V and 6.93V. This broad yet stable range allows the MM1Z6V8B to maintain consistent voltage output under various circuit conditions, providing strong support for the normal operation of circuits.

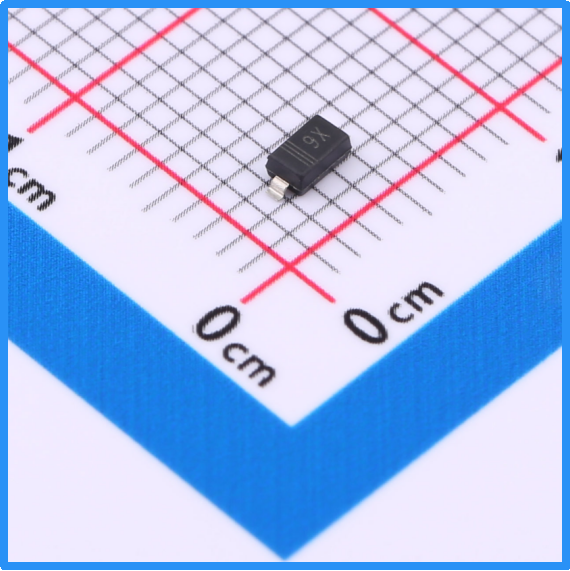

Slkor Voltage Regulator Diode MM1Z6V8B product photo

2. Power: Efficient Energy Conversion

In electronic circuits, power is a critical indicator of component performance. The MM1Z6V8B has a rated power of 500mW, meaning it can handle and convert up to 500 milliwatts of electrical energy under normal operating conditions. This high power tolerance ensures that the MM1Z6V8B maintains stable performance even in high current and high voltage environments, providing robust support for the efficient operation of circuits.

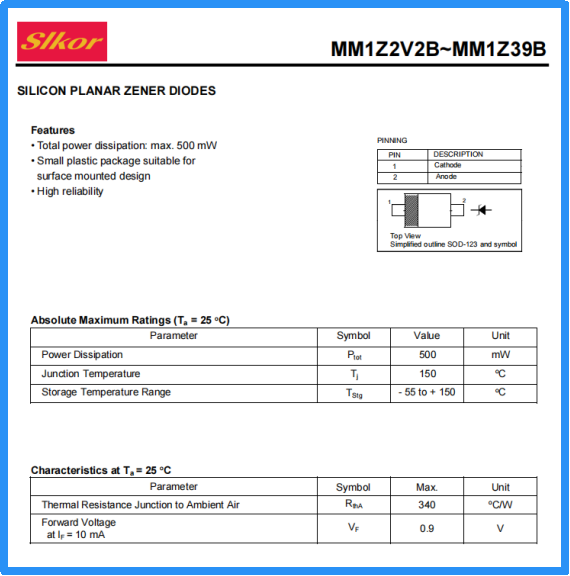

Slkor Voltage Regulator Diode MM1Z6V8B specification

3. Reverse Current: Low Loss Circuit Protection

Reverse current refers to the current flowing through a voltage regulator diode under reverse voltage. For the MM1Z6V8B, the reverse current is a mere 0.5 microamps. This extremely low reverse current value indicates that when the circuit is under reverse voltage, the MM1Z6V8B consumes almost no electrical energy, effectively reducing the circuit's power consumption. Additionally, the low reverse current enhances circuit stability and reliability, ensuring long-term stable operation.

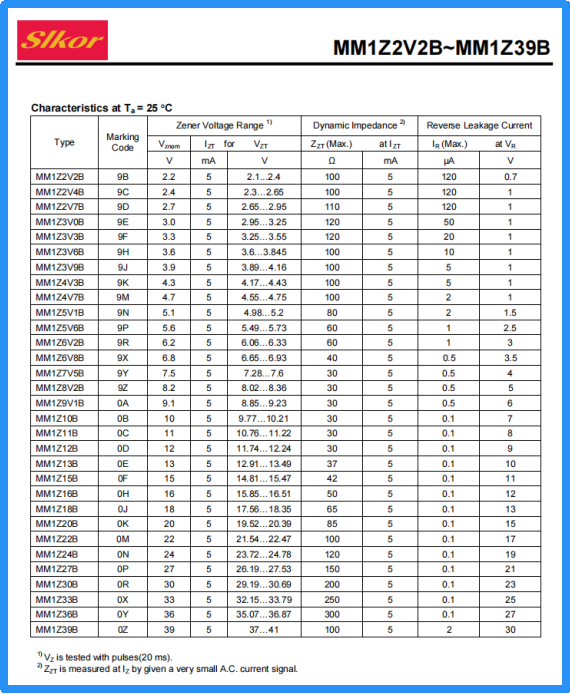

Parameters of Slkor Voltage Regulator Diode MM1Z6V8B

4. Application Prospects of MM1Z6V8B

With its precise voltage regulation, high power handling capability, and low loss reverse current characteristics, the MM1Z6V8B voltage regulator diode has broad application prospects in electronic circuits. It can serve as a voltage stabilizer, voltage protector, and voltage reference source, playing a crucial role in power management, signal processing, and communication circuits. As electronic technology continues to evolve, the application range of the MM1Z6V8B will expand and deepen.

5.Voltage regulator diodes play a vital role in maintaining the voltage stability of microprocessors.

Collaboration Between Voltage Regulator Diodes and Microprocessors

In microprocessor circuits, voltage stability is crucial. As the core component of electronic devices, fluctuations in the operating voltage of a microprocessor can directly impact its performance and stability. Therefore, incorporating a voltage regulator diode into the microprocessor circuit can effectively address voltage fluctuation issues, ensuring the microprocessor operates normally.

Specifically, when the input voltage of the microprocessor circuit increases, the voltage regulator diode quickly turns on, converting excess electrical energy into heat and releasing it, thereby maintaining stable voltage in the circuit. Conversely, when the input voltage drops, the voltage regulator diode reduces its impedance to release stored electrical energy, supplementing the voltage needed by the circuit. Through the dynamic adjustments of the voltage regulator diode, the voltage in the microprocessor circuit remains consistently within a stable range.

Practical Application Effects of Voltage Regulator Diodes in Circuits

In practical applications, voltage regulator diodes can significantly enhance the voltage stability of microprocessor circuits. By reducing voltage fluctuations and noise interference, voltage regulator diodes help improve the operating speed and accuracy of microprocessors. Additionally, they can extend the lifespan of microprocessors and reduce the failure rate caused by voltage instability. Furthermore, voltage regulator diodes are compact, energy-efficient, and have fast response times, making them widely applicable in microprocessor circuits.
