Introduction

With the continuous advancement of automotive electronics technology, the application of various electronic components in automotive electronic systems is becoming increasingly widespread. Among these components, the Zener diode plays a crucial role and is gaining more attention in the automotive electronics field. The MMSZ5250B Zener diode, with its unique performance and parameters, plays an important role in automotive electronic systems. This article will explore the application of the MMSZ5250B Zener diode in automotive electronics from several perspectives.

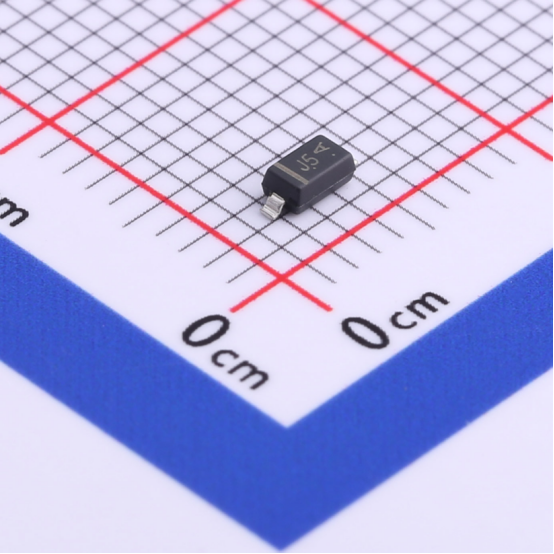

Slkor Voltage Regulator Diode MMSZ5250B product photo

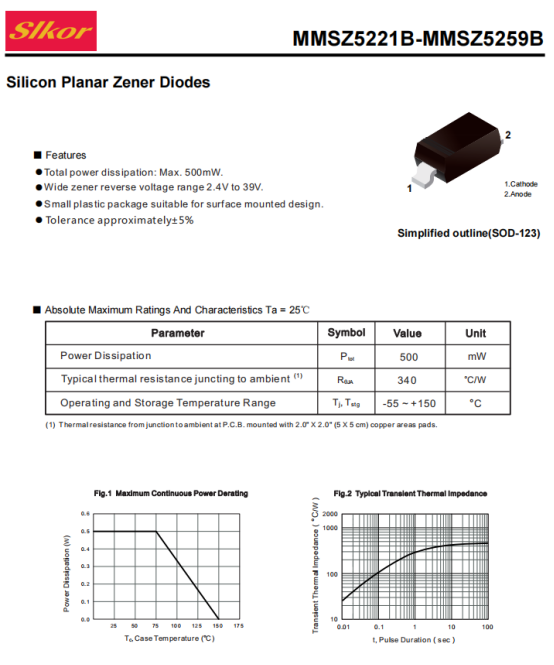

Slkor Voltage Regulator Diode MMSZ5250B specification

Product Overview

The MMSZ5250B Zener diode is characterized by high precision, low power consumption, and low reverse current. It has a nominal voltage of 20V with an accuracy of ±5%, a power rating of 500mW, and a reverse current (Ir) of just 0.1nA at 15V. These parameters make the MMSZ5250B Zener diode highly promising for use in automotive electronic systems.

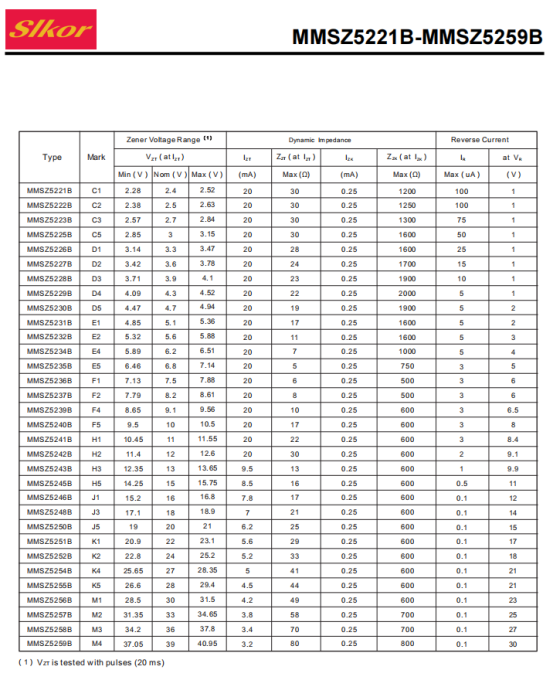

Parameters of Slkor Voltage Regulator Diode MMSZ5250B

Applications in Automotive Electronic Systems

1. Voltage Stabilization: Automotive power systems often face unstable voltage from generators, batteries, and other power sources. Such fluctuations can damage the internal electronic components of vehicles. The high precision voltage regulation of the MMSZ5250B Zener diode effectively maintains voltage within a safe range, protecting crucial components such as onboard computers, sensors, and control units from voltage variations.




2. Overvoltage Protection: In cases of generator failure or battery malfunction, the voltage can rise sharply, posing a threat to the vehicle's electronic equipment. The MMSZ5250B Zener diode can quickly respond to divert the excess voltage, preventing it from reaching and damaging other electronic components.




3. Power Filtering: Some components in automotive electronic systems are highly sensitive to power supply ripples and noise. The MMSZ5250B Zener diode helps filter out these unstable elements from the power supply, ensuring smooth voltage delivery and providing clean power to other devices, thus enhancing the overall performance of the electronic system.




4. Bulb Protection: In the vehicle's electrical system, bulbs have relatively high voltage requirements. Voltage fluctuations can shorten bulb life or cause unstable brightness. The MMSZ5250B Zener diode can effectively maintain a constant voltage for the bulbs, extending their lifespan and improving brightness performance.


Advantages

● High Precision Voltage Regulation: The ±5% accuracy ensures stable output voltage, meeting the precision requirements of automotive electronic systems.

● Low Power Consumption: The 500mW power rating reduces circuit energy consumption, helping to improve the energy efficiency of automotive electronic systems.

●  Low Reverse Current: The reverse current of 0.1nA minimizes energy consumption in non-working states, further enhancing efficiency.

Usage Considerations

●  Ensure that the MMSZ5250B operates within the specified voltage and current range to prevent component damage due to overload.

●  During installation and soldering, protect the component's leads and packaging to avoid mechanical or thermal damage.

●  In circuit design, select the appropriate Zener diode model and parameters based on actual needs to ensure circuit stability and reliability.
