In the field of electronics, Zener diodes play a crucial role, particularly in circuits requiring stable voltage output. Today, we'll delve into the widely used Zener diode, the MM5Z15, and analyze its technical specifications and potential applications in detail.

Technical Specifications

Zener Voltage: The nominal Zener voltage of the MM5Z15 is 15V. This means that when the diode is reverse-biased, it can maintain this stable voltage to a certain extent. In practice, the Zener voltage ranges from 13.8V to 15.6V, providing some flexibility in circuit design.

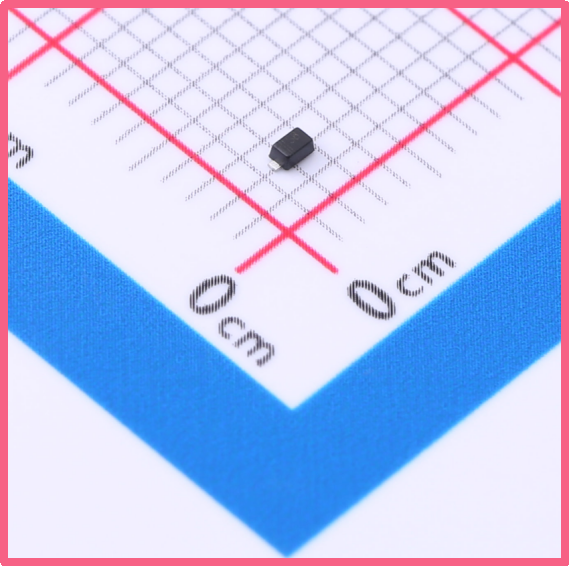

Slkor Voltage Regulator Diode MM5Z15 product photo

Power Rating: This diode has a rated power of 200mW. This indicates the maximum power the diode can handle under normal operating conditions. Exceeding this power could damage the diode, so careful attention to power matching is necessary in circuit design.

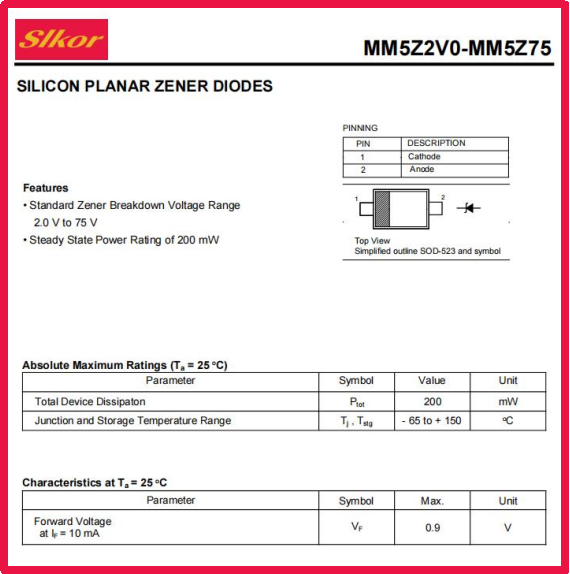

Slkor Voltage Regulator Diode MM5Z15 specification

Reverse Current (Ir): The reverse current of the MM5Z15 is 0.1μA. Reverse current is the current that flows when the diode is reverse-biased. For Zener diodes, the magnitude of reverse current affects its voltage regulation performance.

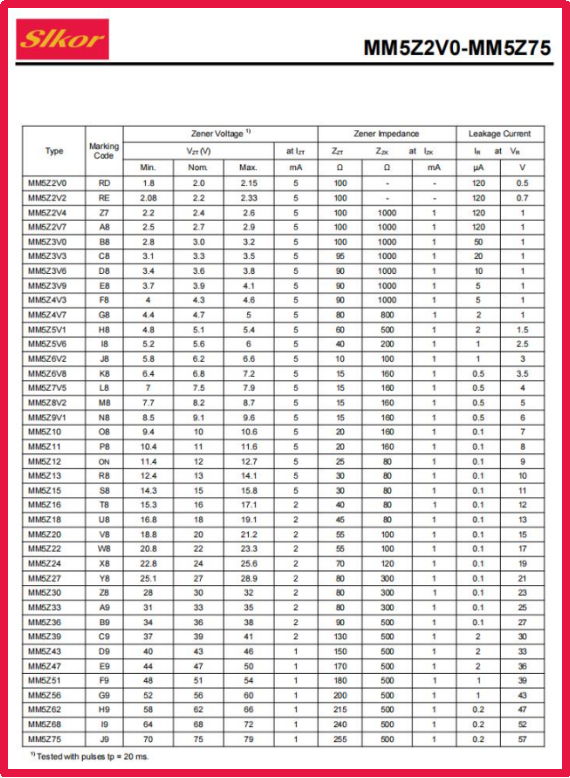

Parameters of Slkor Voltage Regulator Diode MM5Z15

Application Areas

The MM5Z15, with its excellent voltage regulation and moderate power handling capability, finds extensive applications in various fields:

Power Management: In power management circuits, Zener diodes are used to ensure the stability of the output voltage, thereby protecting subsequent circuits from voltage fluctuations. The 15V Zener voltage of the MM5Z15 makes it an ideal choice for certain power supply designs.

Protection Circuits: Over-voltage protection is critical in electronic devices. The MM5Z15 can be used as an over-voltage protection device, conducting when the voltage exceeds its Zener voltage to limit the voltage within a safe range.

Signal Conditioning: In some analog signal processing circuits, Zener diodes can be used to set precise reference or threshold voltages.

Considerations for Using Zener Diodes in RF Circuit Design

Zener diodes play an important role in RF circuit design, particularly in ensuring circuit stability and performance. Here are some basic guidelines and recommendations for using Zener diodes in RF circuit design:

Voltage Stability and Noise Suppression: Zener diodes can provide stable voltage references, which are crucial in RF circuits. Since RF circuits are highly sensitive to noise, Zener diodes can effectively suppress power supply noise to ensure signal clarity and stability.

Protecting Circuits from Surge and Overvoltage Damage: In RF circuits, Zener diodes can act as protection devices to prevent damage from surges or overvoltages. Selecting an appropriate Zener voltage ensures protection under abnormal voltage conditions.

Choosing the Right Zener Diode: When selecting a Zener diode for RF circuits, consider parameters such as Zener voltage, power rating, reverse current, and response time. These parameters will directly impact the circuit's performance and stability.

Layout and Routing Considerations: When placing Zener diodes on an RF circuit board, consider their impact on signal integrity. Proper layout and routing can reduce interference and enhance overall circuit performance.

Temperature and Stability: The performance of Zener diodes can be affected by temperature. In RF circuit design, consider the impact of temperature on Zener diode performance and implement appropriate cooling measures to ensure stable operation.
