【Daily Highlight】The Medium Voltage MOSFET IRF640

release time:2024-03-27Author source:SlkorBrowse:6855

With the rapid development of the new energy vehicle market, the motor drive system, as a core component, directly impacts the driving experience and range of electric vehicles in terms of performance and efficiency. The Medium-Voltage MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor), as an important member of power semiconductors, plays an indispensable role in the motor drive systems of new energy vehicles.This article will delve into the connection between Medium-Voltage MOSFET and the motor drive systems of new energy vehicles, analyzing its crucial role in technological innovation and driving performance improvement. First, let's understand the basic characteristics of Medium-Voltage MOSFET. With its unique structure and operating principles, Medium-Voltage MOSFET can operate stably in high-voltage, high-power environments while maintaining low losses and high efficiency. This makes it an ideal choice for the motor drive systems of new energy vehicles.During the motor drive process, Medium-Voltage MOSFET can precisely control the flow of current to ensure the efficient and stable operation of the motor. In the motor drive systems of new energy vehicles, Medium-Voltage MOSFET is mainly used in the inverter section. The inverter is a key component that converts direct current into alternating current, with Medium-Voltage MOSFET serving as a switching element in the inverter, responsible for controlling the direction and magnitude of the current flow.By precisely controlling the switching state of Medium-Voltage MOSFET, the inverter can convert the direct current from the battery into alternating current suitable for the motor operation, thereby driving the motor. However, relying solely on the excellent performance of Medium-Voltage MOSFET is not enough; it also requires precise control and optimization.Slkor (www.slkoric.com) offers a wide range of high-quality semiconductor products such as high, medium, and low-voltage MOSFETs, thyristors, bridge stacks, power management chips like LDOs, AC-DC converters, ADC chip series, etc.



Slkor Semiconductor silicon carbide field-effect transistor






In the motor drive systems of new energy vehicles, advanced control algorithms and circuit designs are typically employed to ensure that Medium-Voltage MOSFET operates at its optimum state. For instance, by optimizing the drive circuit and heat dissipation design of the MOSFET, its switching losses and temperature rise can be reduced, further enhancing the efficiency and reliability of the motor drive system.

Furthermore, as new energy vehicle technology continues to evolve, the performance requirements for Medium-Voltage MOSFET are constantly increasing. To meet higher power density and efficiency demands, researchers are continuously exploring new materials and processes to further enhance the performance of Medium-Voltage MOSFET. For example, the use of novel wide-bandgap semiconductor materials can significantly improve the voltage tolerance and switching speed of MOSFET, thereby further enhancing the performance of the motor drive system.



Medium Voltage MOSFET IRF640 product photo



The IRF640 is an N-channel MOSFET with a 200V drain-source voltage and continuous drain current of 18A. It is known for its low on-state resistance (150mΩ at 10V, 11A) and relatively low threshold voltage (3V at 250uA). These characteristics make the IRF640 an ideal switching component in the motor drive systems of new energy vehicles, especially in situations requiring high efficiency and precise control. It is suitable for various medium-voltage switching and power control applications.

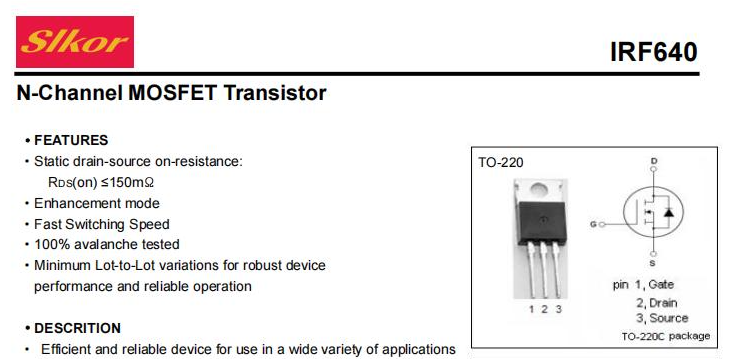

Slkor Medium Voltage MOSFET IRF640



The MOSFET IRF640 is able to more effectively conduct current when in the on-state, thereby reducing power losses and improving overall efficiency. In the motor drive systems of new energy vehicles, where a large amount of energy conversion is required, it has a lower RDS(on) to minimize energy losses. When the RDS(on) is less than 150mΩ, the IRF640 exhibits lower resistance in the on-state, enabling more efficient energy conversion. Additionally, minimal Lot-to-Lot variation is an important characteristic of the IRF640. Reduced Lot-to-Lot variation means that products from different batches are more consistent in performance, thereby enhancing the stability and reliability of the production process. This consistency is crucial in the motor drive systems of new energy vehicles, as even minor performance differences can impact the overall system operation. By optimizing production processes and quality control, the Medium-Voltage MOSFET can achieve minimal Lot-to-Lot variation, ensuring stable performance across each batch. Furthermore, conducting 100% avalanche testing ensures that the IRF640 possesses high voltage tolerance and stability in practical applications.

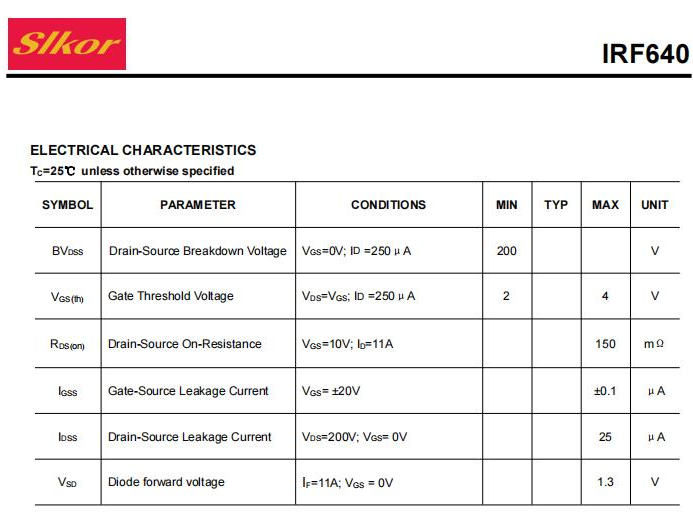

Parameters of Slkor Medium Voltage MOSFET IRF640



Firstly, in the motor drive systems of new energy vehicles, the robust performance and reliability of IRF640 ensure long-term stable operation, reducing the frequency of failures and maintenance. Secondly, in the field of industrial automation, this Medium-Voltage MOSFET is used as a driver and switch to control various equipment and machinery such as motors, pumps, and valves, enabling quick start-up, shutdown, and adjustment of equipment to improve production efficiency and quality. Additionally, in power systems, it is widely used in devices like power transformers and inverters to facilitate energy transmission and regulation, ensuring the safety and stable operation of power systems. In lighting systems and power electronic devices, it serves as a dimmer and switch for precise control and adjustment of lighting brightness. It can also be utilized in AC-DC converters and DC-AC inverters to enable energy conversion between different power sources.

In conclusion, the Medium-Voltage MOSFET IRF640 plays a pivotal role in the motor drive systems of new energy vehicles. Through continuous innovation and optimization, the Medium-Voltage MOSFET not only enhances the efficiency and reliability of motor drive systems but also provides strong support for performance improvements and increased range of new energy vehicles. With the continuous expansion of the new energy vehicle market and technological advancements, the application prospects of the Medium-Voltage MOSFET are becoming broader. We look forward to witnessing more technical breakthroughs and innovations in the field of motor drive systems for new energy vehicles using the Medium-Voltage MOSFET. As a company focused on power semiconductors, Slkor (www.Slkoric.com) will continue to play a vital role with its products including power devices, transistors, connectors, supporting the rapid development of non-contact technology and contributing to building a more intelligent, convenient, and secure future life.
