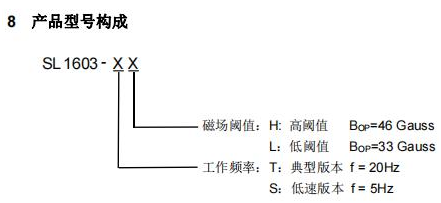

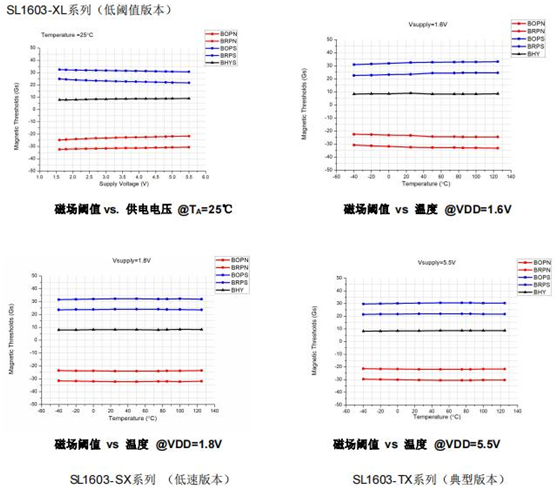

SL1603 is a low-power Hall switch sensor designed for space-constrained systems and battery-sensitive system designs. It offers a variety of options in the SL1603 series, including different magnetic field thresholds, switch operating frequencies, and packaging forms to meet various application requirements. The SL1603 chip integrates temperature compensation circuits and clock logic circuits to ensure stable operating points and switching frequencies in different environments. This means that even in situations where there is significant temperature change, the component can still provide reliable performance. Today we will be introducing the SL1603SL in the SL1603 series. The SL1603SL is a low-threshold version with 33 Gauss and a low switching frequency of 5Hz, and has the same excellent characteristics as the SL1603.

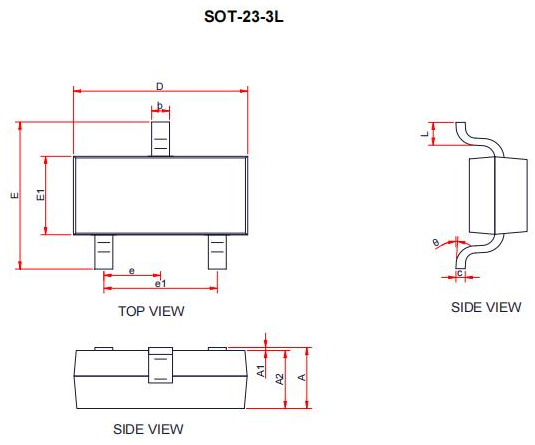

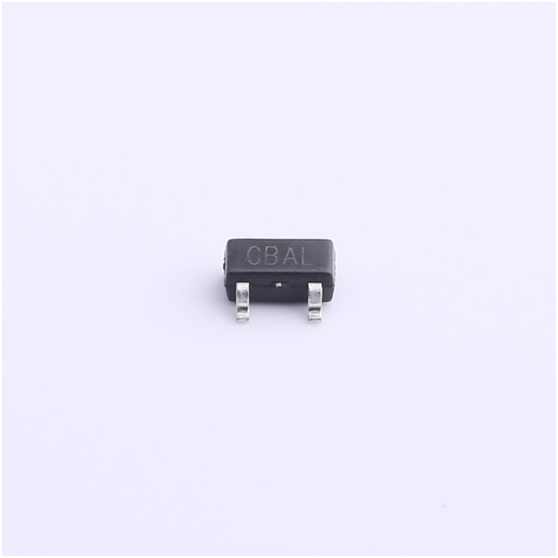

The SL1603SL is available in a three-pin SOT-23 package, suitable for simple and compact circuit connections. Here are some key parameters of the SL1603SL:

Polarity: Bipolar

Supply Voltage (VDD): 6V

Reverse Supply Voltage: -0.3V

Output Drive Current: 5mA

Operating Temperature Range: -50°C to +150°C

Human Body Model ESD Capability: 8000V

The supply voltage for the SL1603SL is 6V, with a static operating current of only 3.3μA. This makes it very suitable for battery-powered systems, as it can extend battery life and improve energy efficiency. The SL1603SL can provide full-polarity magnetic response at a scanning frequency of 5Hz. This means that it can quickly and accurately detect changes in the magnetic field at very low power consumption. Its performance is outstanding in applications requiring real-time response to changes in the magnetic field.

The SL1603SL performs well in various battery-powered systems and applications that require high space compactness. It is widely used in fields such as mobile devices, smart homes, and security systems. In the field of smart homes, the SL1603SL can be used as a door and window sensor to monitor the opening and closing status of doors and windows, enabling intelligent security and automation control. In the security system field, the SL1603SL can be used as a magnetic switch to monitor the opening and closing of doors and windows, providing security alarms and monitoring functions.

In summary, the SL1603SL is a low-power, high-performance Hall switch sensor that not only has broad application prospects in fields such as mobile devices, smart homes, and security systems, but also provides reliable and efficient solutions for these fields. Its excellent characteristics make the SL1603SL an essential and important component in electronic product design, providing users with a more intelligent, convenient, and secure user experience.

In addition to the SL1603SL, SLKOR also offers many high-performance, excellent Hall sensor products, such as SLSS360-3, SLSS49E-3, SL-322B, SLOH49E-9, SLSS451A-9, SL1603SH, SL1623SH, SL-302B, and so on, all of which can meet the market's demand for low-power, high-performance sensors. SLKOR will continue to drive innovation and development in electronic products.
