【Daily Highlight】The Voltage Regulator Diode 1SMA5925A

release time:2024-05-22Author source:SlkorBrowse:6019

Introduction
The 1SMA5925A is a voltage regulator renowned for its precision and reliability in electronic circuits. With a VZTyp value of 10V, a precision of ±5%, a power dissipation (PD) of 1.5W, and a low reverse current (Ir) of 5μA, this component plays a crucial role in ensuring stable voltage outputs in various applications. In this article, we will delve into the features and specifications of the 1SMA5925A, its applications, and the key considerations for using it effectively in electronic designs.

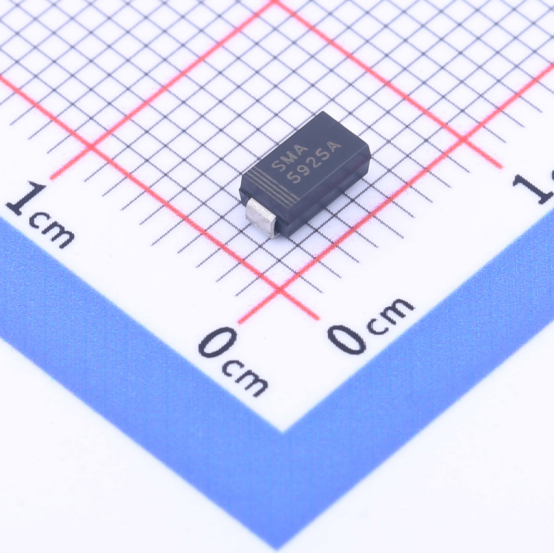

Slkor Voltage Regulator Diode 1SMA5925A product photo



Features and Specifications

The 1SMA5925A is a zener diode-based voltage regulator designed to provide a stable output voltage despite variations in input voltage and load conditions. Its VZTyp value of 10V indicates the typical zener voltage at a specified current, providing a reference for the regulated output. The precision of ±5% ensures that the output voltage remains within 5% of the nominal value under normal operating conditions, adding an important level of stability to the system.



With a power dissipation (PD) rating of 1.5W, the 1SMA5925A can handle a considerable amount of power, making it suitable for applications where heat dissipation is a concern. Additionally, the low reverse current (Ir) of 5μA minimizes the impact of leakage currents, contributing to the overall efficiency of the voltage regulation process.


Slkor Voltage Regulator Diode 1SMA5925A specification


Parameters of Slkor Voltage Regulator Diode 1SMA5925A



Applications

The 1SMA5925A finds widespread application in various electronic circuits where stable voltage regulation is essential. Some common applications include:



Power Supplies: The 1SMA5925A can be used in linear power supply circuits to maintain a constant output voltage, ensuring reliable operation of connected devices.

Voltage References: It serves as a precise voltage reference in instrumentation and measurement equipment, contributing to accurate and repeatable results.

Signal Conditioning: In sensor interfaces and signal conditioning circuits, the 1SMA5925A helps in maintaining consistent voltage levels for proper signal processing.

Audio Amplifiers: It can be employed in audio amplifier circuits to regulate bias voltages, leading to improved performance and fidelity of the audio output.

Considerations for Effective Use

When incorporating the 1SMA5925A into a circuit design, several considerations are crucial for ensuring its effective performance:



Heat Dissipation: Due to the PD rating of 1.5W, adequate heat sinking or thermal management should be implemented to prevent the component from overheating.

Load Regulation: Understanding the load regulation characteristics of the 1SMA5925A is important for designing the circuit to deliver consistent performance under varying load conditions.

Input Voltage Range: The input voltage range of the circuit should be well within the operational limits of the 1SMA5925A to ensure proper regulation and avoid potential damage to the component.

In conclusion, the 1SMA5925A is a versatile and reliable voltage regulator with a precise output and low reverse current, making it suitable for a wide range of electronic applications. When utilized with careful consideration of its specifications and operating parameters, it can significantly enhance the stability and performance of electronic circuits.



By understanding its features, applications, and the key considerations for its effective use, engineers and designers can leverage the 1SMA5925A to create robust and efficient electronic systems across various industries.
