In the design of electronic circuits, Zener diodes play a crucial role as "voltage guardians," ensuring stable operation within specific voltage ranges unaffected by external fluctuations. Today, we delve into the capabilities of the high-performance Zener diode 1SMA4740A, known for its precise voltage regulation, high reliability, and wide applicability across numerous electronic devices.

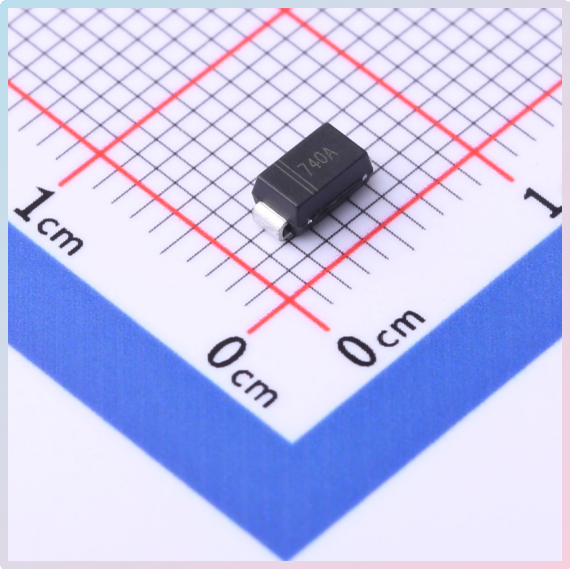

Slkor Voltage Regulator Diode 1SMA4740A product photo

Voltage Regulation: Precision and Stability Combined

The 1SMA4740A Zener diode maintains a nominal regulation voltage of 10V, ensuring that under normal operating conditions, it stabilizes circuit voltage around 10V. With a regulation range between 9.5V to 10.5V, these minor fluctuations are acceptable for most precision electronic devices, guaranteeing circuit stability and reliability. Additionally, the diode boasts a ±5% tolerance, ensuring that actual regulation values deviate no more than 5% from the nominal value, thereby enhancing application precision.

Power Handling and Heat Dissipation: Efficient Protection

Power handling is a critical performance metric for Zener diodes. The 1SMA4740A supports a power dissipation of 1W, capable of withstanding substantial current flow without overheating, thereby ensuring stable performance in complex or high-load circuits. Effective heat dissipation is crucial for sustained stable operation. While its impedance (Zzt) of 7Ω is primarily relevant for high-frequency environments (such as preventing high-frequency signal interference), it indirectly reflects the device's overall circuit matching and stability considerations during design.

Reverse Current and Safety

Under reverse voltage conditions, Zener diodes typically allow a small reverse current. For the 1SMA4740A, at a reverse voltage of 7.6V, the reverse current is only 50μA—this minimal value indicates negligible power consumption during reverse bias, effectively reducing power loss and heat generation while enhancing circuit safety.

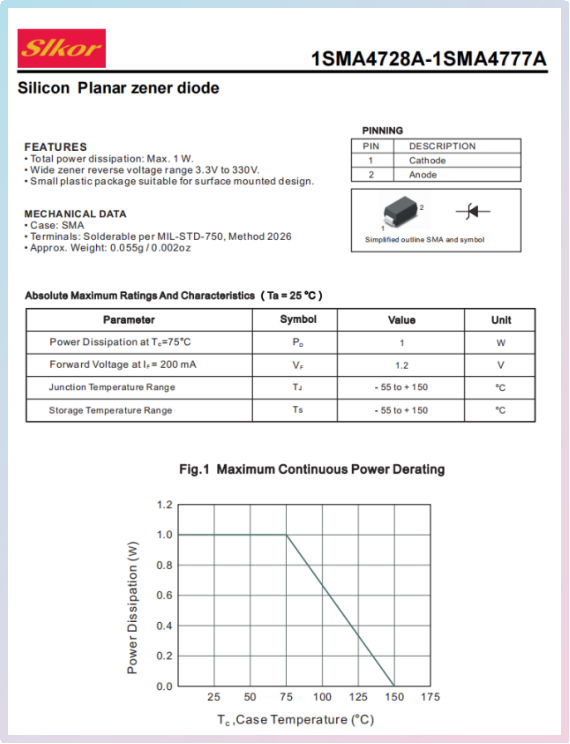

Slkor Voltage Regulator Diode 1SMA4740A specification

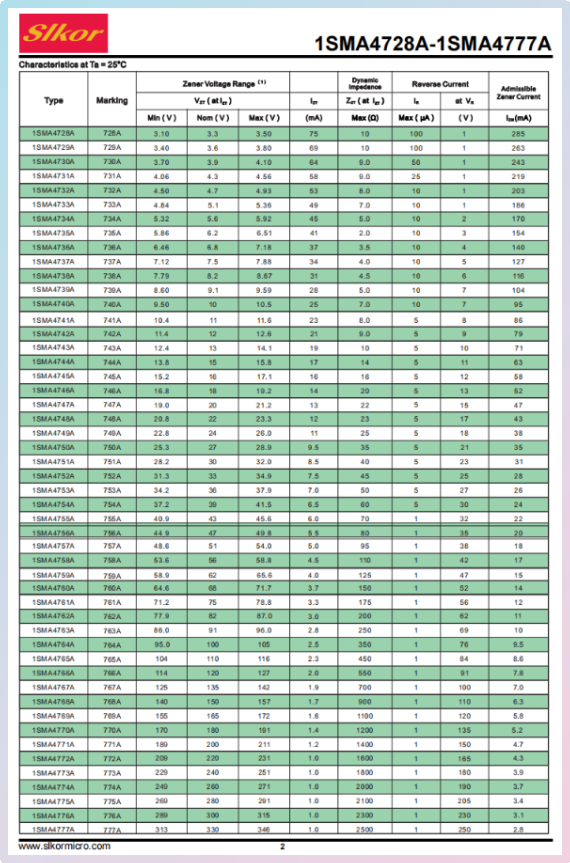

Parameters of Slkor Voltage Regulator Diode 1SMA4740A

Applications in Mobile Devices

Power Management

Stable Voltage Output: Mobile devices like smartphones, tablets, etc., require high voltage stability within their internal circuits. Zener diodes ensure stable voltage outputs in these devices' power management systems, safeguarding sensitive components from voltage fluctuations and extending device longevity.

Overvoltage Protection: In cases of battery or other power component failures causing voltage spikes, Zener diodes swiftly conduct and dissipate overvoltages to ground, protecting devices from damage—an essential feature for device protection against high voltage surges.

Signal Regulation and Protection

Signal Regulation: In mobile devices, Zener diodes regulate signal voltages to maintain stable amplitudes and waveforms during transmission, crucial for maintaining communication and audio quality.

Surge Protection: Mobile devices are susceptible to voltage surges during external device connections or charging. Zener diodes act as surge protection components, quickly conducting and absorbing surge energy to safeguard devices from damage.

Low Power Design

Mobile devices demand low power consumption to extend battery life. Zener diodes play a pivotal role in achieving low power consumption designs. With low reverse currents and high power efficiency, Zener diodes ensure voltage stability while minimizing unnecessary power consumption, thereby enhancing device endurance.

Specific Examples

Peripheral to Power Management ICs: Zener diodes complement power management ICs, ensuring stable voltage outputs and overvoltage protection.

Audio Amplification Circuits: They regulate voltage amplitudes in audio amplification circuits, ensuring reliable audio output quality.

USB Interface Protection: Zener diodes protect USB interfaces from voltage surges during external device connections, preventing potential damage.

Overall, the 1SMA4740A Zener diode exemplifies high performance, reliability, and versatility, making it indispensable in ensuring stable and secure operations across a wide array of electronic applications.
