In electronic engineering, the Zener diode is a crucial component capable of providing stable voltage outputs in circuits, ensuring the proper operation of electronic devices. Among the many Zener diodes available, the BZT52B10BS stands out as a preferred choice for engineers due to its excellent technical features and versatile applications.

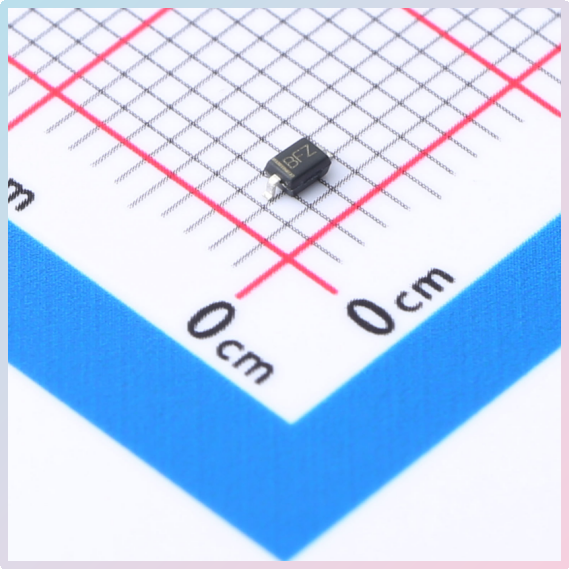

Slkor Voltage Regulator Diode BZT52B10BS product photo

Technical characteristics of the BZT52B10BS

This Zener diode has a nominal Zener voltage of 10V, meaning it reliably maintains a 10V output under normal operating conditions. Its voltage stability ranges from 9.8V to 10.2V, providing flexibility for circuit design to operate within a certain voltage fluctuation range while maintaining stability. Moreover, the BZT52B10BS boasts high accuracy with a tolerance of ±5%, ensuring precise and stable output voltage. In terms of power handling, it can withstand up to 400mW, demonstrating robust driving capability and durability. Notably, the reverse leakage current of the BZT52B10BS is exceptionally low at only 0.2μA, contributing to reduced power consumption and enhanced overall circuit efficiency.

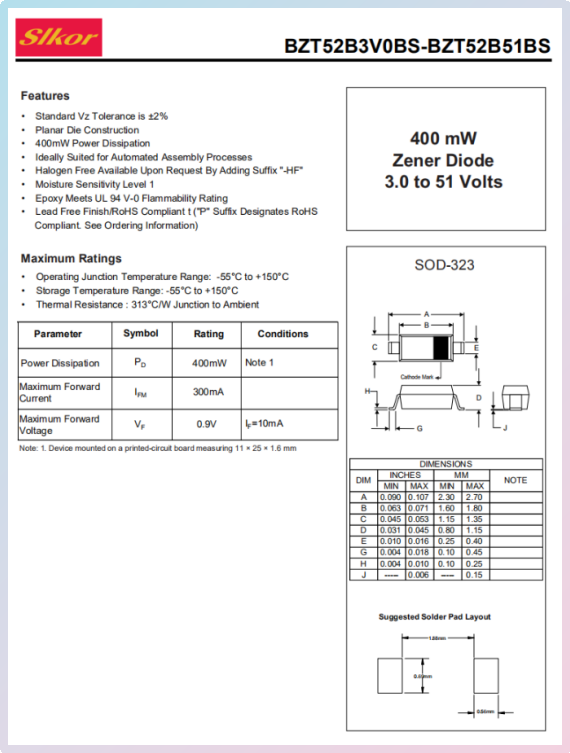

Slkor Voltage Regulator Diode BZT52B10BS specification

Operation principle

So, how does the BZT52B10BS achieve voltage regulation? Its operation principle relies on the reverse breakdown characteristics of the PN junction. When the reverse voltage reaches a certain threshold, the PN junction undergoes Zener breakdown, leading to a rapid increase in current while maintaining a relatively stable voltage. Precise control of this breakdown voltage allows the BZT52B10BS to provide stable power supply to circuits.

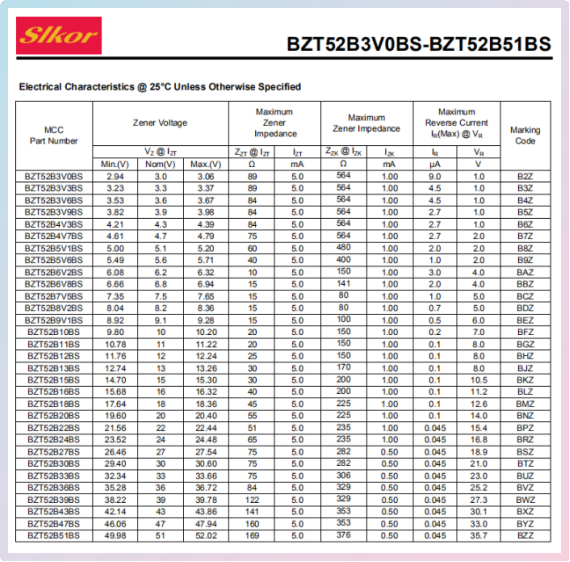

Parameters of Slkor Voltage Regulator Diode BZT52B10BS

Applications

In terms of applications, the BZT52B10BS finds widespread use. In power management systems, it ensures a continuous and stable 10V voltage output, thereby guaranteeing reliable power supply. Additionally, it responds quickly to power fluctuations or overvoltages, protecting circuits from damage, making it crucial in circuit protection applications. Furthermore, for devices requiring high-precision voltage supply, such as precision measuring instruments, the BZT52B10BS serves as an indispensable component.

Performance

What makes the BZT52B10BS a preferred choice among electronic engineers? Its attributes of high accuracy, stability, and low power consumption play a significant role. In electronic device design, a stable power supply is critical for ensuring performance. The BZT52B10BS not only provides a stable 10V output but also maintains high accuracy over a wide voltage range, significantly enhancing device reliability and performance. Moreover, its low power consumption helps prolong device lifespan and improve energy efficiency.

Advantages of Doping Technology in BZT52B10BS

Doping technology is a critical process in semiconductor manufacturing, involving the introduction of other elements into pure semiconductor materials to alter their electrical properties. For the Zener diode BZT52B10BS, doping technology offers several advantages:

Precise control of electrical properties: Doping allows precise adjustment of semiconductor conductivity, including resistivity, conductivity type, and carrier concentration, crucial for manufacturing Zener diodes with specific Zener voltages. The BZT52B10BS achieves its nominal 10V Zener voltage through precise doping techniques.

Improved temperature stability: Proper doping enhances semiconductor temperature stability. Interactions between doping elements and the original semiconductor material enable the material to maintain consistent electrical performance across different temperatures, crucial for ensuring stable voltage output in various operating environments.

Enhanced durability: Impurity atoms introduced by doping technology can strengthen the structural stability of semiconductor materials, thereby improving device durability. This means the BZT52B10BS can maintain its performance stability over long periods of use.

Expanded application range: Doping technology enables semiconductor materials to adapt to different application scenarios. For the BZT52B10BS, its high accuracy, stability, and low power consumption characteristics facilitate broad applications in power management, circuit protection, and high-precision equipment, benefiting from the flexible application of doping technology.
