With the continuous development of technology, the stability and reliability of internal circuits in televisions have become especially important. In television circuits, Zener diodes play a crucial role in providing stable voltage output, ensuring the normal operation of televisions under various working conditions. Among the many Zener diodes, the MMSZ5256B, with its high accuracy, low reverse current, and appropriate power handling capabilities, has become the ideal choice for television circuits.

I. Detailed Analysis of the Characteristics of the Zener Diode MMSZ5256B:

Basic Parameters

● Accuracy: ±5%

Accuracy refers to the deviation range between the voltage provided by the Zener diode and the nominal voltage. The accuracy of MMSZ5256B is ±5%, meaning that the actual provided voltage may range from 95% to 105% of the nominal voltage. For example, if the nominal voltage is 30V, the actual voltage may range from 28.5V to 31.5V.

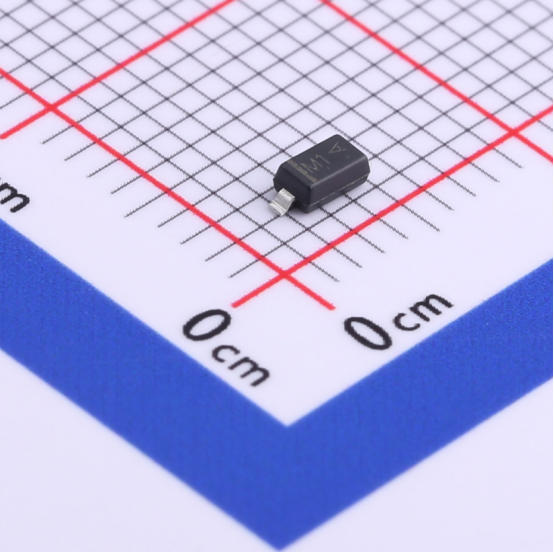

Slkor Voltage Regulator Diode MMSZ5256B product photo

● Power: 500mW

This is the maximum power that the Zener diode can safely dissipate. In application, it is necessary to ensure that the power passing through the diode does not exceed this value to prevent damage.

● Reverse Current (Ir): 0.1nA@23V

Reverse current refers to the current in the diode under reverse voltage. For Zener diodes, the reverse current is usually very small. At a reverse voltage of 23V, the reverse current of MMSZ5256B is 0.1nA, indicating its good reverse cutoff characteristics.

Slkor Voltage Regulator Diode MMSZ5256B specification

Parameters of Slkor Voltage Regulator Diode MMSZ5256B

Main Features

 ● Stability

With its ±5% accuracy, the MMSZ5256B provides stable voltage output to the circuit. In electronic devices such as televisions, this stability is crucial for ensuring image quality, audio performance, and overall functionality.

● Low Power Consumption

The dissipation of 500mW means that the diode generates relatively little heat under normal operating conditions. This helps lower the overall temperature of the equipment, improve reliability, and extend its lifespan.

● Good Reverse Cutoff Characteristics

A reverse current of 0.1nA@23V indicates that the diode conducts almost no current under reverse voltage. This is crucial for preventing reverse current from damaging other components in the circuit.

● Package and Size

The MMSZ5256B is typically packaged in SOD-123, which has a small size and light weight, making it suitable for high-density integration in various electronic devices.

● Temperature Range

The operating temperature range typically covers -55°C to +150°C, meaning that the MMSZ5256B can operate normally under a wide range of temperature conditions, meeting the requirements of various applications.

II. Application of the Zener Diode MMSZ5256B in Televisions

Power Modules: Televisions typically contain multiple power modules to provide the required voltages for different circuit sections. In these power modules, the MMSZ5256B Zener diode can serve as a voltage stabilizer to ensure the stability of the power output. By limiting the voltage fluctuation range, it helps protect sensitive circuit components inside the television from damage.

Image Processing Circuits: The image processing circuit of a television is responsible for converting received signals into displayable images. In this process, stable voltage is crucial for image quality and color reproduction. The MMSZ5256B Zener diode can provide stable voltage support for the image processing circuit, ensuring stable image output and high-quality display.

Audio Amplification Circuits: The audio amplification circuit of a television is responsible for amplifying audio signals to drive speakers for sound production. In this process, stable voltage has a significant impact on audio signal amplification and sound quality. The MMSZ5256B Zener diode can provide stable voltage support for the audio amplification circuit, ensuring stable signal amplification and clear sound quality.

III. Precautions for Using MMSZ5256B
Selecting the Appropriate Operating Voltage: When using the MMSZ5256B Zener diode, it is necessary to select the appropriate operating voltage based on the actual requirements of the television circuit. Excessively high or low voltages may cause the Zener diode to malfunction or be damaged.

Attention to Heat Dissipation: Although the power dissipation of the MMSZ5256B is low, it may still generate some heat under prolonged high-load operation. Therefore, heat dissipation issues need to be considered in design to ensure the normal operation of the Zener diode and extend its lifespan.

Adherence to Circuit Design Specifications: When using the MMSZ5256B Zener diode, it is important to adhere to circuit design specifications to ensure the stability and reliability of the circuit. Attention should also be paid to the matching and compatibility with other circuit components.
