【Daily Highlight】The Medium Voltage MOSFET SL2308

release time:2024-03-28Author source:SlkorBrowse:5992

With the continuous development of technology, electric balance scooters, as a new type of transportation, are increasingly favored by people for their unique control experience and environmentally friendly and energy-saving features. In the core technology of balance scooters, power electronic components play a crucial role, among which Medium-Voltage MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) is widely used in the power electronic systems of electric vehicles, electric bicycles, and other electric transportation tools. In the field of balance scooters, the application of Medium-Voltage MOSFET mainly lies in motor control, battery management, and energy recovery. Firstly, the stability of the scooter's movement largely depends on the precise control of the motor. As the core component of the motor drive circuit, Medium-Voltage MOSFET can achieve precise regulation of motor current, thereby ensuring the smooth operation of the balance scooter. By precisely controlling the motor's speed and torque, Medium-Voltage MOSFET not only enhances the scooter's handling performance but also reduces energy consumption and extends the battery life. Secondly, the battery is the energy source of the balance scooter, and its management efficiency directly affects the scooter's range and lifespan. Medium-Voltage MOSFET can achieve precise control of the battery charging and discharging process, avoiding overcharging, over-discharging, and other issues, thus protecting the battery from damage. At the same time, Medium-Voltage MOSFET can also provide real-time monitoring of the battery status, offering accurate information on battery levels to ensure safe driving. In addition, a significant amount of braking energy is generated during the scooter's braking or downhill processes. By utilizing Medium-Voltage MOSFET's efficient energy recovery technology, this energy can be converted into electrical energy and stored for subsequent use, thus improving energy utilization and reducing the operating costs of the balance scooter. Slkor (www.slkoric.com) offers a wide range of superior semiconductor device products, such as high-, medium-, and low-voltage MOSFETs, thyristors, bridge stacks, power management chips like LDO, AC-DC, ADC chip series, and more.


Slkor Semiconductor silicon carbide field-effect transistor



In the battery management of balance scooters, the main role of Medium-Voltage MOSFET is reflected in the precise control of the battery charging and discharging processes, as well as the real-time monitoring of the battery status. During the charging of the scooter's battery, Medium-Voltage MOSFET regulates the charging current and voltage to ensure safe charging conditions for the battery, preventing overcharging and protecting the battery from damage. Additionally, it can automatically cut off power or enter a maintenance charging state after the battery is fully charged, avoiding battery aging caused by prolonged charging. During the battery discharge process, this component adjusts the discharge current to ensure stable power output for the scooter during operation. When the battery level is too low, it can promptly cut off the power supply to prevent over-discharging of the battery, thereby extending the battery's lifespan. Medium-Voltage MOSFET plays a crucial role in ensuring the safety and stable operation of balance scooters in battery management, ultimately prolonging the battery's lifespan.

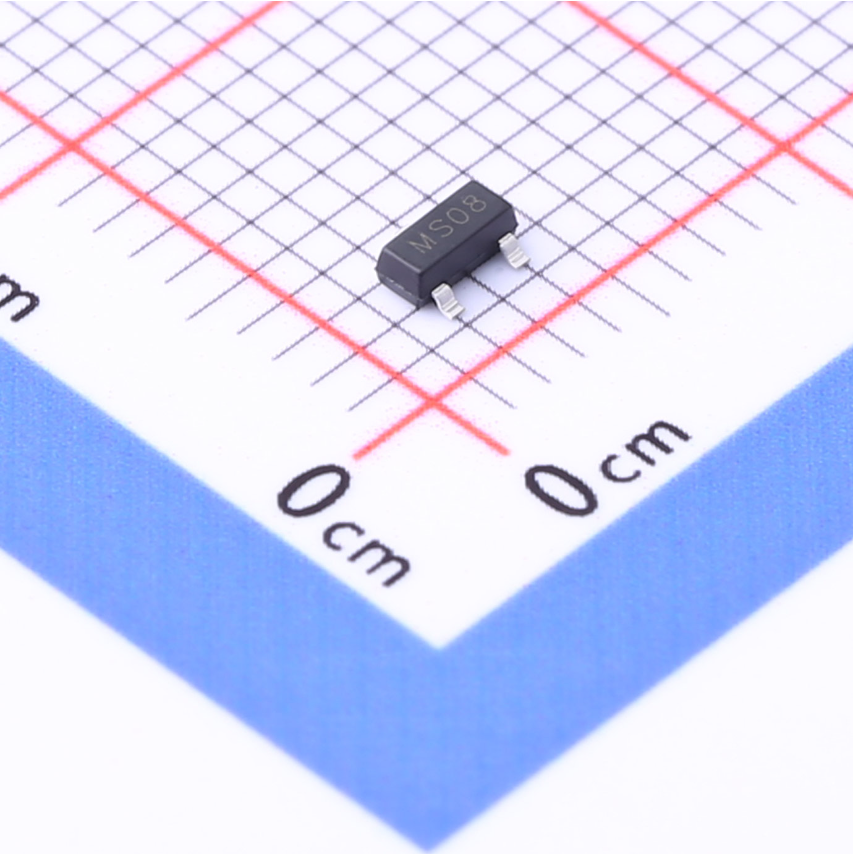

Slkor Medium Voltage MOSFET SL2308 product photo



The SL2308 is an N-channel MOSFET with a 60V drain-source voltage and a 1.8A continuous drain current. It features low on-state resistance (135mΩ@10V, 1.8A) and serves as a power electronic component known for its fast switching speed, low power consumption, and high reliability. These characteristics make it an ideal switch and signal processing component in electric balance scooter systems, especially in situations that demand high efficiency and precise control.

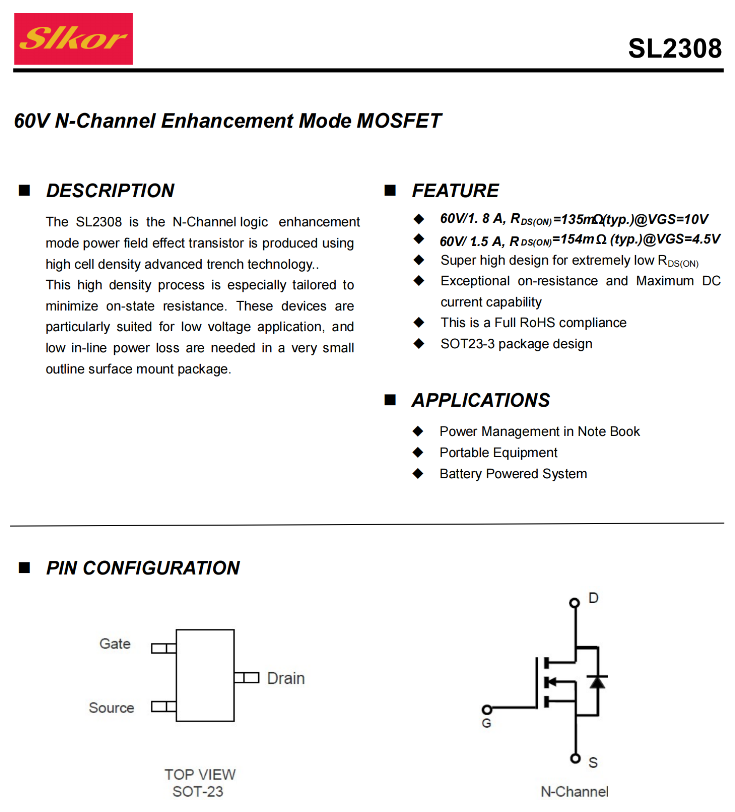

Slkor Medium Voltage MOSFET SL2308



Firstly, one of the key advantages of the Medium-Voltage MOSFET SL2308 is its ultra-high design and outstanding on-state resistance suitable for extremely low RDS(ON). When conducting, it can generate minimal resistance, thereby reducing energy losses and improving overall efficiency. This is crucial for applications that require high efficiency, low power consumption, such as electric vehicles, power management, and battery protection. Additionally, the ultra-high design ensures that the MOSFET can maintain stable operating performance even under extreme conditions of high voltage and high current, further enhancing its reliability and applicability. Secondly, another important feature of the SL2308 is its maximum DC current capability. In practical terms, this means that the MOSFET can safely handle up to 1.8A of direct current without causing overheating or damage to electronic devices.

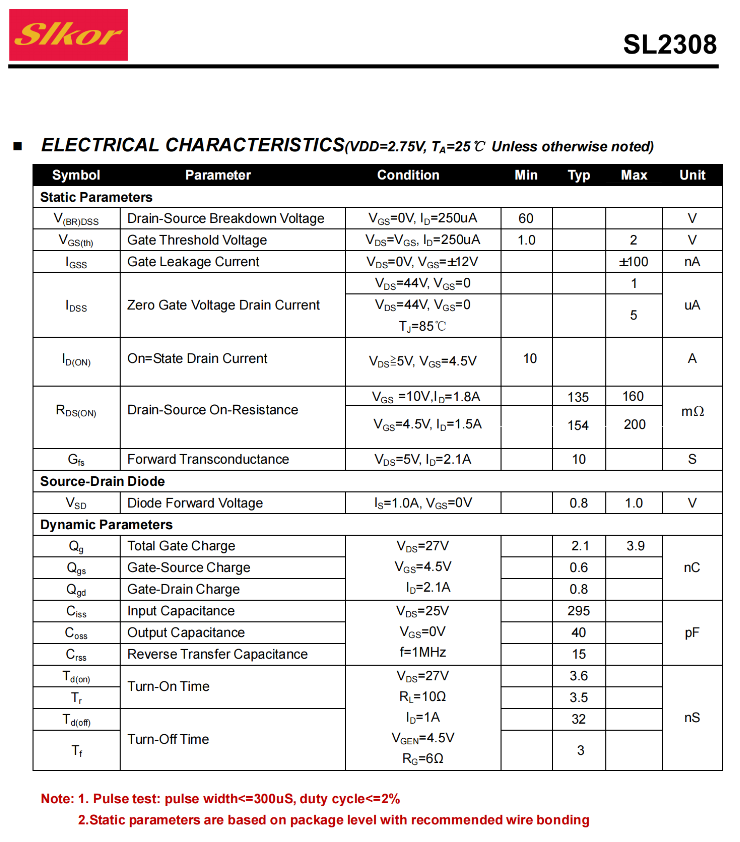

Parameters of Slkor Medium Voltage MOSFET SL2308



 With the advancement of technology and the expansion of the market, the application of Medium-Voltage MOSFET in balance car technology will continue to deepen. In the future, we can expect to see more high-performance, high-reliability Medium-Voltage MOSFET products emerging, providing strong support for the development of balance car technology. Simultaneously, as intelligent and networked technologies continue to evolve, the application of Medium-Voltage MOSFET in balance cars will become more widespread and profound, bringing more convenience and surprises to our lives.

In conclusion, as a significant representative of power electronic components, Medium-Voltage MOSFET plays a crucial role in balance car technology. By continuously optimizing and enhancing the performance and application level of Medium-Voltage MOSFET, we can drive the continuous development of balance car technology, bringing more innovation and transformation to people's way of travel. Slkor (www.slkoric.com), as a company focusing on the power semiconductor field, its products including power devices, transistors, connectors, etc., will continue to play an essential role, not only supporting the rapid development of contactless technology but also contributing to the construction of a more intelligent, convenient, and secure future life.
